1000万高清远心工业镜头 150mm物距0.3-4倍1.1"靶面C口
产品型号 (带T为同轴 无T非同轴) 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
2/3英寸 | 1英寸 | 1.1英寸 | |||||||
WP-10MS0.3X140 | 0.3 | 140 | 7.4 | ＞120 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |
WP-10MS0.3X140T | 0.3 | 140 | 7.4 | ＞100 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |

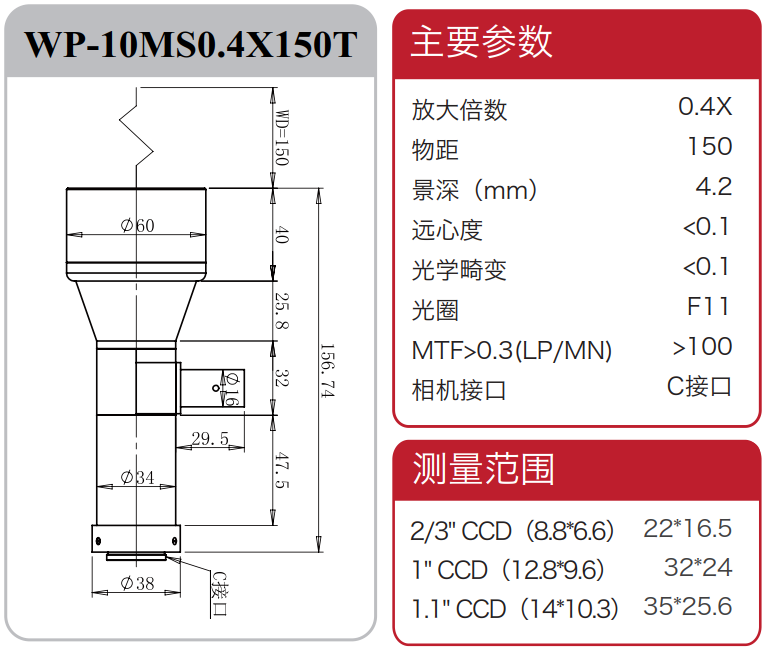

WP-10MS0.4X150 | 0.4 | 150 | 4.2 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |
WP-10MS0.4X150T | 0.4 | 150 | 4.2 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |

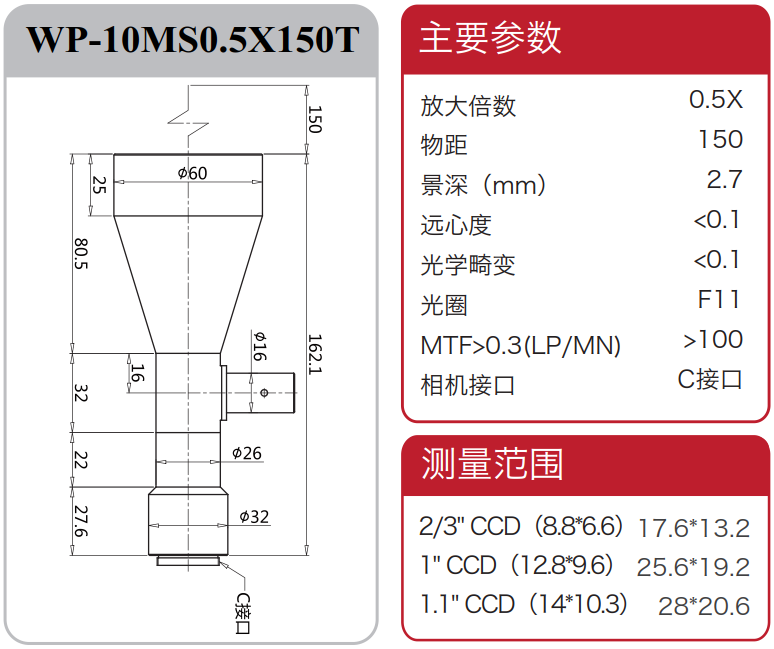

WP-10MS0.5X150 | 0.5 | 150 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |
WP-10MS0.5X150T | 0.5 | 150 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |
WP-10MS0.8X150 | 0.8 | 150 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |
WP-10MS0.8X150T | 0.8 | 150 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |

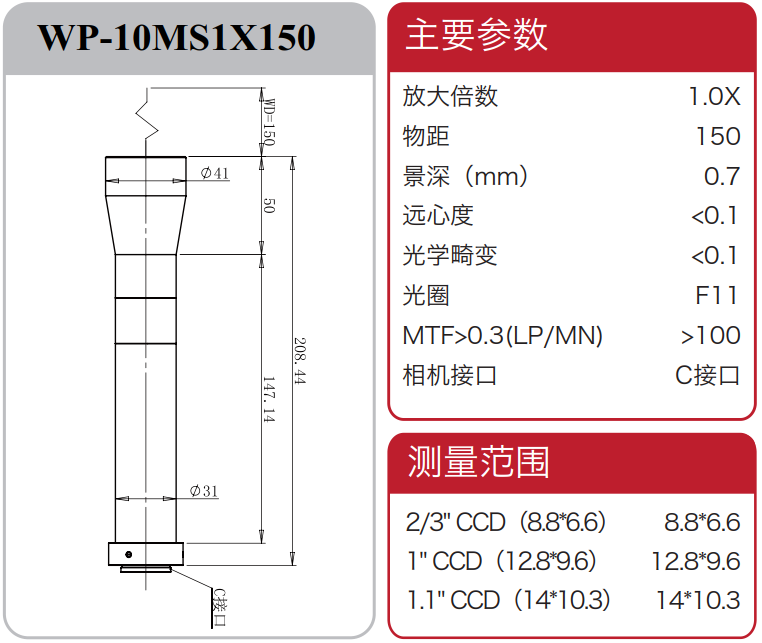

WP-10MS1X150 | 1 | 150 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |
WP-10MS1X150T | 1 | 150 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |

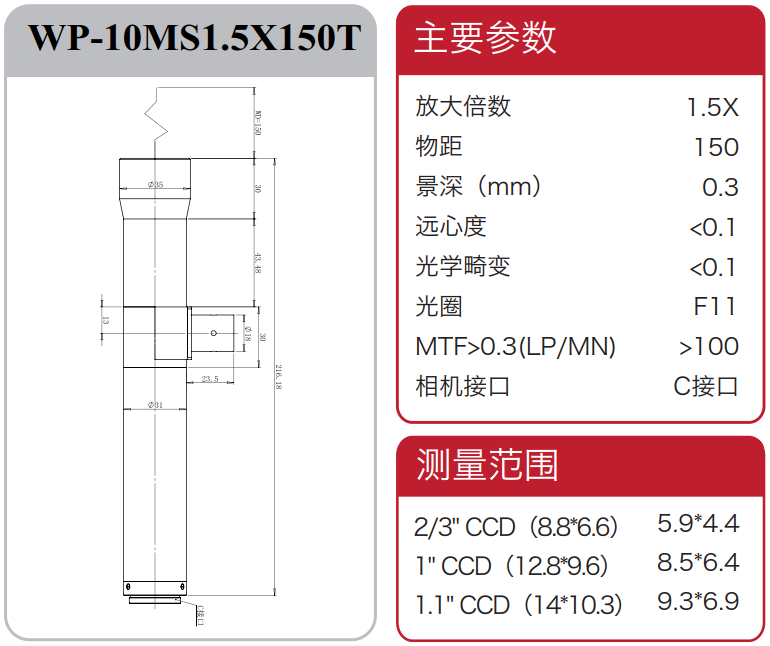

WP-10MS1.5X150 | 1.5 | 150 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS1.5X150T | 1.5 | 150 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS2X150 | 2 | 150 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |
WP-10MS2X150T | 2 | 150 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |

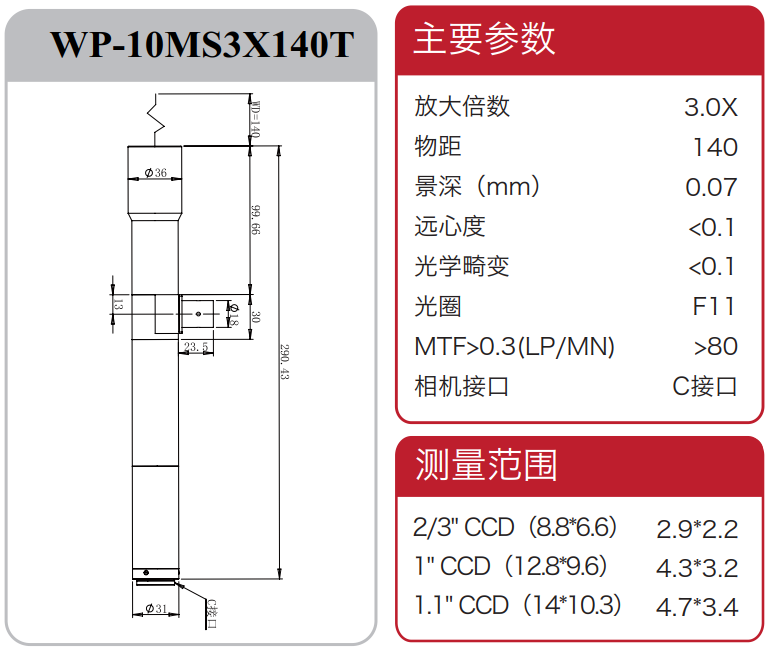

WP-10MS3X140 | 3 | 140 | 0.07 | ＞80 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |
WP-10MS3X140T | 3 | 140 | 0.07 | ＞80 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |
WP-10MS4X140 | 4 | 140 | 0.04 | ＞80 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |
WP-10MS4X140T | 4 | 140 | 0.04 | ＞80 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |
