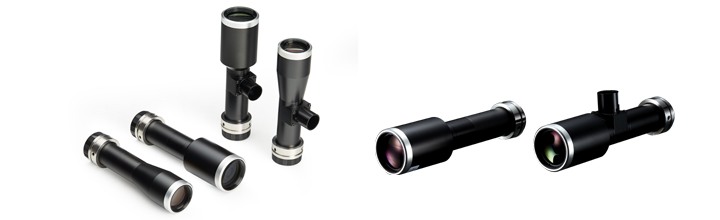

1000万高清远心工业镜头 110mm物距1.1"靶面0.3-8倍C口
产品型号 (带T为同轴 无T非同轴) 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
2/3英寸 | 1英寸 | 1.1英寸 | |||||||

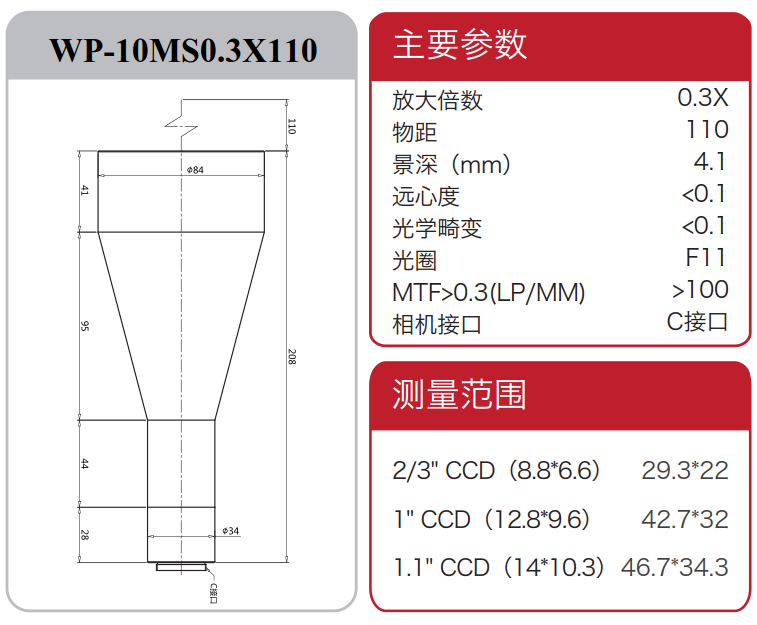

WP-10MS0.3X110 | 0.3 | 110 | 4.5 | ＞100 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |
WP-10MS0.3X110T | 0.3 | 110 | 4.5 | ＞100 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |

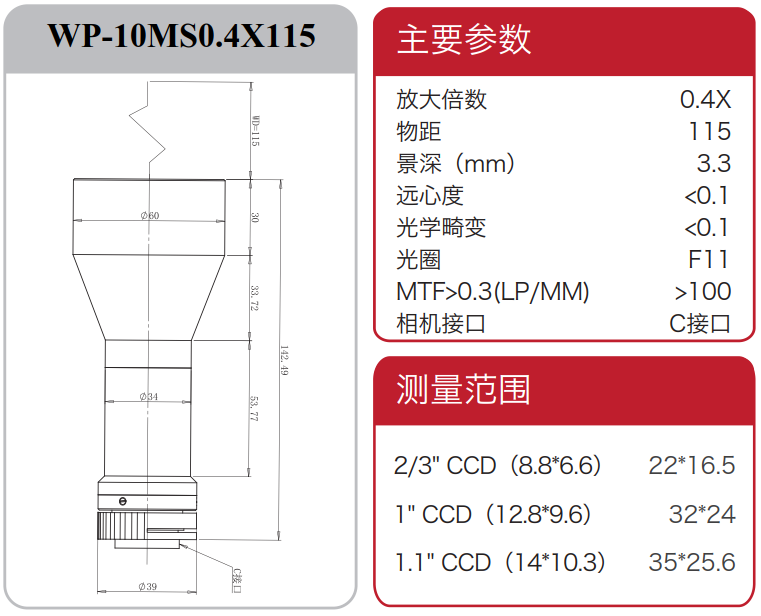

WP-10MS0.4X115 | 0.4 | 115 | 3.3 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |

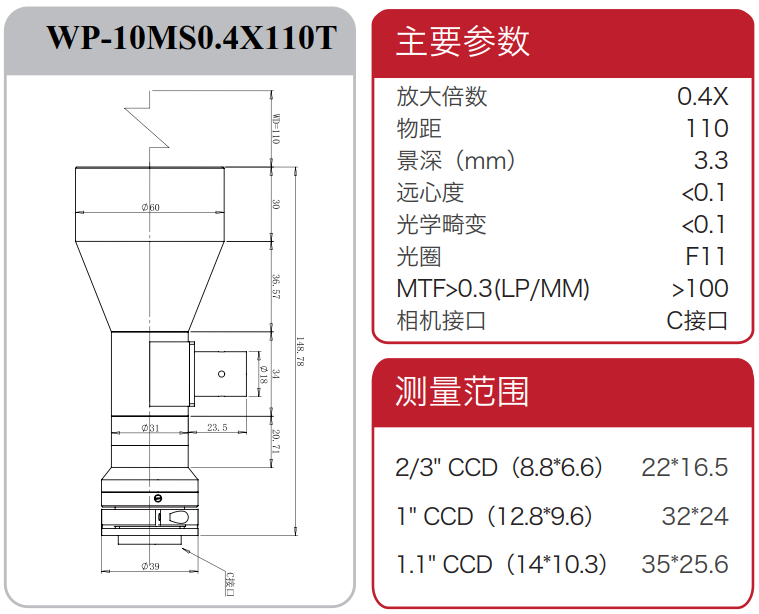

WP-10MS0.4X110T | 0.4 | 110 | 3.3 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |
WP-10MS0.5X110 | 0.5 | 110 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |

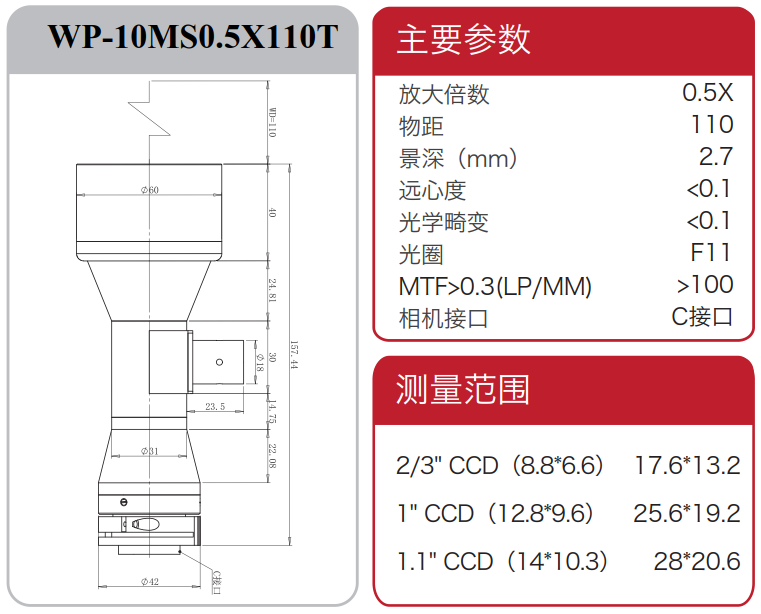

WP-10MS0.5X110T | 0.5 | 110 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |

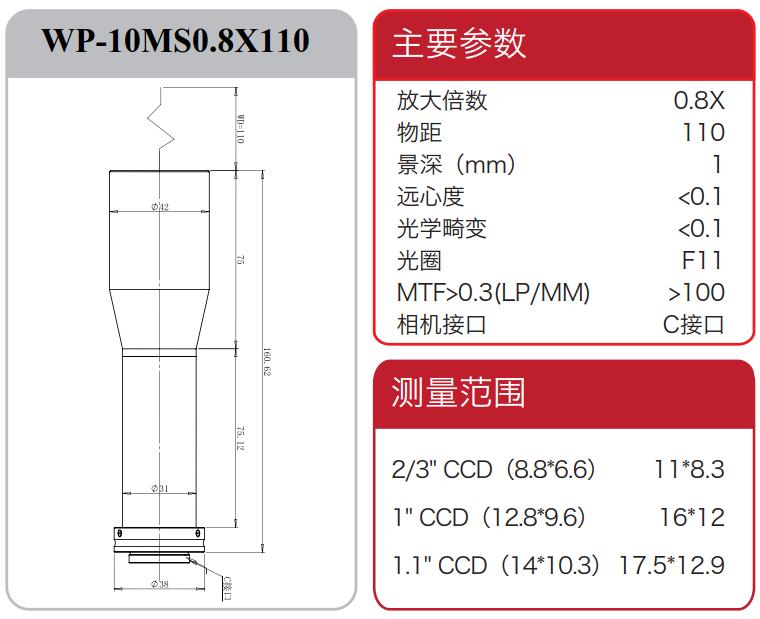

WP-10MS0.8X110 | 0.8 | 110 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |

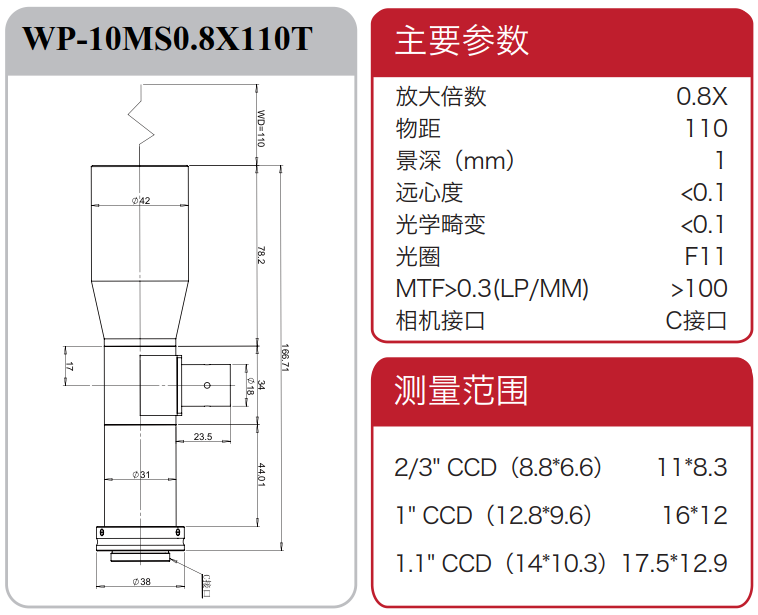

WP-10MS0.8X110T | 0.8 | 110 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |

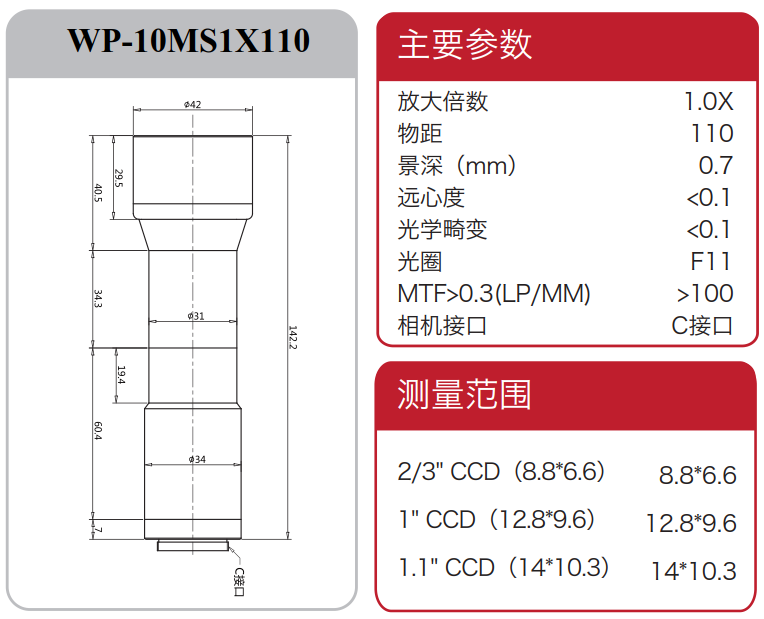

WP-10MS1X110 | 1 | 110 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |

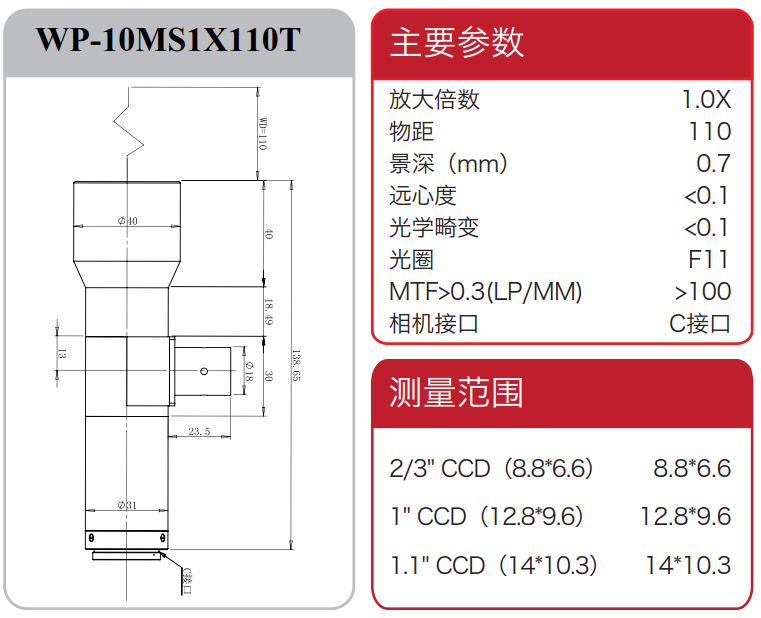

WP-10MS1X110T | 1 | 110 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |

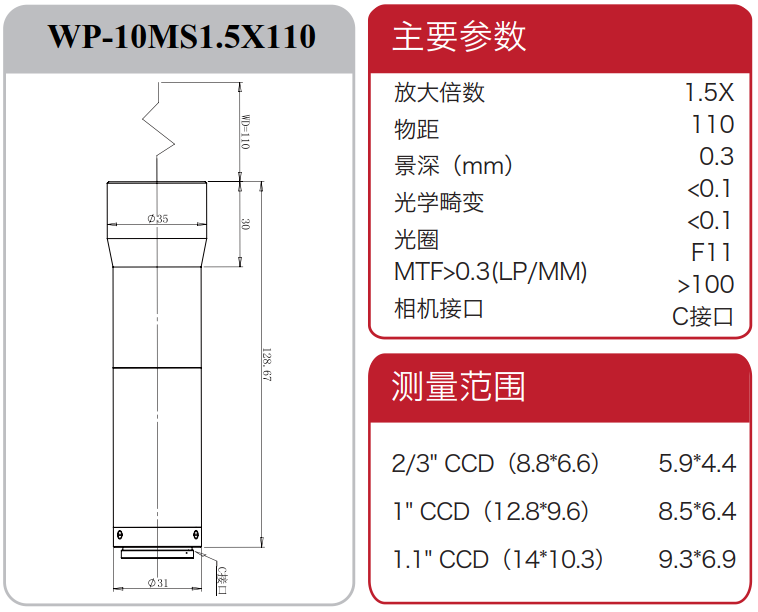

WP-10MS1.5X110 | 1.5 | 110 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS1.5X110T | 1.5 | 110 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS2X110 | 2 | 110 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |

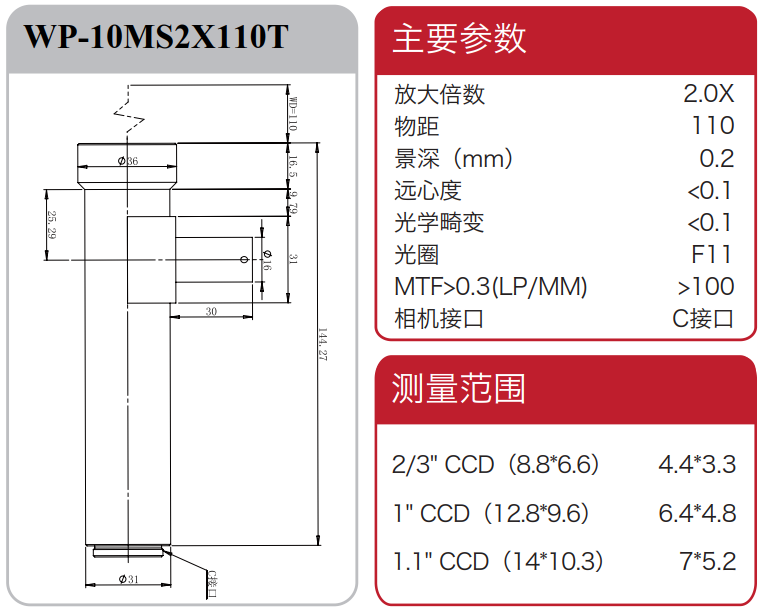

WP-10MS2X110T | 2 | 110 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |
WP-10MS2.5X100 | 2.5 | 100 | 0.1 | ＞100 | ＜0.1 | ＜0.1 | 3.5×2.6 | 5.1×3.8 | 5.6×4.1 |

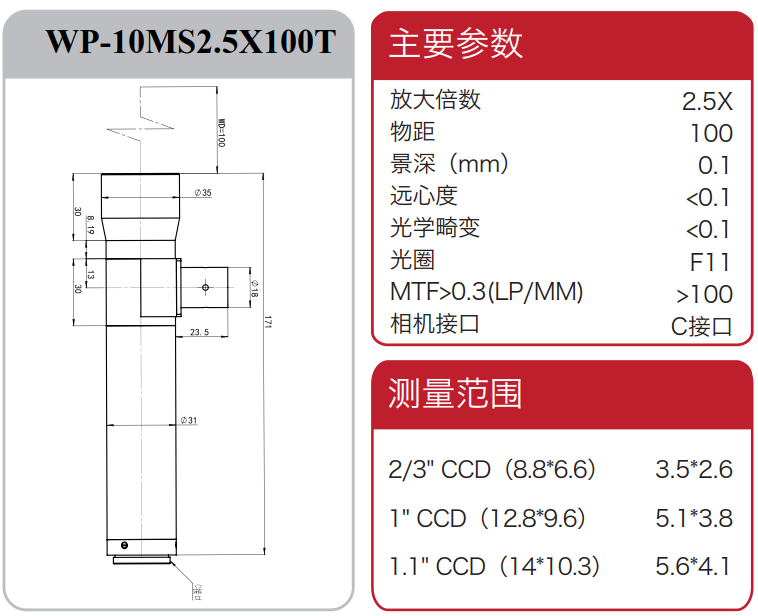

WP-10MS2.5X100T | 2.5 | 100 | 0.1 | ＞100 | ＜0.1 | ＜0.1 | 3.5×2.6 | 5.1×3.8 | 5.6×4.1 |
WP-10MS3X110 | 3 | 110 | 0.07 | ＞100 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |

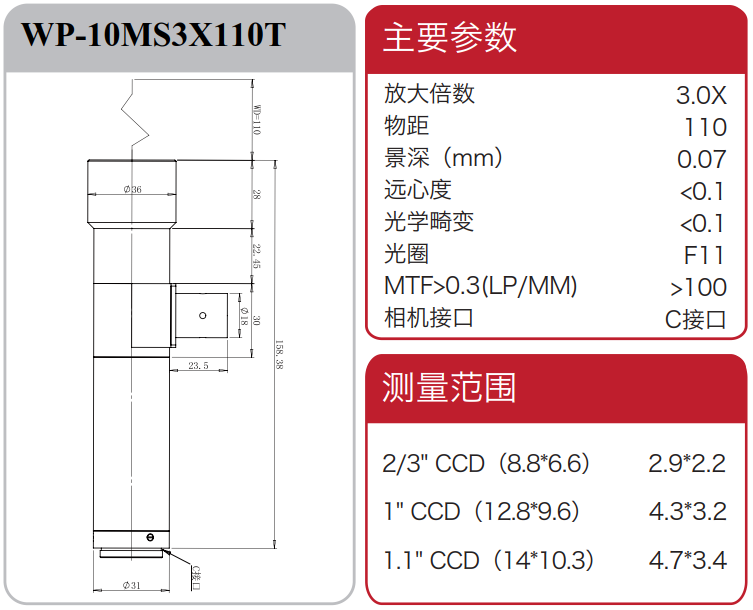

WP-10MS3X110T | 3 | 110 | 0.07 | ＞100 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |

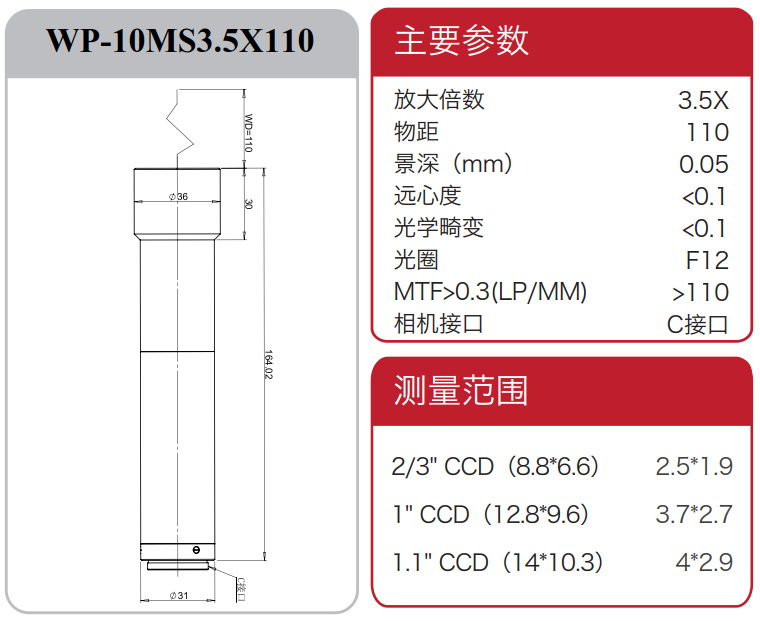

WP-10MS3.5X110 | 3.5 | 110 | 0.05 | ＞110 | ＜0.1 | ＜0.1 | 2.5×1.9 | 3.7×2.7 | 4×2.9 |

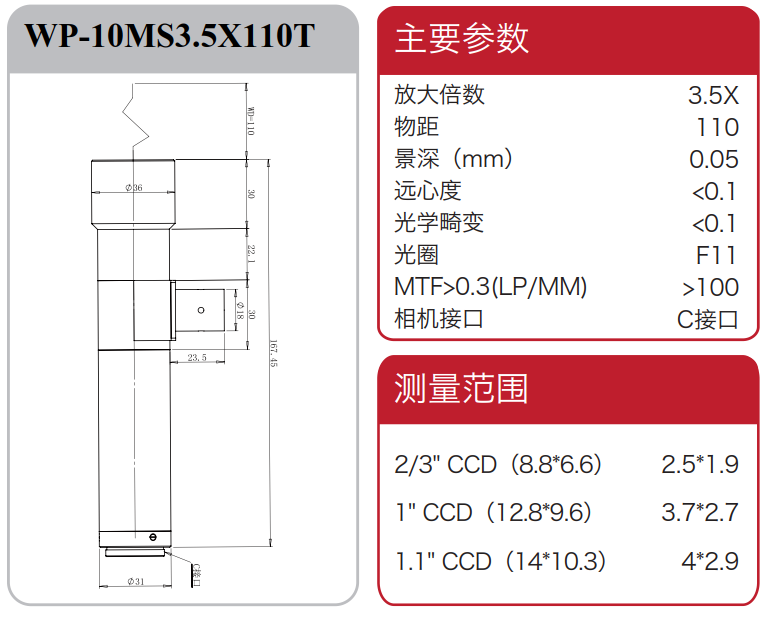

WP-10MS3.5X110T | 3.5 | 110 | 0.05 | ＞110 | ＜0.1 | ＜0.1 | 2.5×1.9 | 3.7×2.7 | 4×2.9 |

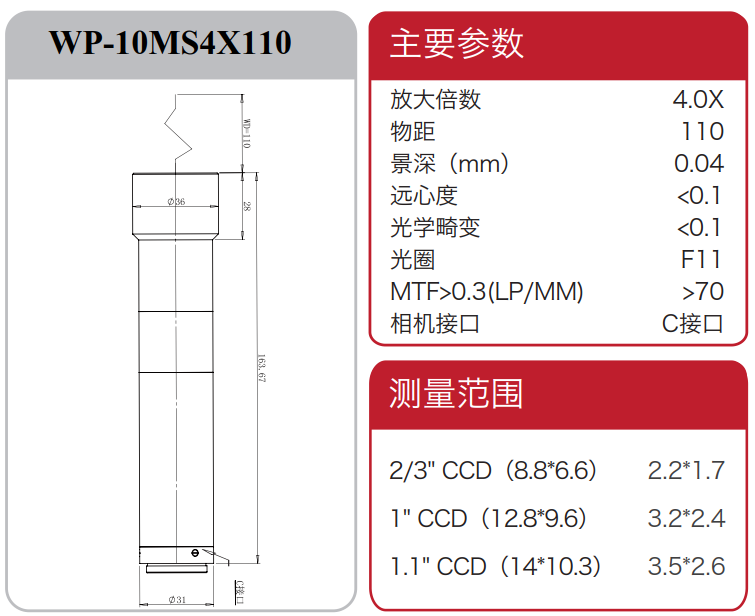

WP-10MS4X110 | 4 | 110 | 0.04 | ＞70 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |

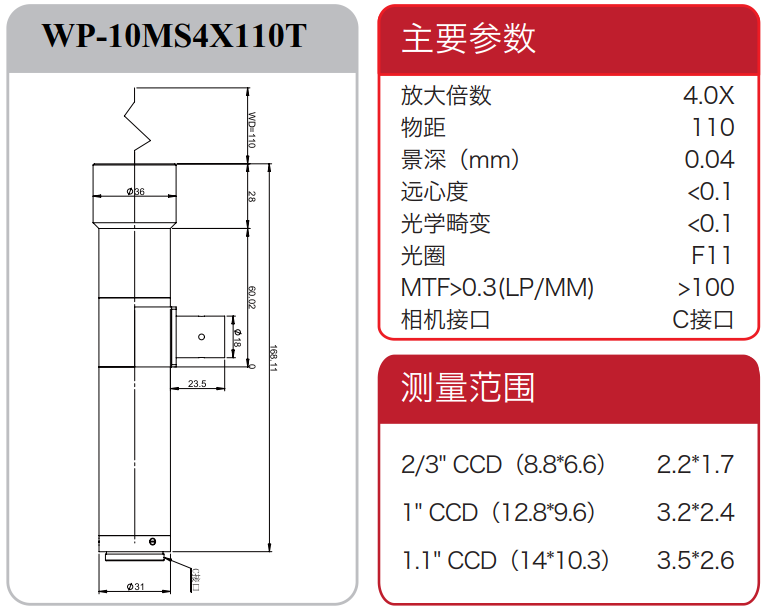

WP-10MS4X110T | 4 | 110 | 0.04 | ＞70 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |
WP-10MS4.5X110 | 4.5 | 110 | 0.03 | ＞60 | ＜0.1 | ＜0.1 | 2×1.5 | 2.8×2.1 | 3.1×2.3 |

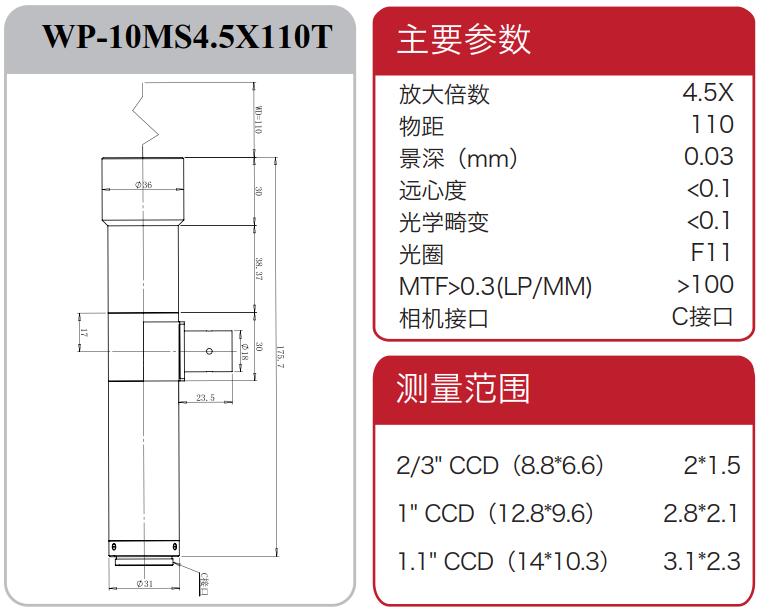

WP-10MS4.5X110T | 4.5 | 110 | 0.03 | ＞60 | ＜0.1 | ＜0.1 | 2×1.5 | 2.8×2.1 | 3.1×2.3 |

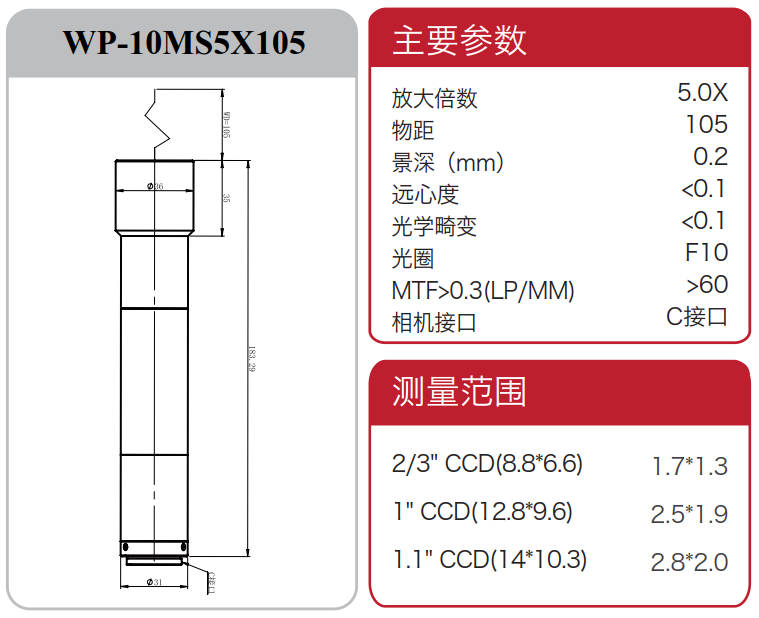

WP-10MS5X105 | 5 | 105 | 0.02 | ＞60 | ＜0.1 | ＜0.1 | 1.8×1.3 | 2.6×1.9 | 2.8×2.1 |
WP-10MS5X105T | 5 | 105 | 0.02 | ＞60 | ＜0.1 | ＜0.1 | 1.8×1.3 | 2.6×1.9 | 2.8×2.1 |
WP-10MS6X110 | 6 | 110 | 0.02 | ＞50 | ＜0.1 | ＜0.1 | 1.5×1.1 | 2.1×1.6 | 2.3×1.7 |

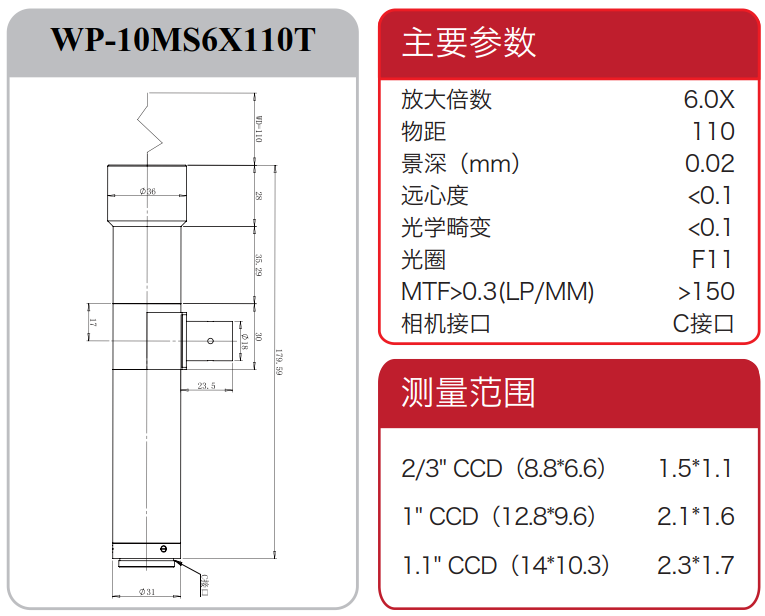

WP-10MS6X110T | 6 | 110 | 0.02 | ＞50 | ＜0.1 | ＜0.1 | 1.5×1.1 | 2.1×1.6 | 2.3×1.7 |
WP-10MS8X110 | 8 | 110 | 0.01 | ＞40 | ＜0.1 | ＜0.1 | 1.1×0.8 | 1.6×1.2 | 1.8×1.3 |

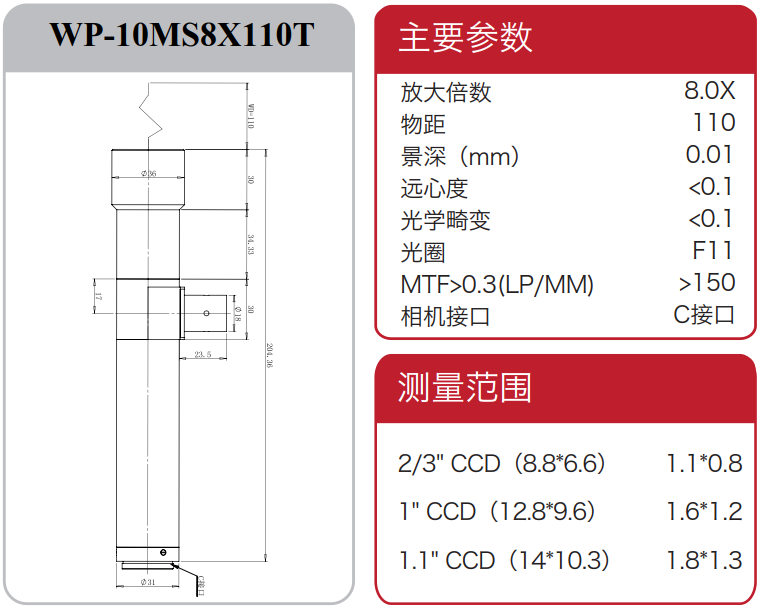

WP-10MS8X110T | 8 | 110 | 0.01 | ＞40 | ＜0.1 | ＜0.1 | 1.1×0.8 | 1.6×1.2 | 1.8×1.3 |
