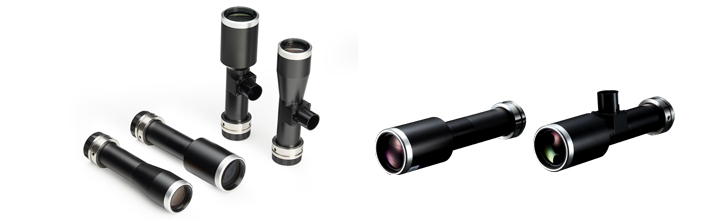

1000万级高清远心工业镜头 65mm物距1.1"大靶面0.3-12倍C口
产品型号 (带T为同轴 无T非同轴) 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
2/3英寸 | 1英寸 | 1.1英寸 | |||||||
WP-10MS0.3X65 | 0.3 | 65 | 4.2 | ＞100 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |
WP-10MS0.3X65T | 0.3 | 65 | 4.2 | ＞100 | ＜0.1 | ＜0.1 | 29.3×22 | 42.7×32 | 46.7×34.3 |
WP-10MS0.4X65 | 0.4 | 65 | 3.2 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |
WP-10MS0.4X65T | 0.4 | 65 | 3.2 | ＞100 | ＜0.1 | ＜0.1 | 22×16.5 | 32×24 | 35×25.6 |

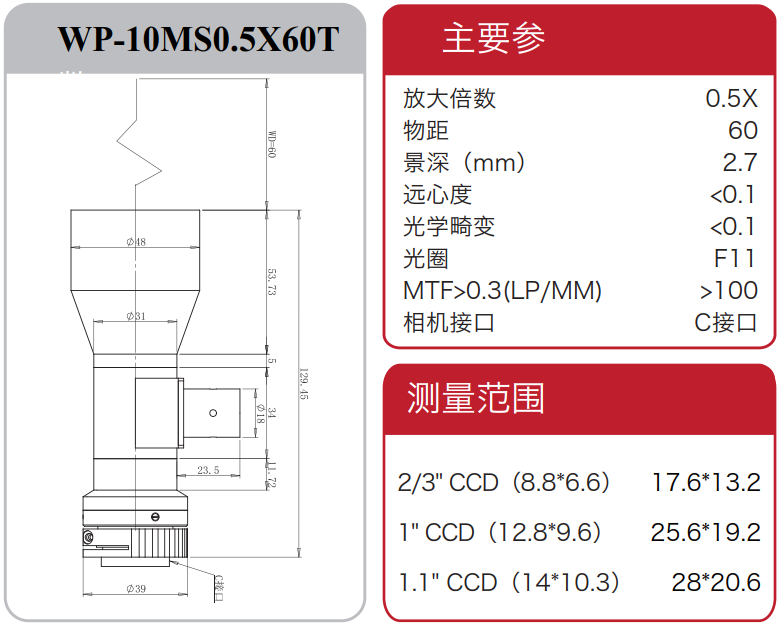

WP-10MS0.5X60 | 0.5 | 60 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |
WP-10MS0.5X60T | 0.5 | 60 | 2.7 | ＞100 | ＜0.1 | ＜0.1 | 17.6×13.2 | 25.6×19.2 | 28×20.6 |
WP-10MS0.8X65 | 0.8 | 65 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |
WP-10MS0.8X65T | 0.8 | 65 | 1 | ＞100 | ＜0.1 | ＜0.1 | 11×8.3 | 16×12 | 17.5×12.9 |
WP-10MS1X65 | 1 | 65 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |
WP-10MS1X65T | 1 | 65 | 0.7 | ＞100 | ＜0.1 | ＜0.1 | 8.8×6.6 | 12.8×9.6 | 14×10.3 |
WP-10MS1.5X65 | 1.5 | 65 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS1.5X65T | 1.5 | 65 | 0.3 | ＞100 | ＜0.1 | ＜0.1 | 5.9×4.4 | 8.5×6.4 | 9.3×6.9 |
WP-10MS2X65 | 2 | 65 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |
WP-10MS2X65T | 2 | 65 | 0.2 | ＞100 | ＜0.1 | ＜0.1 | 4.4×3.3 | 6.4×4.8 | 7×5.2 |
WP-10MS2.5X65 | 2.5 | 65 | 0.1 | ＞100 | ＜0.1 | ＜0.1 | 3.5×2.6 | 5.1×3.8 | 5.6×4.1 |
WP-10MS2.5X65T | 2.5 | 65 | 0.1 | ＞100 | ＜0.1 | ＜0.1 | 3.5×2.6 | 5.1×3.8 | 5.6×4.1 |
WP-10MS3X65 | 3 | 65 | 0.07 | ＞100 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |
WP-10MS3X65T | 3 | 65 | 0.07 | ＞100 | ＜0.1 | ＜0.1 | 2.9×2.2 | 4.3×3.2 | 4.7×3.4 |

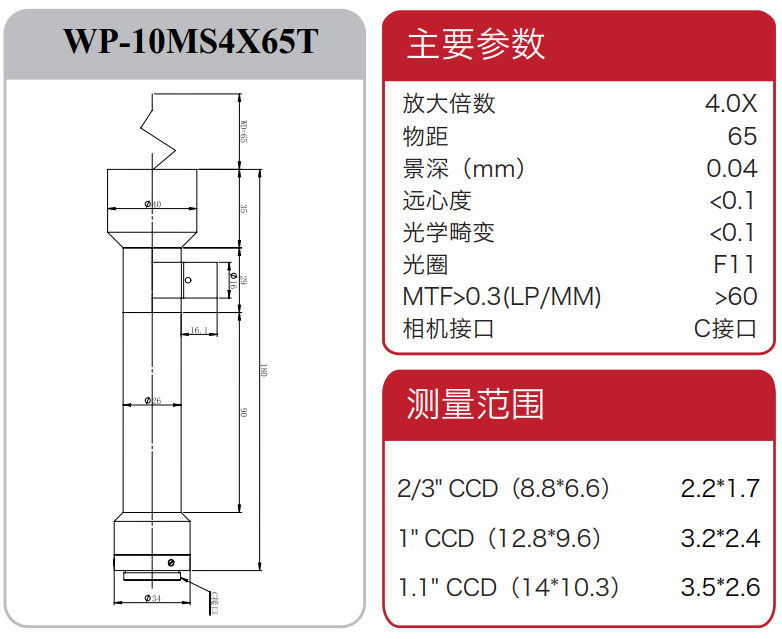

WP-10MS4X65 | 4 | 65 | 0.04 | ＞60 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |
WP-10MS4X65T | 4 | 65 | 0.04 | ＞60 | ＜0.1 | ＜0.1 | 2.2×1.7 | 3.2×2.4 | 3.5×2.6 |
WP-10MS5X65 | 5 | 65 | 0.03 | ＞60 | ＜0.1 | ＜0.1 | 1.8×1.3 | 2.6×1.9 | 2.8×2.1 |
WP-10MS5X65T | 5 | 65 | 0.03 | ＞60 | ＜0.1 | ＜0.1 | 1.8×1.3 | 2.6×1.9 | 2.8×2.1 |
WP-10MS6X65 | 6 | 65 | 0.02 | ＞60 | ＜0.1 | ＜0.1 | 1.5×1.1 | 2.1×1.6 | 2.3×1.7 |
WP-10MS6X65T | 6 | 65 | 0.02 | ＞60 | ＜0.1 | ＜0.1 | 1.5×1.1 | 2.1×1.6 | 2.3×1.7 |
WP-10MS10X65 | 10 | 65 | 0.02 | ＞50 | ＜0.1 | ＜0.1 | 0.88×0.66 | 1.28×0.96 | 1.4×1.03 |
WP-10MS10X65T | 10 | 65 | 0.02 | ＞50 | ＜0.1 | ＜0.1 | 0.88×0.66 | 1.28×0.96 | 1.4×1.03 |
WP-10MS12X65 | 12 | 65 | 0.02 | ＞40 | ＜0.1 | ＜0.1 | 0.73×0.55 | 1×0.8 | 1.16×0.85 |
WP-10MS12X65T | 12 | 65 | 0.02 | ＞40 | ＜0.1 | ＜0.1 | 0.73×0.55 | 1×0.8 | 1.16×0.85 |
