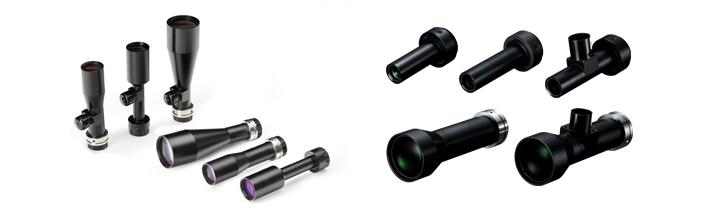

高清远心工业镜头150mm物距 2/3英寸0.3-10倍低畸变C口
产品型号 (带T为同轴 无T非同轴) 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
1/3英寸 | 1/2英寸 | 2/3英寸 | |||||||
WP-H0.3X150 | 0.3 | 150 | 7.4 | 3 | ＜0.1 | ＜0.1 | 16*12 | 21.3*16 | 29.3*22 |
WP-H0.3X150T | 0.3 | 150 | 7.4 | 3 | ＜0.1 | ＜0.1 | 16*12 | 21.3*16 | 29.3*22 |

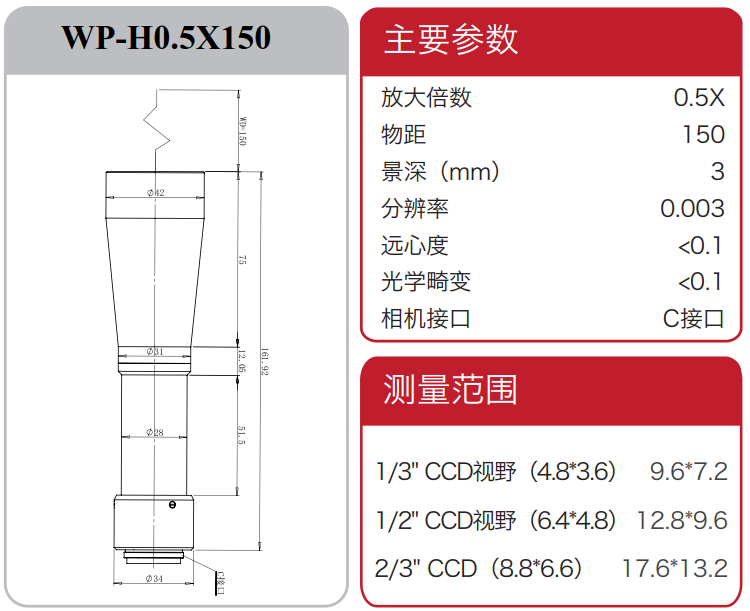

WP-H0.5X150 | 0.5 | 150 | 3 | 3 | ＜0.1 | ＜0.1 | 9.6*7.2 | 12.8*9.6 | 17.6*13.2 |
WP-H0.5X150T | 0.5 | 150 | 3 | 3 | ＜0.1 | ＜0.1 | 9.6*7.2 | 12.8*9.6 | 17.6*13.2 |

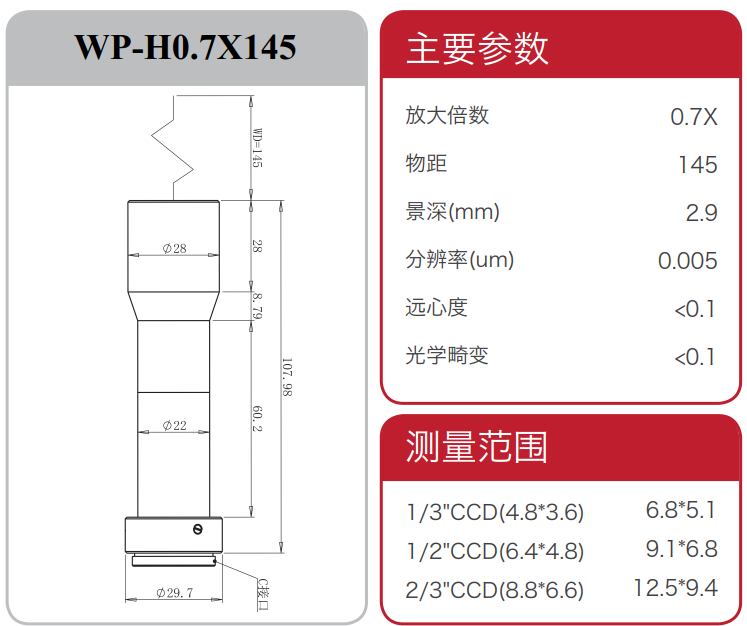

WP-H0.7X145 | 0.7 | 145 | 2.9 | 5 | ＜0.1 | ＜0.1 | 6.8*5.1 | 9.1*6.8 | 12.5*9.4 |

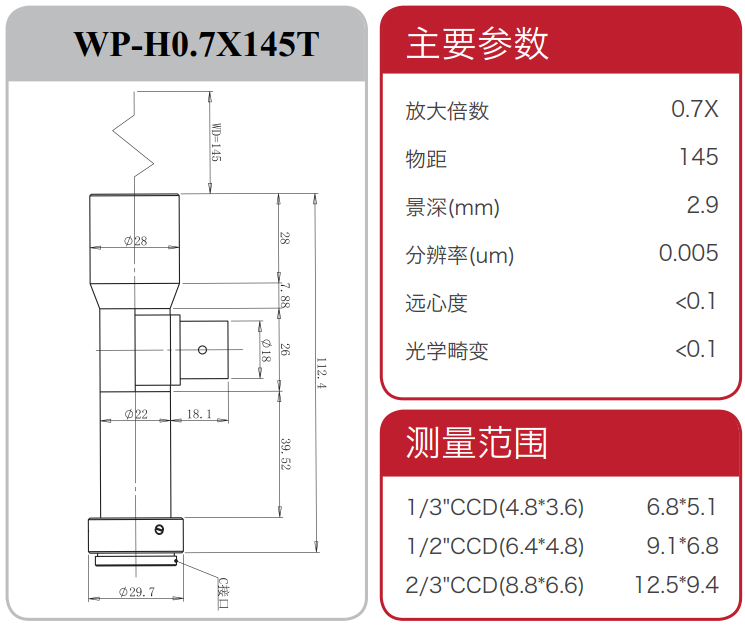

WP-H0.7X145T | 0.7 | 145 | 2.9 | 5 | ＜0.1 | ＜0.1 | 6.8*5.1 | 9.1*6.8 | 12.5*9.4 |
WP-H0.8X150 | 0.8 | 150 | 1 | 5 | ＜0.1 | ＜0.1 | 6*4.5 | 8*6 | 11*8.3 |
WP-H0.8X150T | 0.8 | 150 | 1 | 5 | ＜0.1 | ＜0.1 | 6*4.5 | 8*6 | 11*8.3 |
WP-H1X150 | 1 | 150 | 1.7 | 5 | ＜0.1 | ＜0.1 | 4.8*3.6 | 6.4*4.8 | 8.8*6.6 |
WP-H1X150T | 1 | 150 | 1.7 | 5 | ＜0.1 | ＜0.1 | 4.8*3.6 | 6.4*4.8 | 8.8*6.6 |
WP-H1.5X150 | 1.5 | 150 | 1.1 | 5 | ＜0.1 | ＜0.1 | 3.2*2.4 | 4.2*3.2 | 5.8*4.4 |

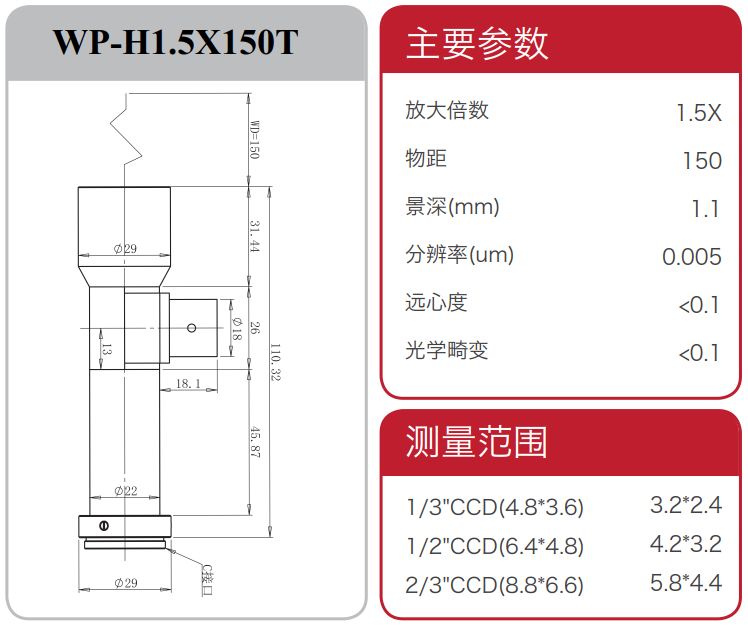

WP-H1.5X150T | 1.5 | 150 | 1.1 | 5 | ＜0.1 | ＜0.1 | 3.2*2.4 | 4.2*3.2 | 5.8*4.4 |
WP-H2X150 | 2 | 150 | 0.9 | 5 | ＜0.1 | ＜0.1 | 2.4*1.8 | 3.2*2.4 | 4.4*3.3 |
WP-H2X150T | 2 | 150 | 0.9 | 5 | ＜0.1 | ＜0.1 | 2.4*1.8 | 3.2*2.4 | 4.4*3.3 |
WP-H3X150 | 3 | 150 | 0.07 | 3 | ＜0.1 | ＜0.1 | 1.6*1.2 | 2.1*1.6 | 2.9*2.2 |

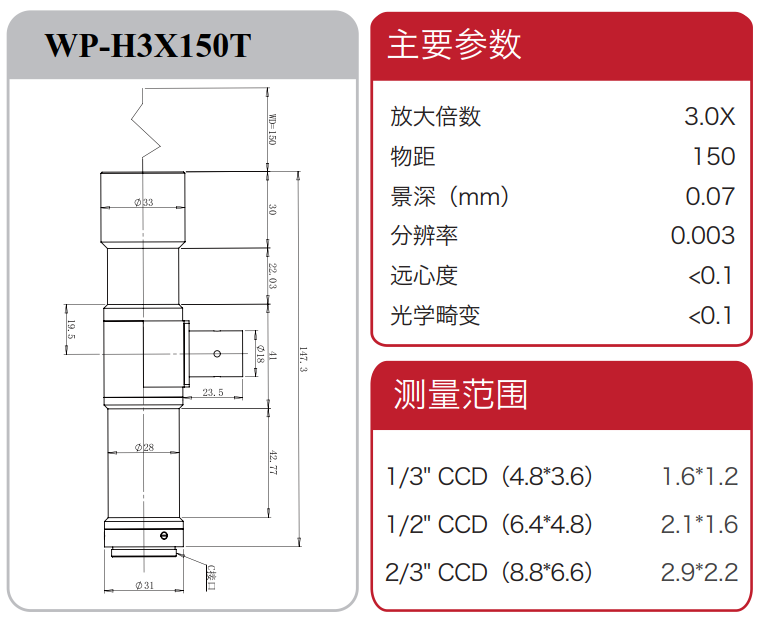

WP-H3X150T | 3 | 150 | 0.07 | 3 | ＜0.1 | ＜0.1 | 1.6*1.2 | 2.1*1.6 | 2.9*2.2 |
WP-H4X150 | 4 | 150 | 0.6 | 5 | ＜0.1 | ＜0.1 | 1.2*0.9 | 1.6*1.2 | 2.2*1.7 |

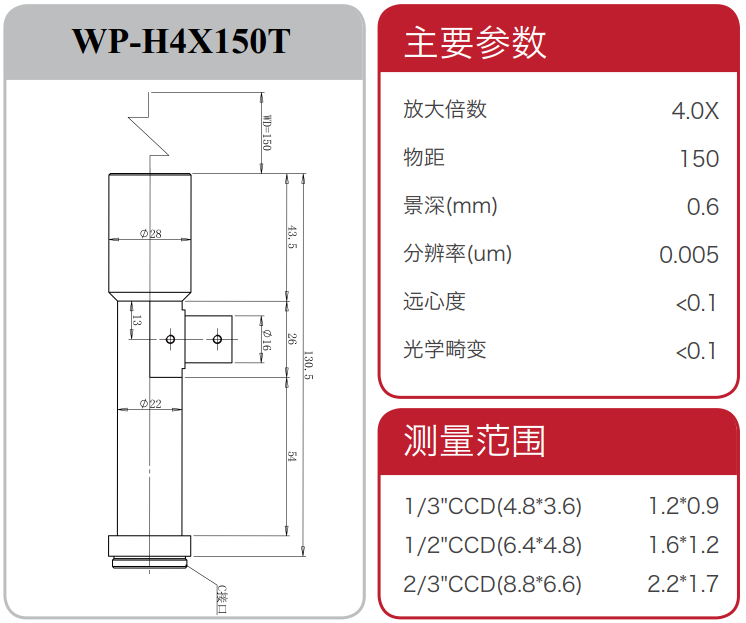

WP-H4X150T | 4 | 150 | 0.6 | 5 | ＜0.1 | ＜0.1 | 1.2*0.9 | 1.6*1.2 | 2.2*1.7 |

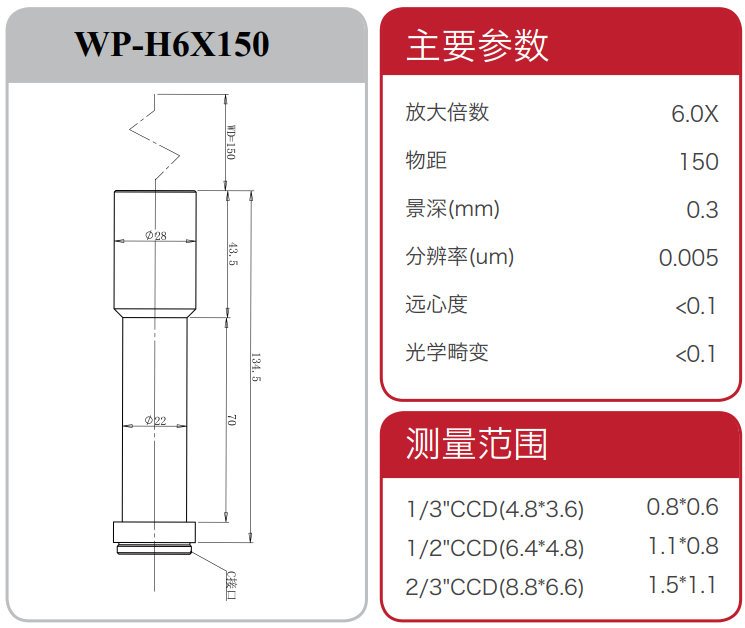

WP-H6X150 | 6 | 150 | 0.3 | 5 | ＜0.1 | ＜0.1 | 0.8*0.6 | 1.1*0.8 | 1.5*1.1 |

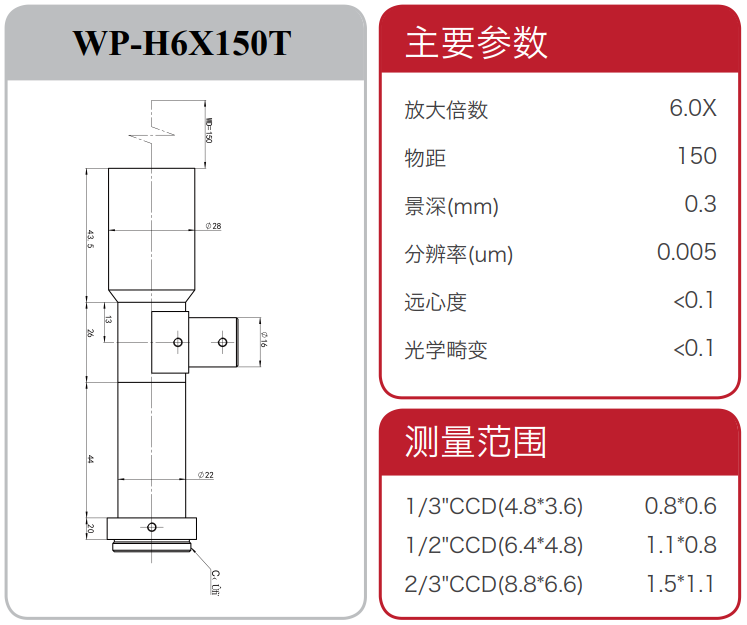

WP-H6X150T | 6 | 150 | 0.3 | 5 | ＜0.1 | ＜0.1 | 0.8*0.6 | 1.1*0.8 | 1.5*1.1 |
WP-H8X153 | 8 | 153 | 0.05 | 3 | ＜0.1 | ＜0.1 | 0.6*0.45 | 0.8*0.6 | 1.1*0.8 |
WP-H8X153T | 8 | 153 | 0.05 | 3 | ＜0.1 | ＜0.1 | 0.6*0.45 | 0.8*0.6 | 1.1*0.8 |
WP-H10X153 | 10 | 153 | 0.03 | 3 | ＜0.1 | ＜0.1 | 0.48*0.36 | 0.64*0.48 | 0.88*0.66 |
WP-H10X153T | 10 | 153 | 0.03 | 3 | ＜0.1 | ＜0.1 | 0.48*0.36 | 0.64*0.48 | 0.88*0.66 |
