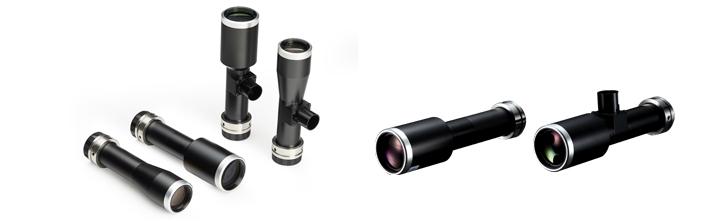

500万高清远心工业镜头108mm物距2/3英寸1-10X低畸变C口
产品型号 (带T为同轴 无T非同轴) 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
1/2英寸 | 1/1.8英寸 | 2/3英寸 | |||||||

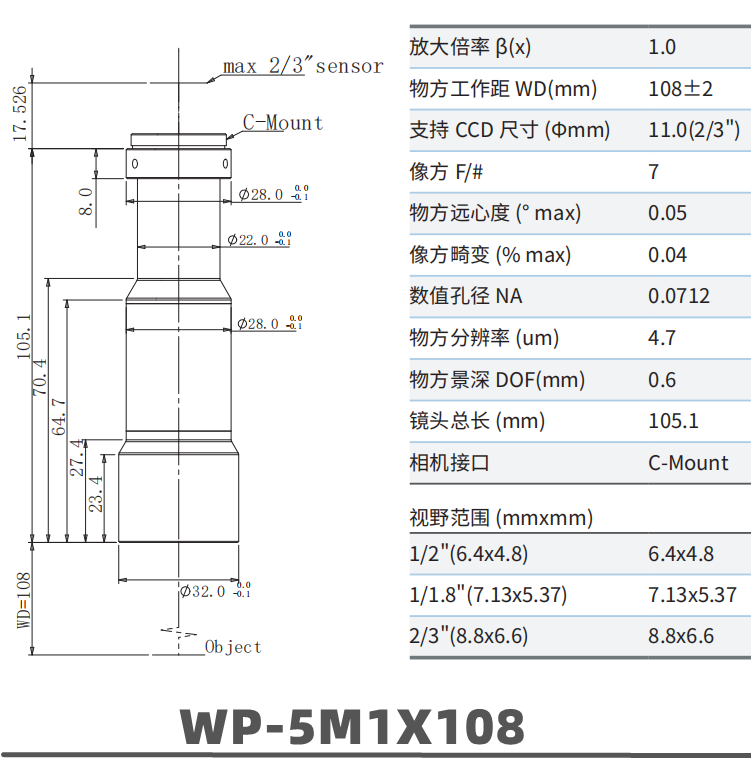

WP-5M1X108 | 1 | 108 | 0.6 | 4.7 | 0.05 | 0.04 | 6.4*4.8 | 7.13*5.37 | 8.8*6.6 |

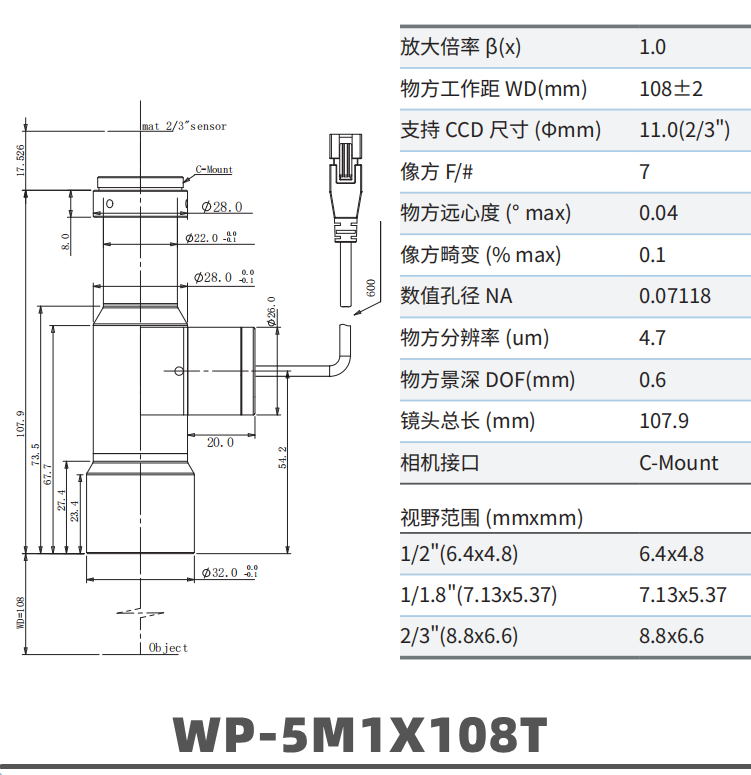

WP-5M1X108T | 1 | 108 | 0.6 | 4.7 | 0.04 | 0.1 | 6.4*4.8 | 7.13*5.37 | 8.8*6.6 |

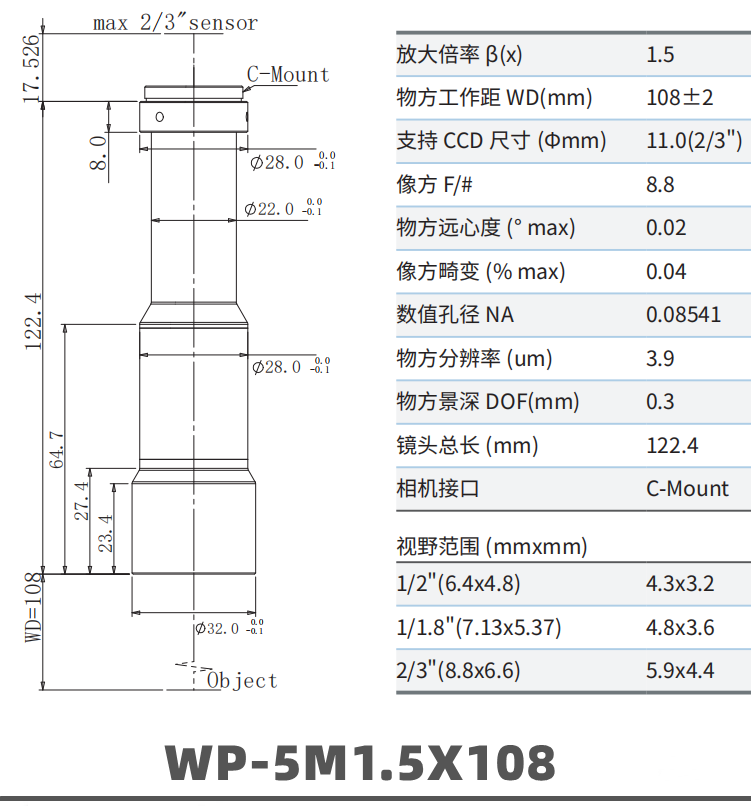

WP-5M1.5X108 | 1.5 | 108 | 0.3 | 3.9 | 0.02 | 0.04 | 4.3*3.2 | 4.8*3.6 | 5.9*4.4 |

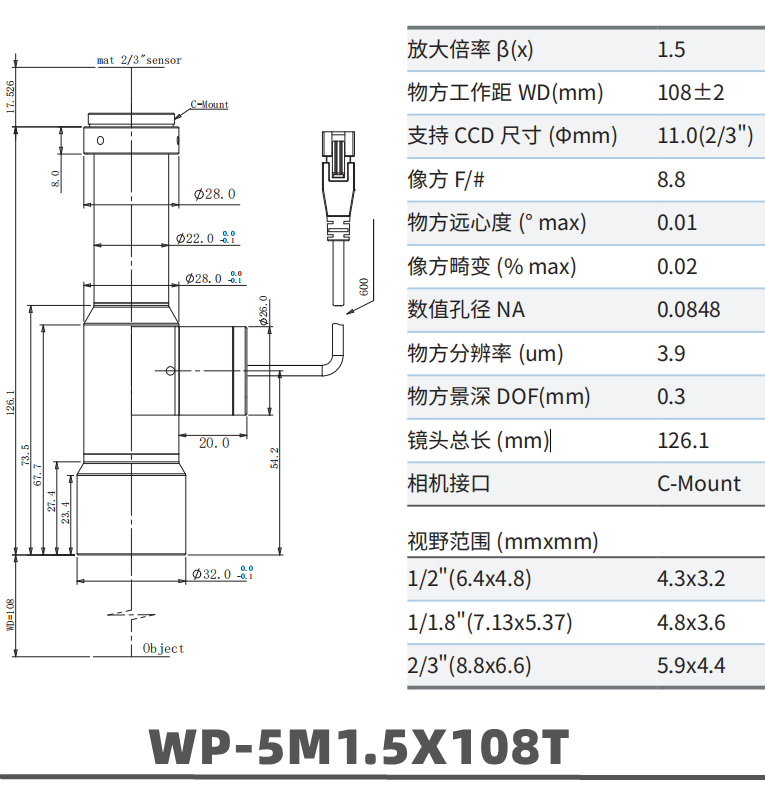

WP-5M1.5X108T | 1.5 | 108 | 0.3 | 4.0 | 0.01 | 0.02 | 4.3*3.2 | 4.8*3.6 | 5.9*4.4 |

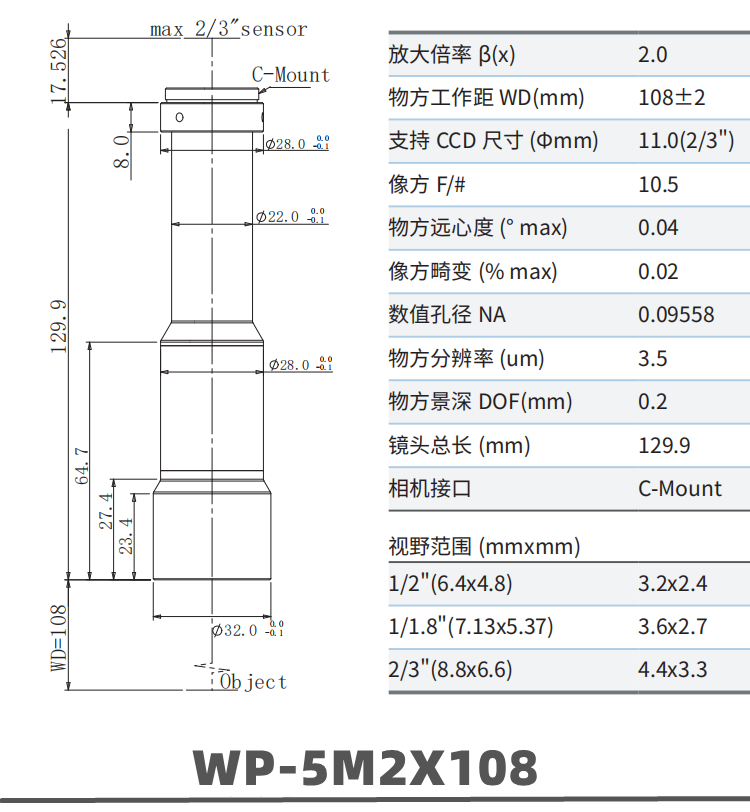

WP-5M2X108 | 2 | 108 | 0.2 | 3.5 | 0.04 | 0.02 | 3.2*2.4 | 3.6*2.7 | 4.4*3.3 |

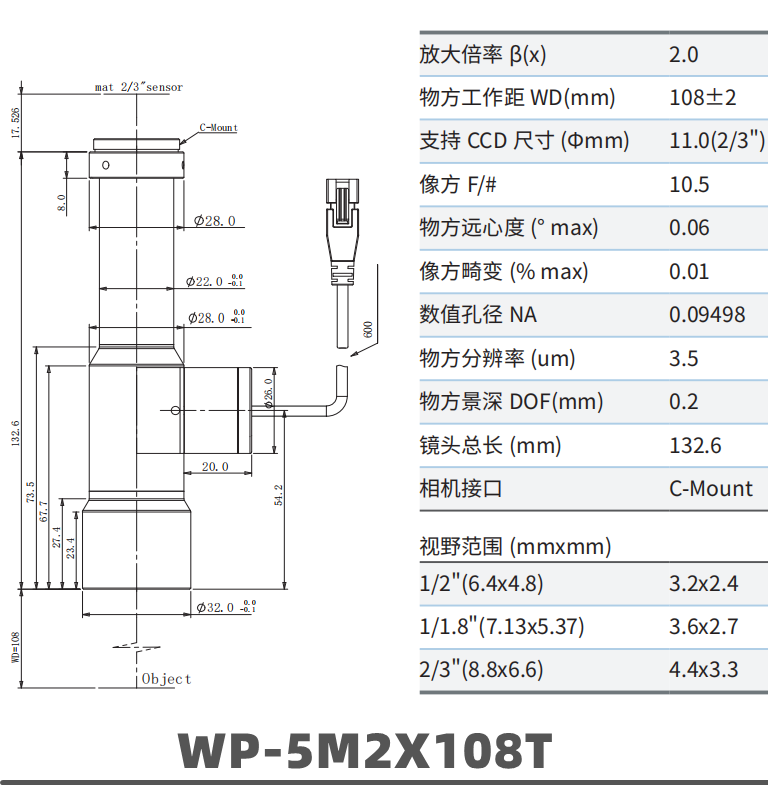

WP-5M2X108T | 2 | 108 | 0.2 | 3.5 | 0.06 | 0.01 | 3.2*2.4 | 3.6*2.7 | 4.4*3.3 |

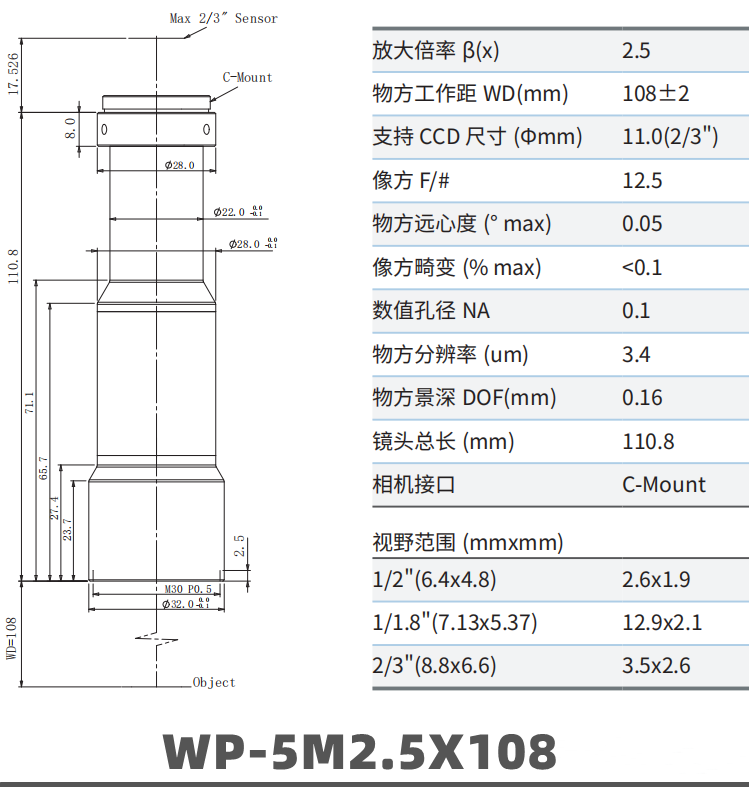

WP-5M2.5X108 | 2.5 | 108 | 0.16 | 3.4 | 0.05 | 0.1 | 2.6*1.9 | 2.9*2.1 | 3.5*2.6 |

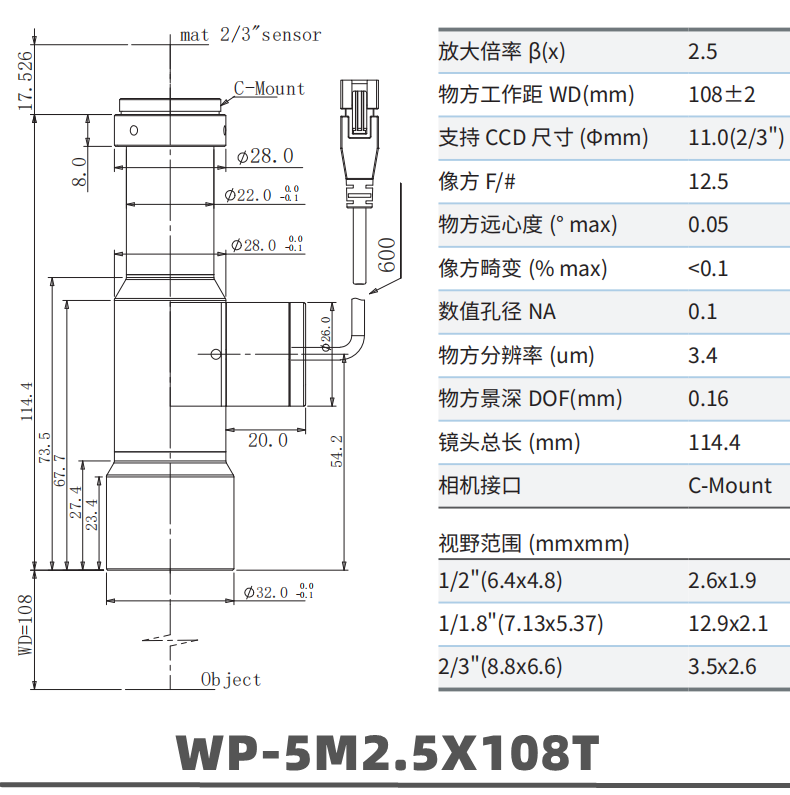

WP-5M2.5X108T | 2.5 | 108 | 0.16 | 3.4 | 0.05 | 0.1 | 2.6*1.9 | 2.9*2.1 | 3.5*2.6 |

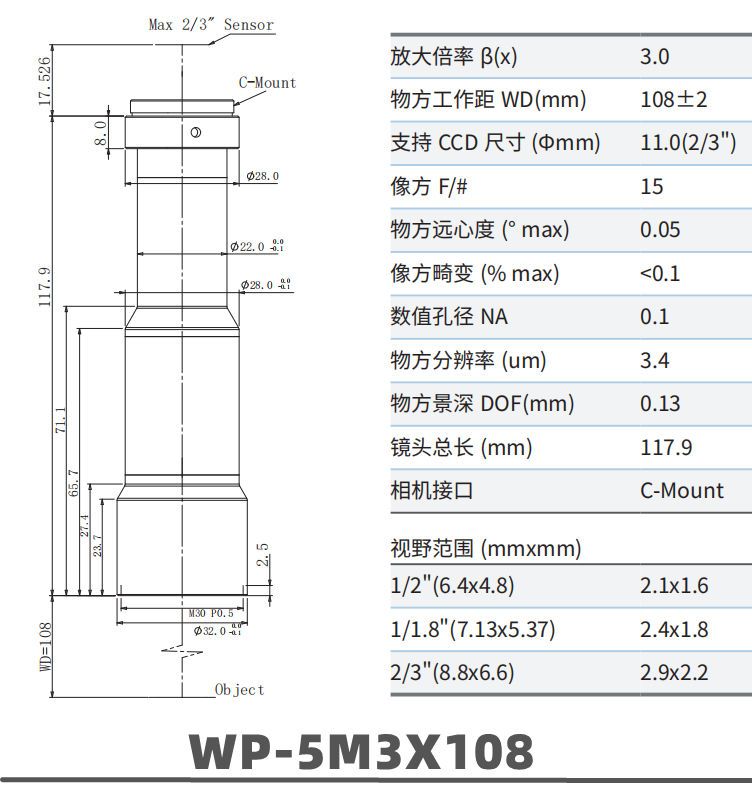

WP-5M3X108 | 3 | 108 | 0.13 | 3.4 | 0.05 | 0.1 | 2.1*1.6 | 2.4*1.8 | 2.9*2.2 |

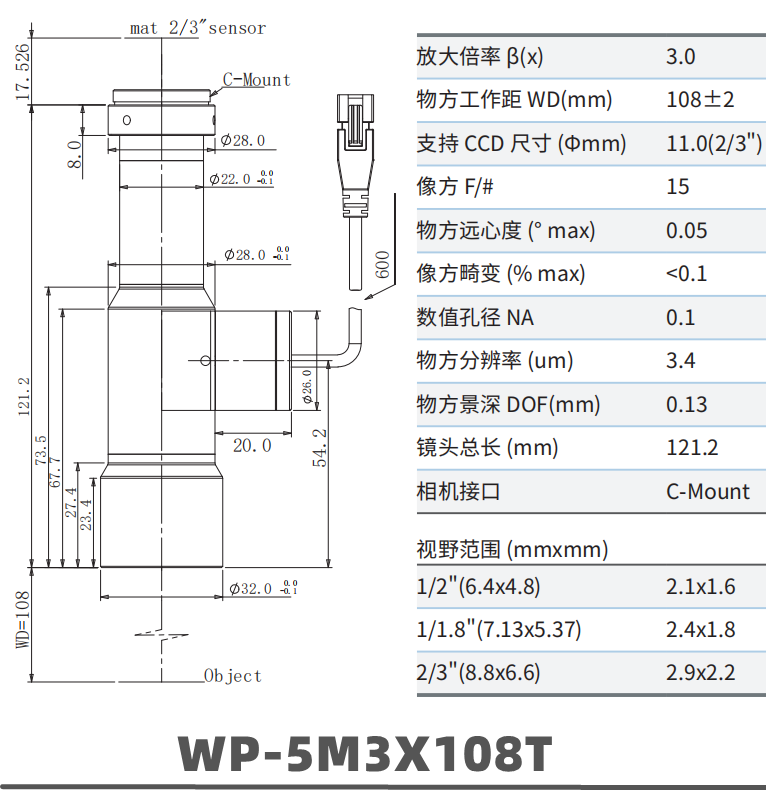

WP-5M3X108T | 3 | 108 | 0.13 | 3.4 | 0.05 | 0.1 | 2.1*1.6 | 2.4*1.8 | 2.9*2.2 |

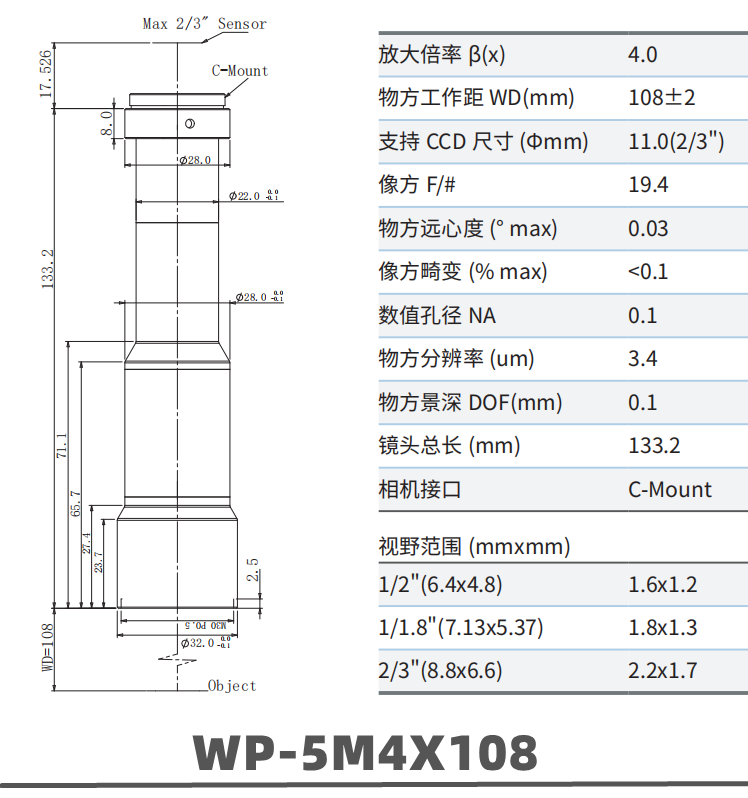

WP-5M4X108 | 4 | 108 | 0.1 | 3.4 | 0.03 | 0.1 | 1.6*1.2 | 1.8*1.3 | 2.2*1.7 |

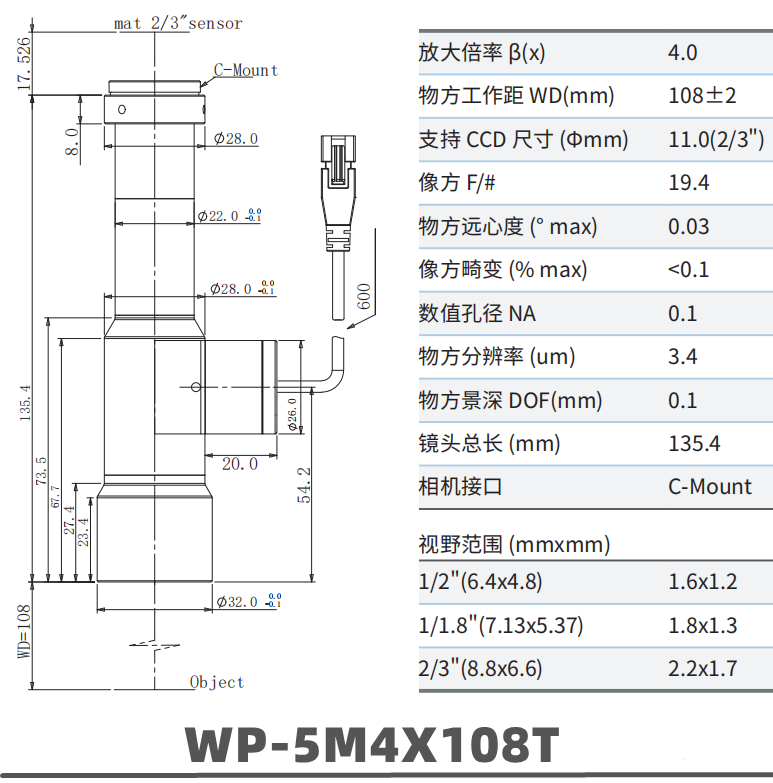

WP-5M4X108T | 4 | 108 | 0.1 | 3.4 | 0.03 | 0.1 | 1.6*1.2 | 1.8*1.3 | 2.2*1.7 |

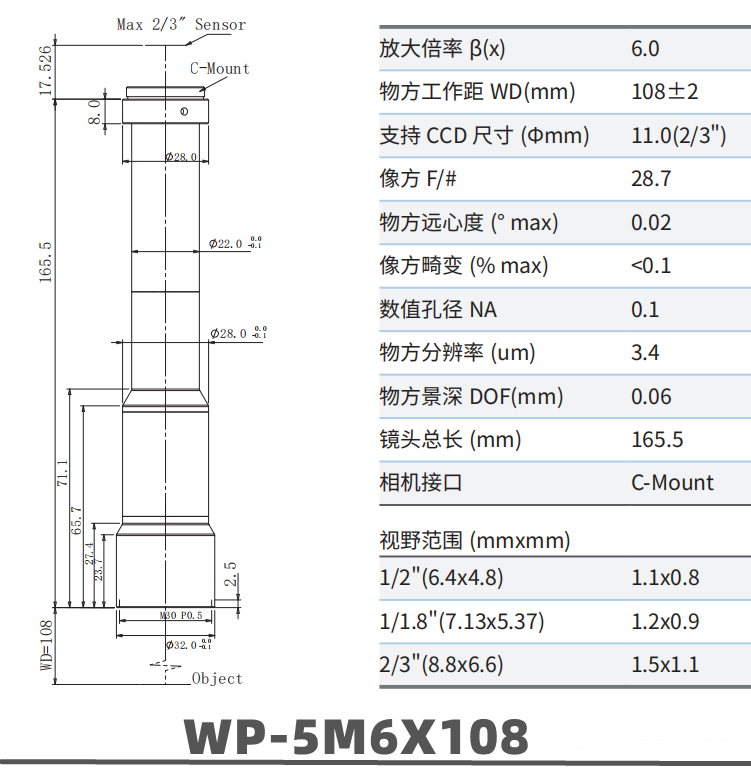

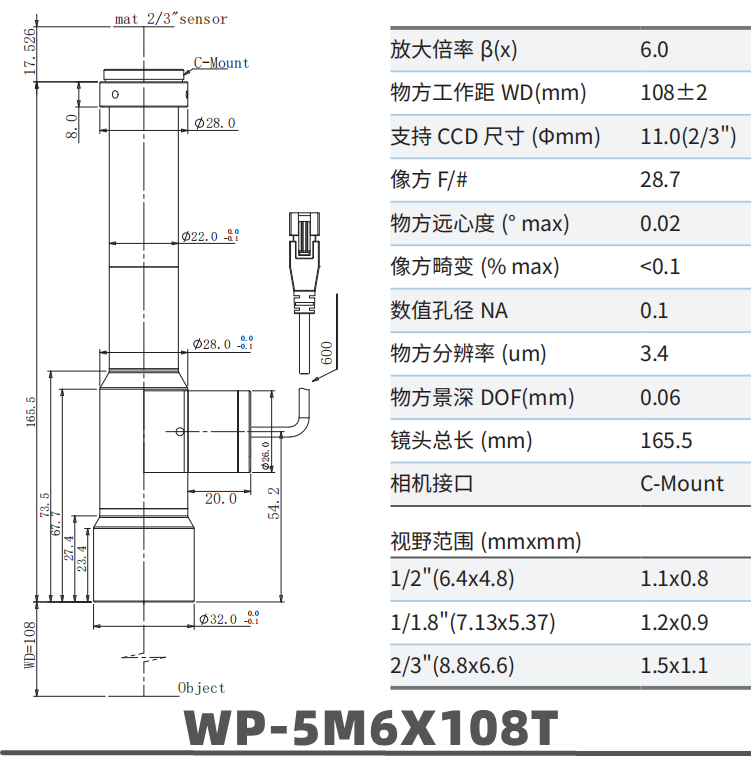

WP-5M6X108 | 6 | 108 | 0.06 | 3.4 | 0.02 | 0.1 | 1.06*0.89 | 1.2*0.9 | 1.5*1.1 |
WP-5M6X108T | 6 | 108 | 0.06 | 3.4 | 0.02 | 0.1 | 1.06*0.89 | 1.2*0.9 | 1.5*1.1 |

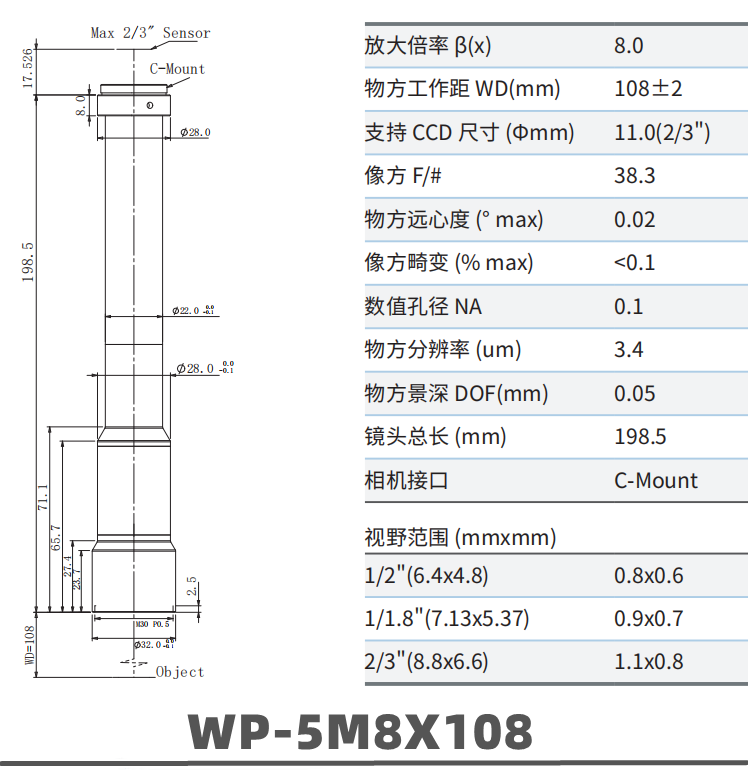

WP-5M8X108 | 8 | 108 | 0.05 | 3.4 | 0.02 | 0.1 | 0.8*0.6 | 0.9*0.7 | 1.1*0.8 |
WP-5M8X108T | 8 | 108 | 0.05 | 3.4 | 0.02 | 0.1 | 0.8*0.6 | 0.9*0.7 | 1.1*0.8 |

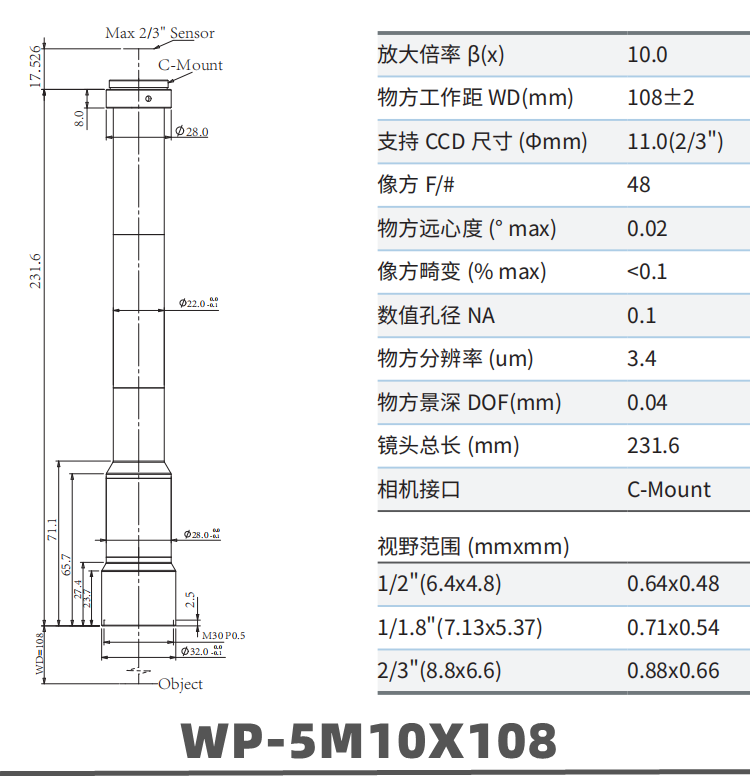

WP-5M10X108 | 10 | 108 | 0.04 | 3.4 | 0.02 | 0.1 | 0.64*0.48 | 0.71*0.54 | 0.88*0.66 |

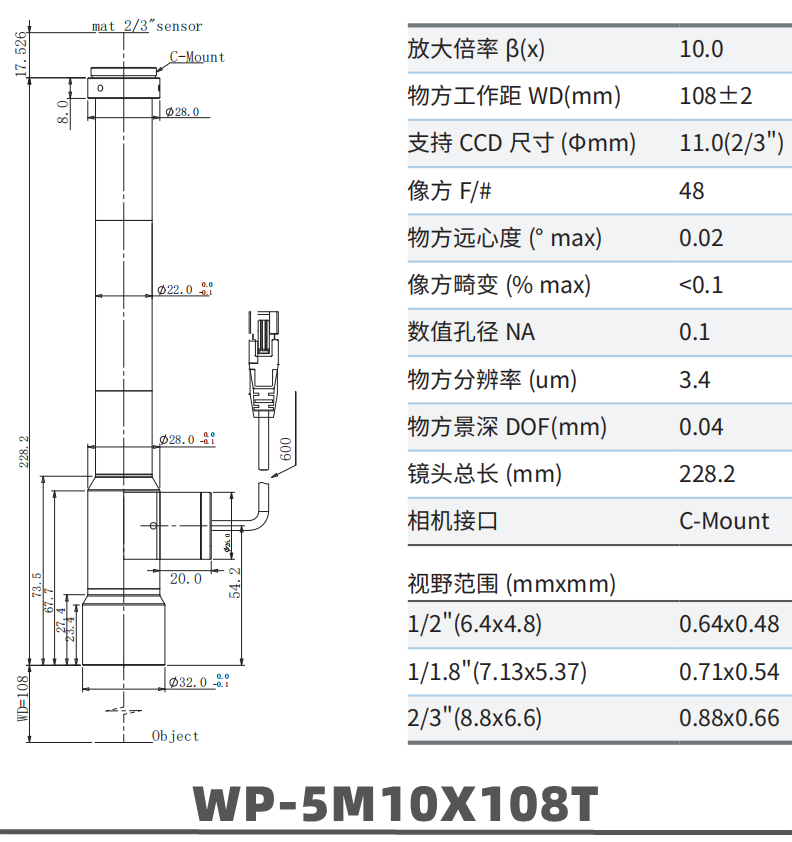

WP-5M10X108T | 10 | 108 | 0.04 | 3.4 | 0.02 | 0.1 | 0.64*0.48 | 0.71*0.54 | 0.88*0.66 |
详细产品尺寸图及其他参数，请联系华谷动力或在下载中心的产品手册自行下载！
