500万高清远心工业镜头63mm物距0.75X-10X同轴/非同轴C口
产品型号 带T为同轴 无T非同轴 标准C口 | 放大 | 工作 | 景深 | 分辨率 | 远心度 | 光学 | 工业相机芯片尺寸对应的FOV | ||
1/2英寸 | 1/1.8英寸 | 2/3英寸 | |||||||
WP-5M0.75X63 | 0.75 | 63 | 0.9 | 5.4 | 0.22 | 0.05 | 8.53*6.4 | 9.51*7.2 | 11.27*9.5 |
WP-5M0.75X63T | 0.75 | 63 | 0.9 | 5.4 | 0.22 | 0.05 | 8.53*6.4 | 9.51*7.2 | 11.27*9.5 |
WP-5M1X63 | 1 | 63 | 0.6 | 5.4 | 0.1 | 0.07 | 6.4*4.8 | 7.13*5.37 | 8.45*7.1 |

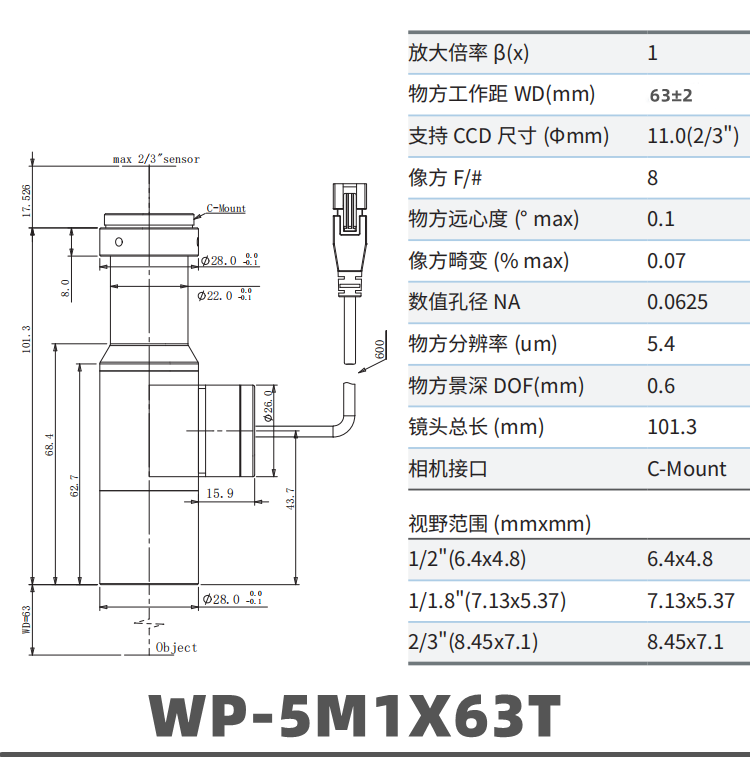

WP-5M1X63T | 1 | 63 | 0.6 | 5.4 | 0.1 | 0.07 | 6.4*4.8 | 7.13*5.37 | 8.45*7.1 |
WP-5M1.5X63 | 1.5 | 63 | 0.3 | 3.4 | 0.03 | 0.04 | 4.3*3.2 | 4.8*3.6 | 5.63*4.73 |

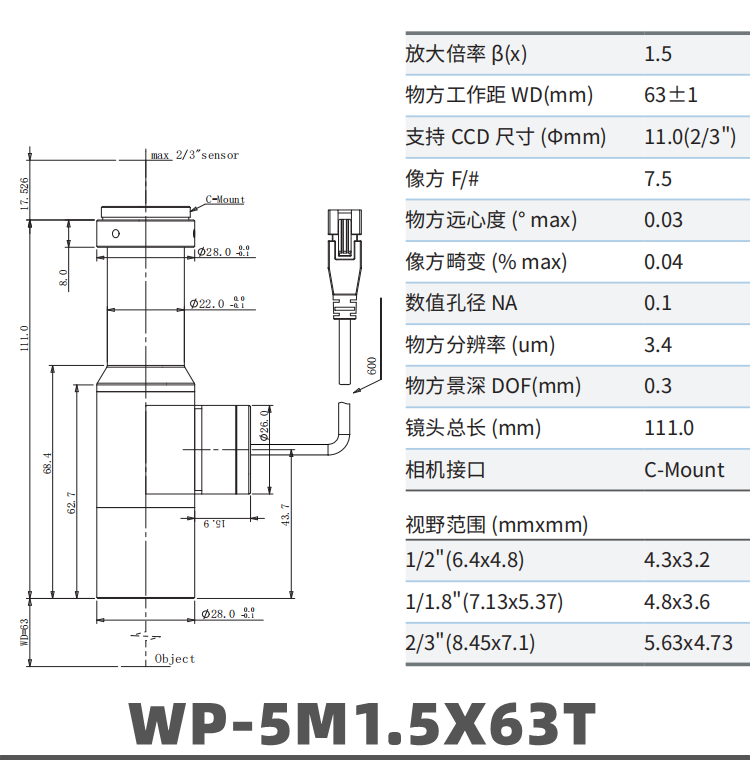

WP-5M1.5X63T | 1.5 | 63 | 0.3 | 3.4 | 0.03 | 0.04 | 4.3*3.2 | 4.8*3.6 | 5.63*4.73 |
WP-5M2X63 | 2 | 63 | 0.2 | 3.4 | 0.02 | 0.1 | 3.2*2.4 | 3.6*2.7 | 4.23*3.55 |
WP-5M2X63T | 2 | 63 | 0.2 | 3.4 | 0.02 | 0.1 | 3.2*2.4 | 3.6*2.7 | 4.23*3.55 |
WP-5M2.5X63 | 2.5 | 63 | 0.1 | 2.7 | 0.05 | 0.03 | 2.6*1.9 | 2.9*2.1 | 3.38*2.84 |
WP-5M2.5X63T | 2.5 | 63 | 0.1 | 2.7 | 0.05 | 0.03 | 2.6*1.9 | 2.9*2.1 | 3.38*2.84 |
WP-5M3X63 | 3 | 63 | 0.1 | 2.7 | 0.04 | 0.02 | 2.1*1.6 | 2.4*1.8 | 2.82*2.37 |
WP-5M3X63T | 3 | 63 | 0.1 | 2.7 | 0.04 | 0.02 | 2.1*1.6 | 2.4*1.8 | 2.82*2.37 |
WP-5M4X63 | 4 | 63 | 0.1 | 2.7 | 0.03 | 0.01 | 1.6*1.2 | 1.8*1.3 | 2.11*1.78 |
WP-5M4X63T | 4 | 63 | 0.1 | 2.7 | 0.03 | 0.01 | 1.6*1.2 | 1.8*1.3 | 2.11*1.78 |
WP-5M6X63 | 6 | 63 | 0.1 | 2.7 | 0.03 | 0.03 | 1.06*0.89 | 1.2*0.9 | 1.41*1.18 |
WP-5M6X63T | 6 | 63 | 0.1 | 2.7 | 0.03 | 0.03 | 1.06*0.89 | 1.2*0.9 | 1.41*1.18 |
WP-5M8X63 | 8 | 63 | 0.04 | 2.7 | 0.02 | 0.01 | 0.8*0.6 | 0.9*0.7 | 1.06*0.89 |
WP-5M8X63T | 8 | 63 | 0.04 | 2.7 | 0.02 | 0.01 | 0.8*0.6 | 0.9*0.7 | 1.06*0.89 |
WP-5M10X63 | 10 | 63 | 0.03 | 2.7 | 0.02 | 0.02 | 0.64*0.48 | 0.71*0.54 | 0.85*0.71 |
WP-5M10X63T | 10 | 63 | 0.03 | 2.7 | 0.02 | 0.02 | 0.64*0.48 | 0.71*0.54 | 0.85*0.71 |
