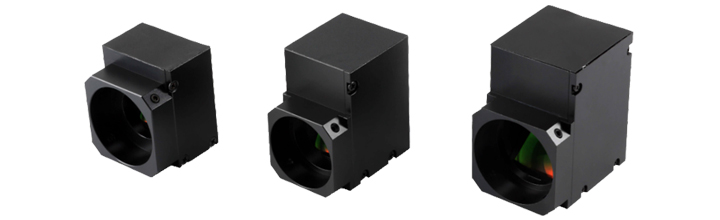

光学转向棱镜-L型Z型ZL型 十字上下对位转向棱镜
L型转向棱镜 | 型号 | 支持镜头口径 mm | 内部光程 mm | 光轴间隔 mm |

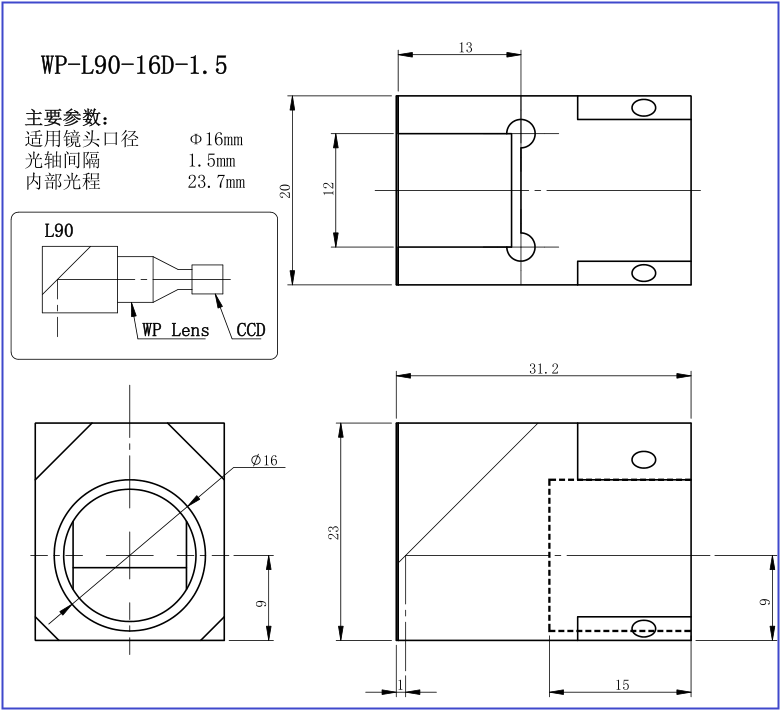

WP-L90-16D-1.5 | 16 | 23.7 | 1.5 | |
WP-L90-16D-3S | 16 | 23.5 | 3 | |

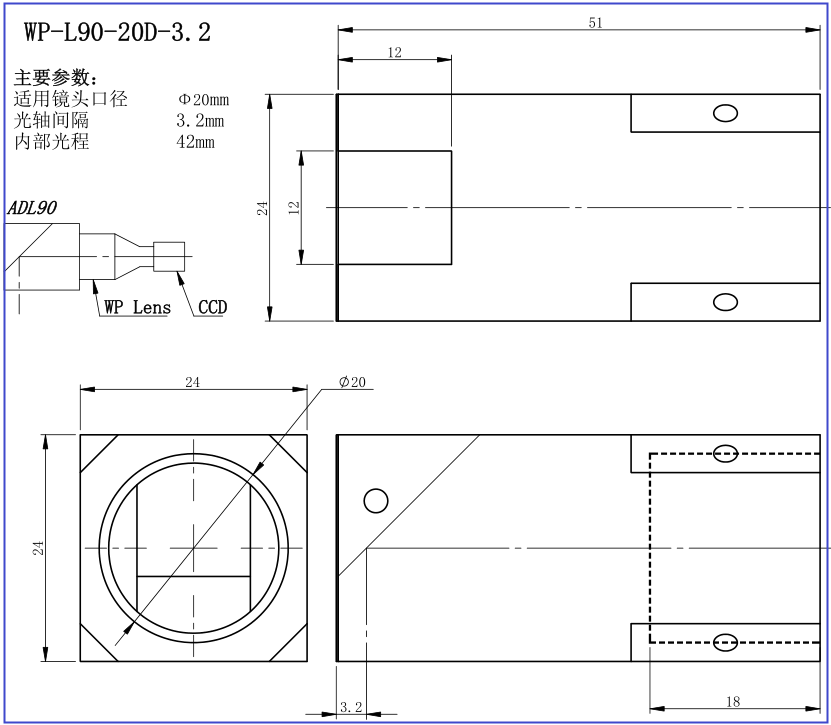

WP-L90-20D-3.2 | 20 | 42 | 3.2 | |

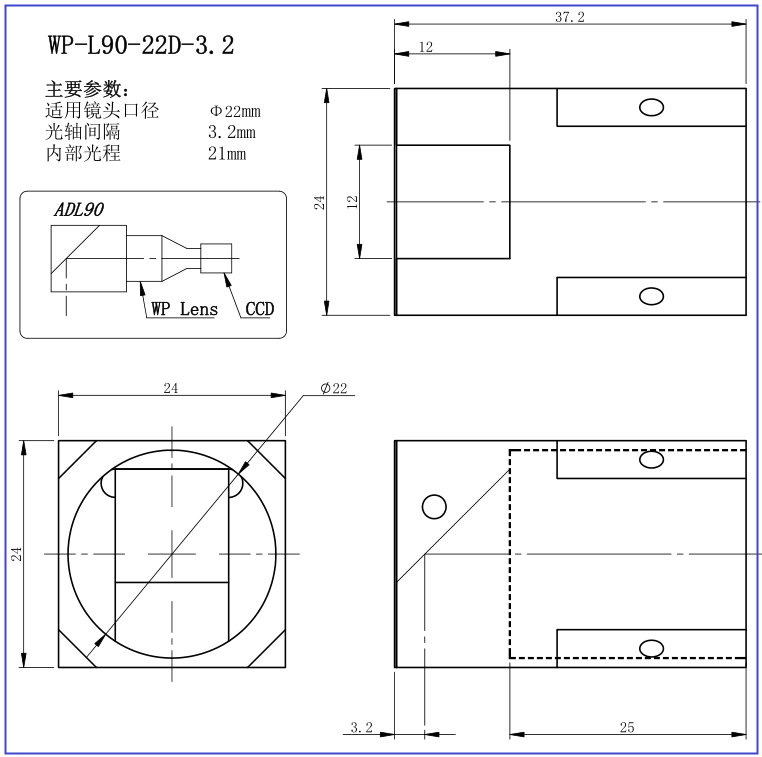

WP-L90-22D-3.2 | 22 | 21 | 3.2 | |

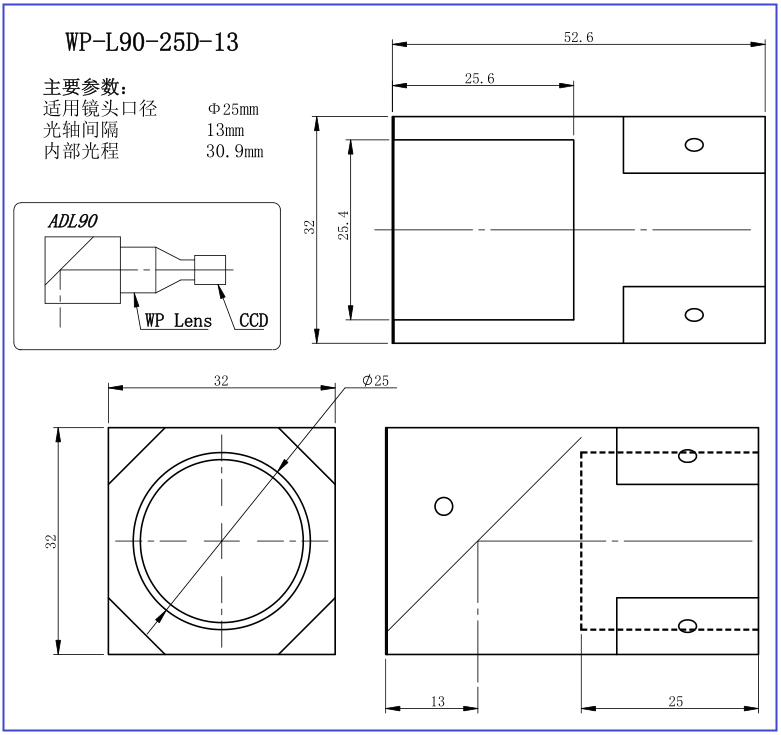

WP-L90-25D-13 | 25 | 30.9 | 13 | |

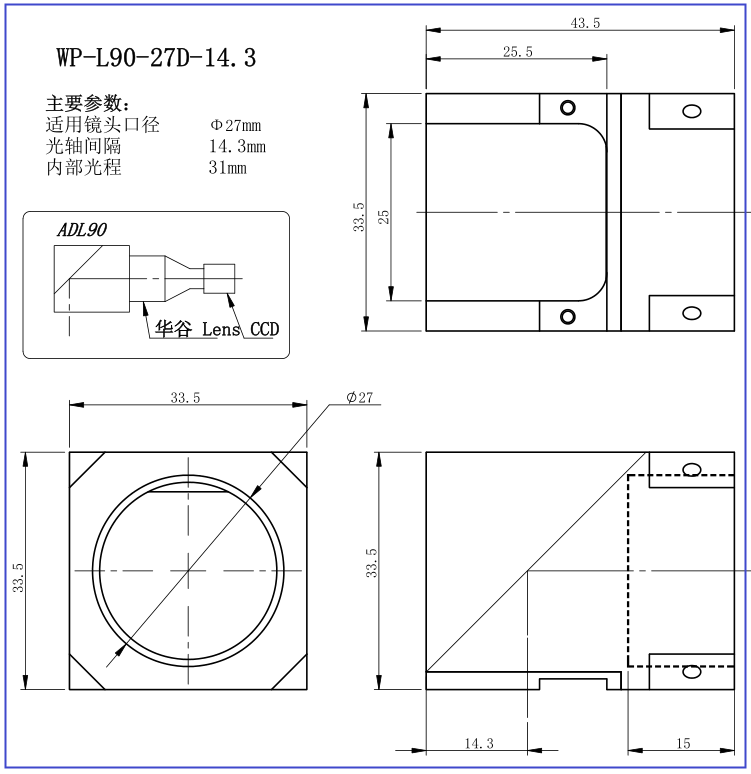

WP-L90-27D-14.3 | 27 | 31.1 | 14.3 | |

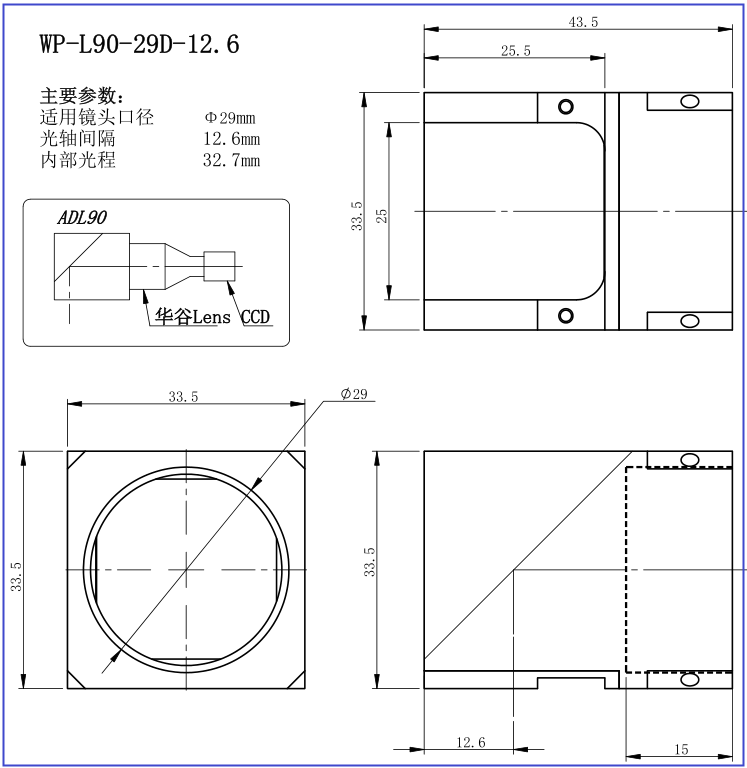

WP-L90-29D-12.6 | 29 | 32.7 | 12.6 | |

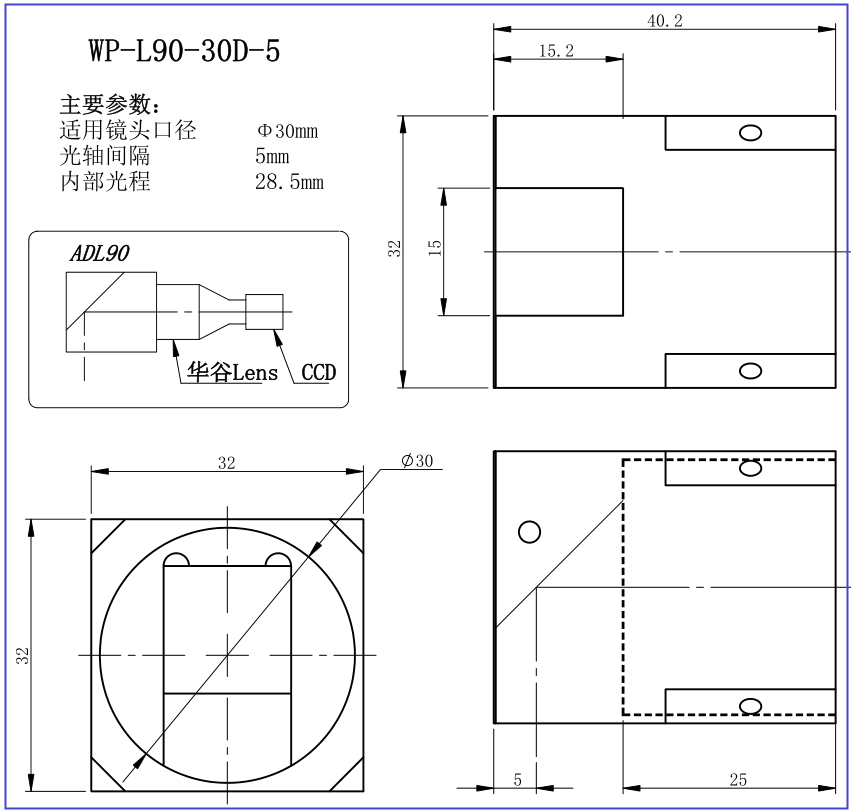

WP-L90-30D-5 | 30 | 26.5 | 5 | |

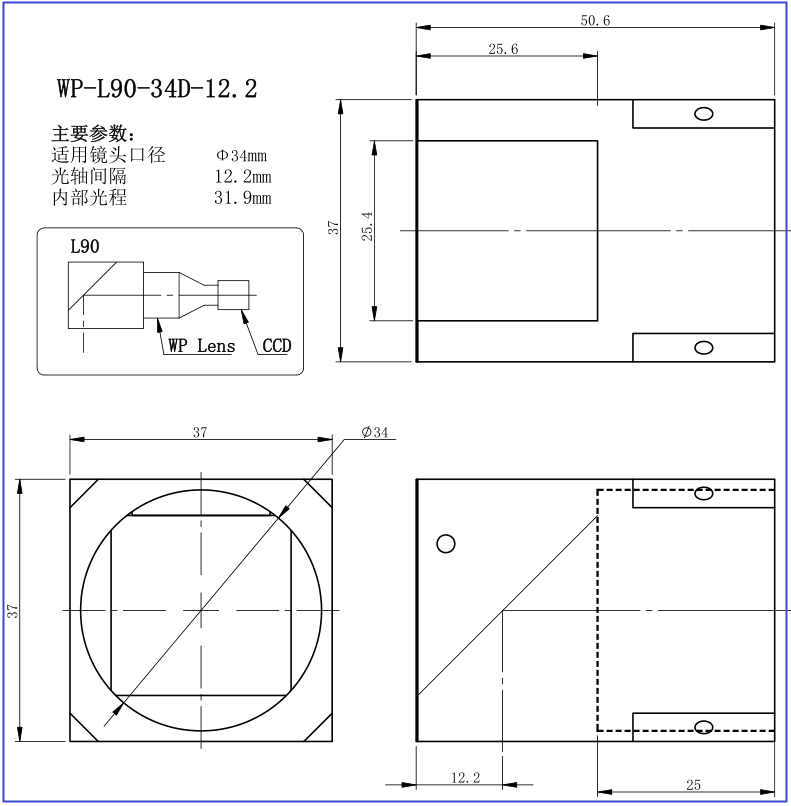

WP-L90-34D-12.2 | 34 | 31.9 | 12.2 | |

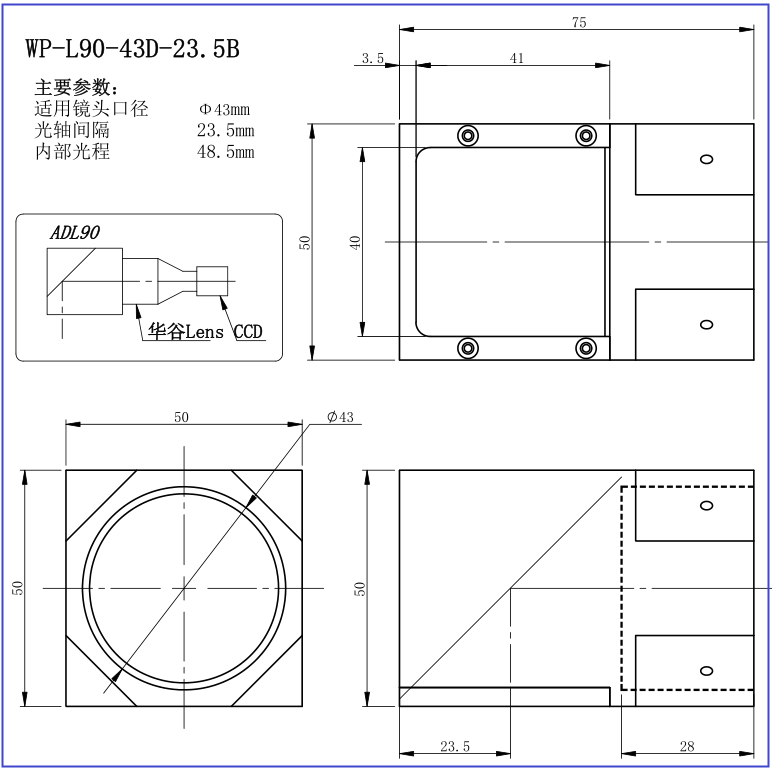

WP-L90-43D-23.5B | 43 | 48.5 | 23.5 | |

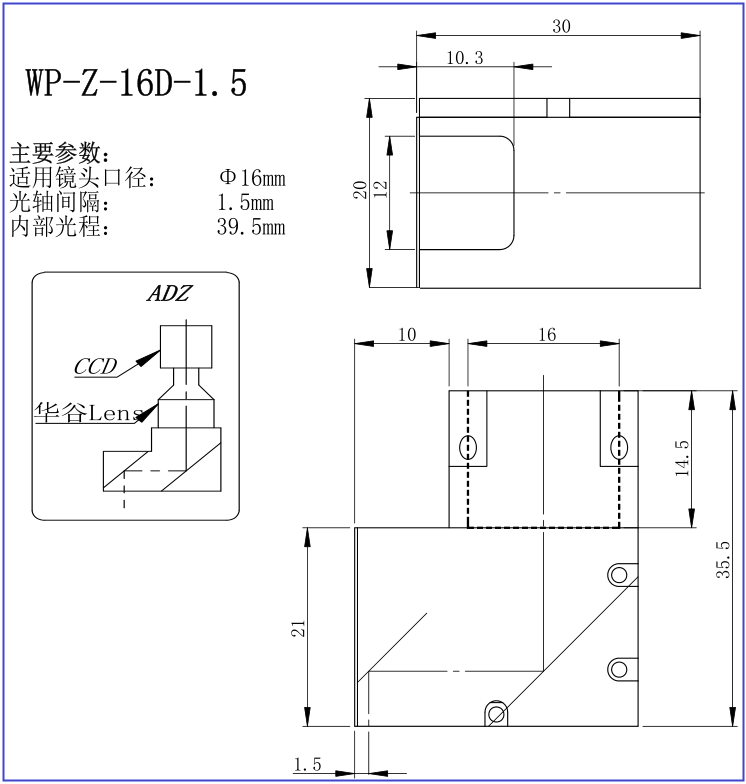

Z型 转向 棱镜 | WP-Z-16D-1.5 | 16 | 39.5 | 1.5 |

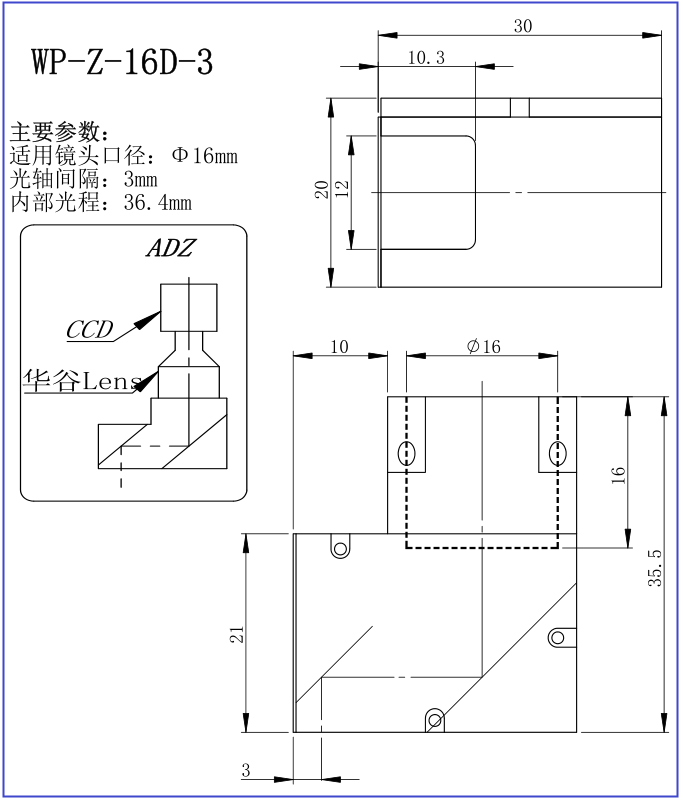

WP-Z-16D-3 | 16 | 36.4 | 3 | |

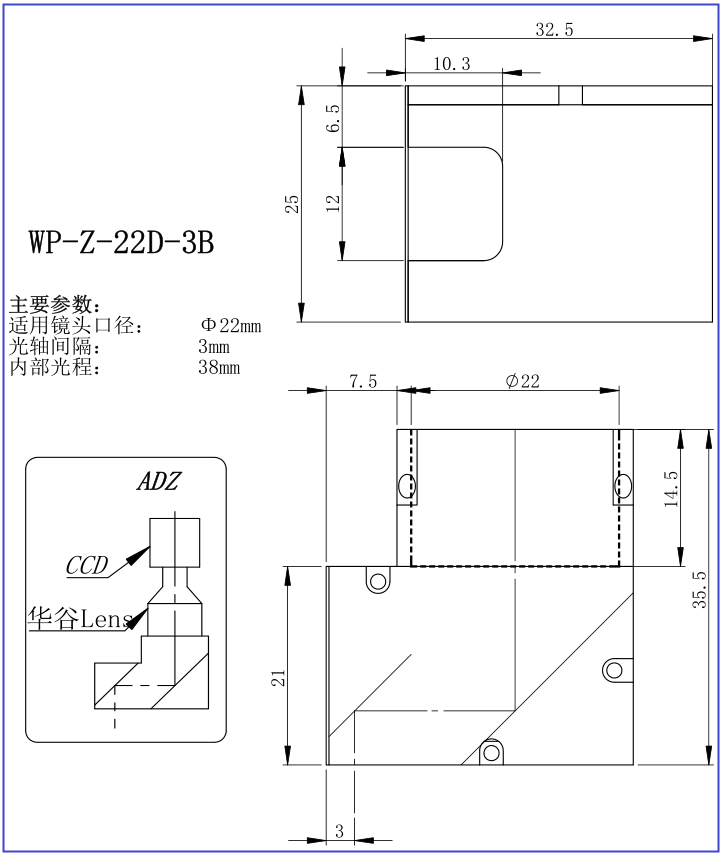

WP-Z-22D-3B | 22 | 38 | 3 | |
WP-Z-29D-5 | 29 | 37 | 5 | |

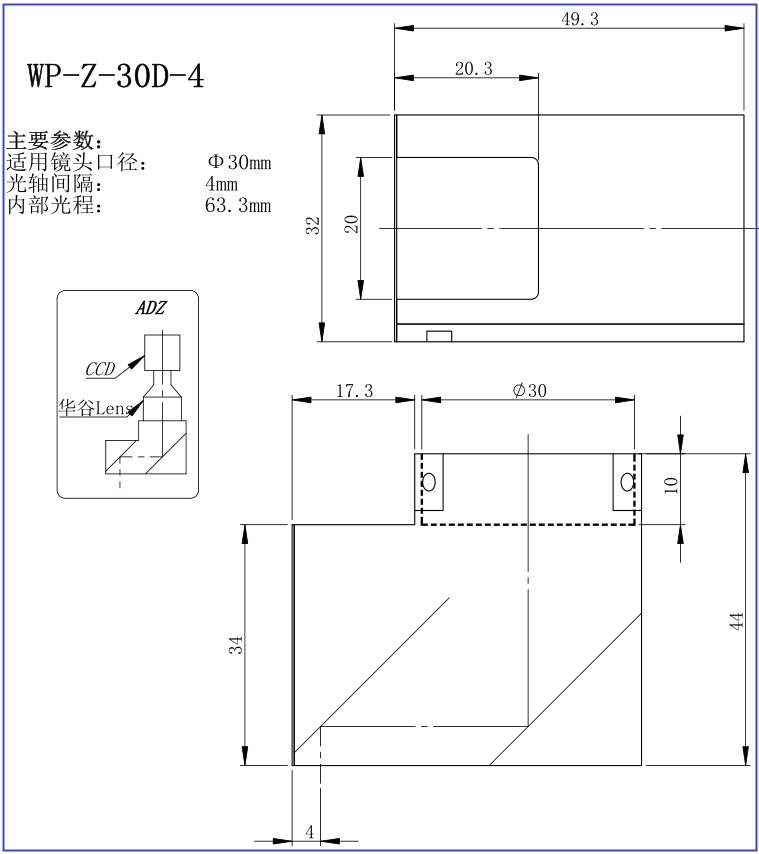

WP-Z-30D-4 | 30 | 63.3 | 4 | |
ZL型 转向 棱镜 | WP-ZL-16D-1L | 16 | 31 | 1 |
WP-ZL-16D-1R | 16 | 31 | 1 | |

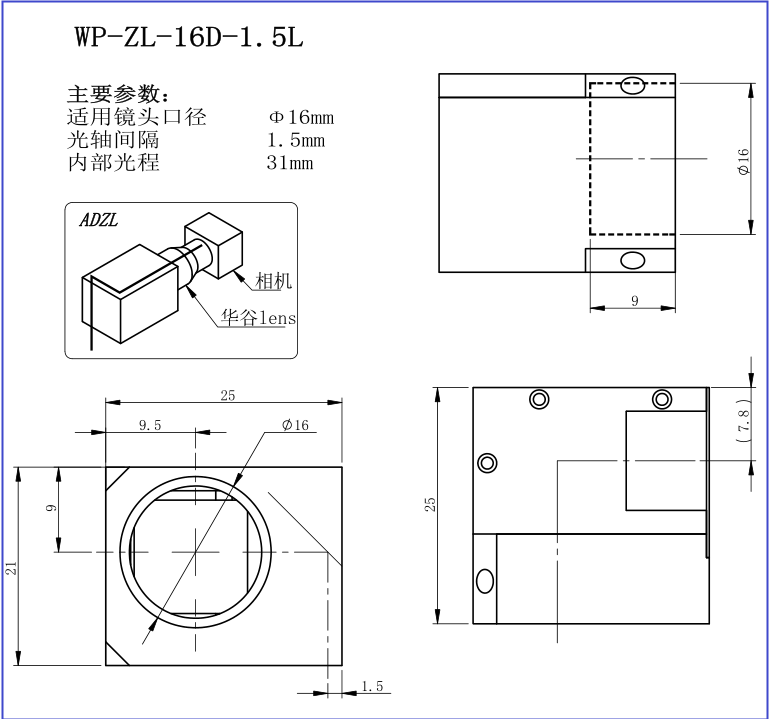

WP-ZL-16D-1.5L | 16 | 31 | 1.5 | |

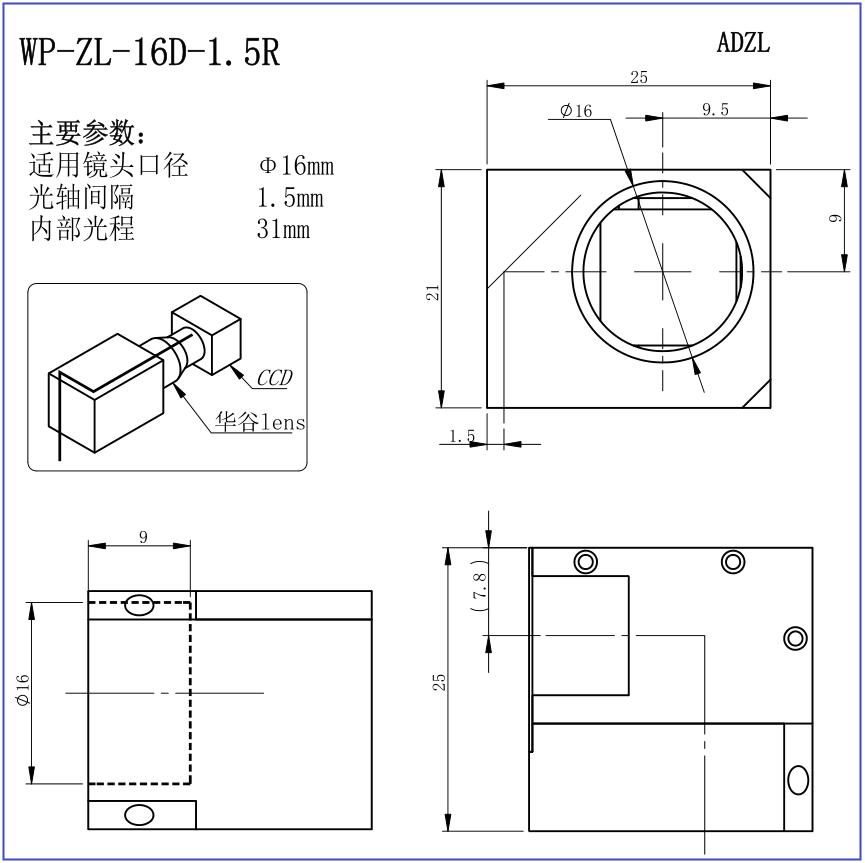

WP-ZL-16D-1.5R | 16 | 31 | 1.5 | |

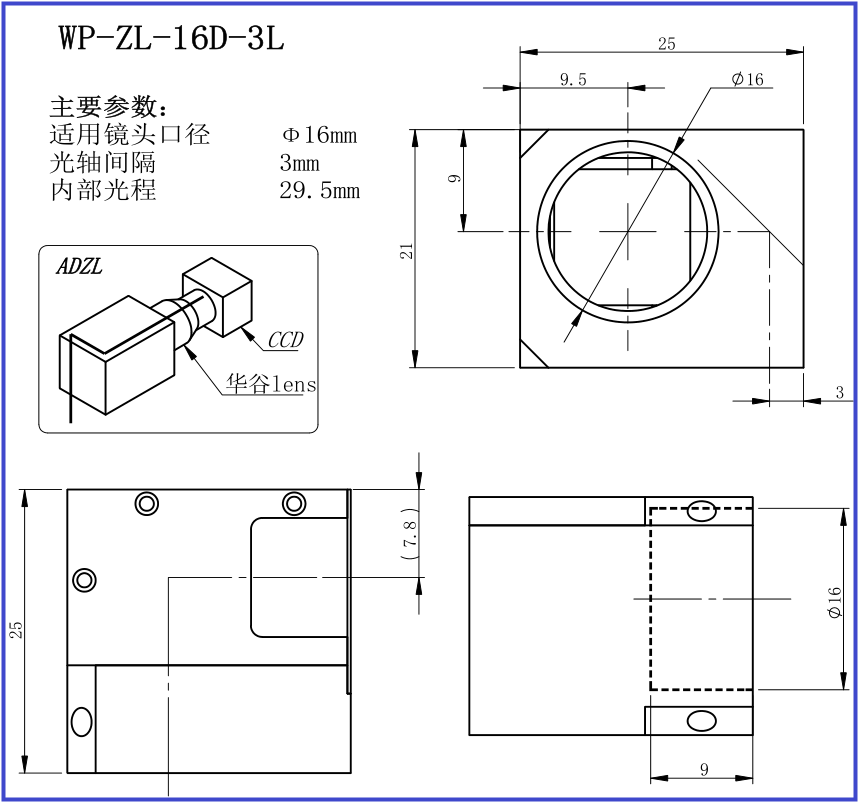

WP-ZL-16D-3B-L | 16 | 29.5 | 3 | |

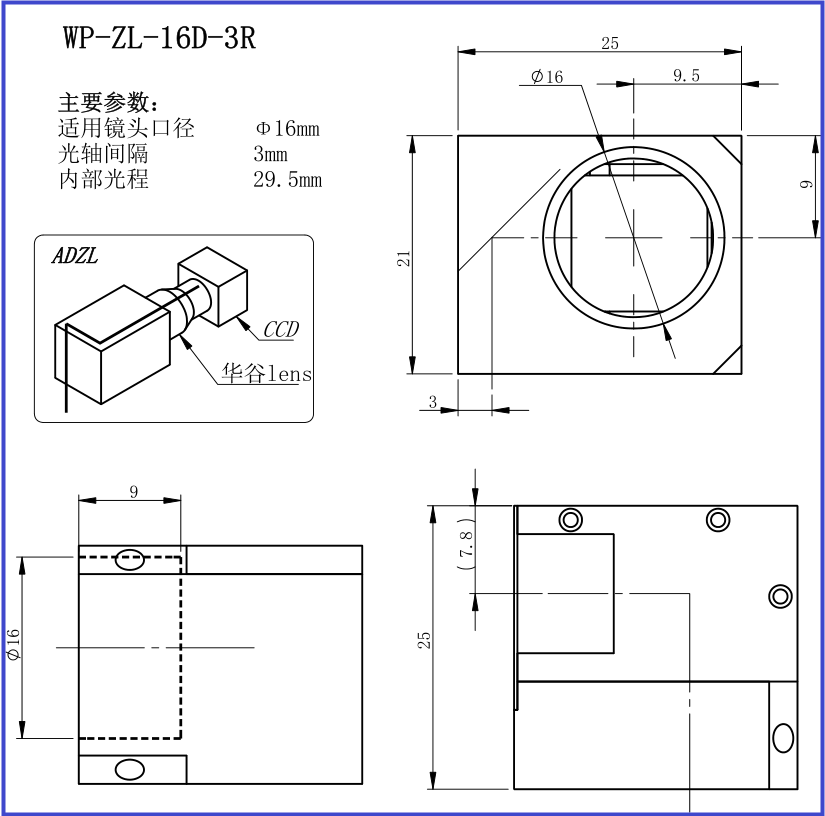

WP-ZL-16D-3B-R | 16 | 29.5 | 3 | |
（WP-L90-16D-1.5/WP-L90-16D-3S/WP-L90-20D-3.2/WP-L90-22D-3.2/WP-L90-25D-13/WP-L90-27D-14.3/WP-L90-29D-12.6/WP-L90-30D-5/WP-L90-34D-12.2 /WP-L90-43D-23.5B/WP-Z-16D-1.5/WP-Z-16D-3/WP-Z-22D-3B/WP-Z-29D-5/ WP-Z-30D-4/WP-ZL-16D-1L/WP-ZL-16D-1R/WP-ZL-16D-1.5L/WP-ZL-16D-1.5R/WP-ZL-16D-3B-L /WP-ZL-16D-3B-R工业相机镜头光学转向棱镜L型/Z型/ZL型/十字形）
详细产品尺寸图及其他参数，请联系我们或在下载中心的产品手册下载！
