WP-10MP双侧远心工业镜头最大支持1.1"靶面C口

规格参数

产品型号 (后缀T为同轴) 标准C接口	放大倍率（X）	工作距离 (mm)		光学畸变（%）	景深（mm）	分辨力 (μm)	工业相机芯片尺寸对应的 FOV视野范围：mm *mm
产品型号 (后缀T为同轴) 标准C接口	放大倍率（X）	工作距离 (mm)		光学畸变（%）	景深（mm）	分辨力 (μm)	1英寸 12.8×9.6	1.1英寸 14.2×10.4

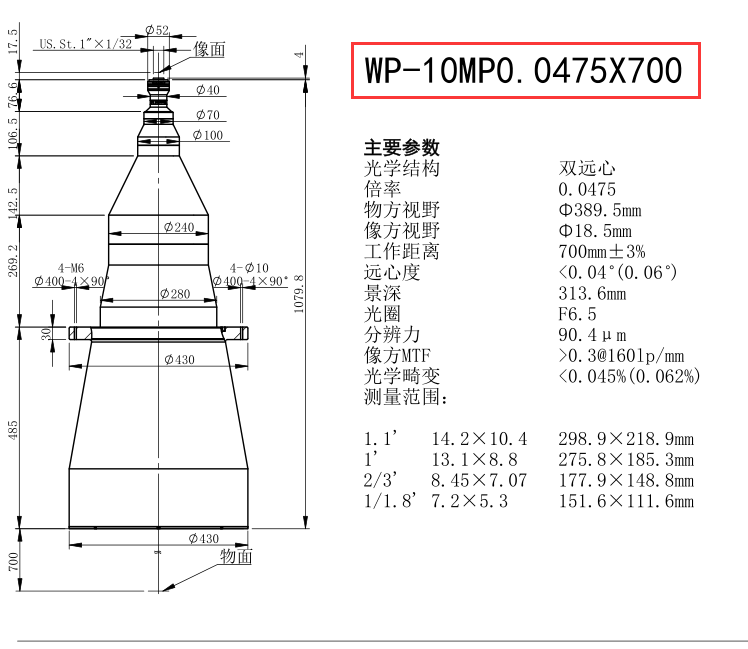

WP-10MP0.0475X700	0.0475	700		0.045	313.6	90.4	269.47x202.1	298.95x218.9

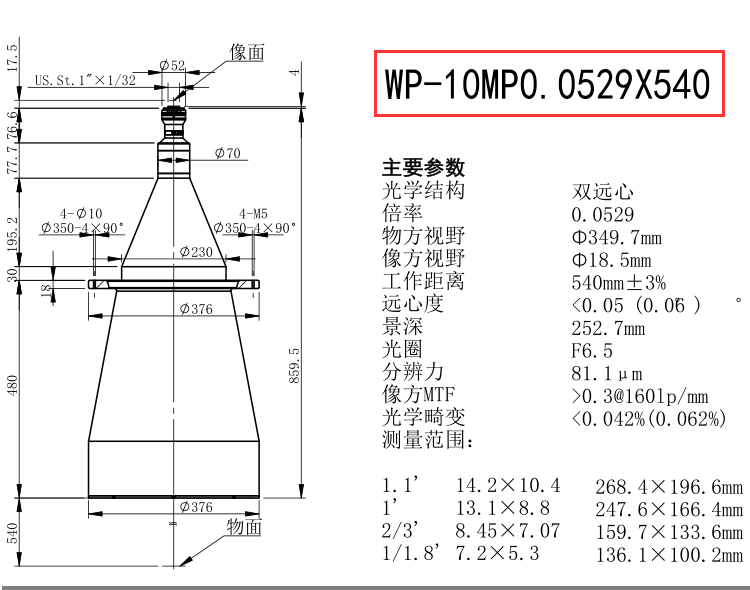

WP-10MP0.0529X540	0.0529	540		0.042	252.7	81.1	241.97x181.4	268.43x196.6

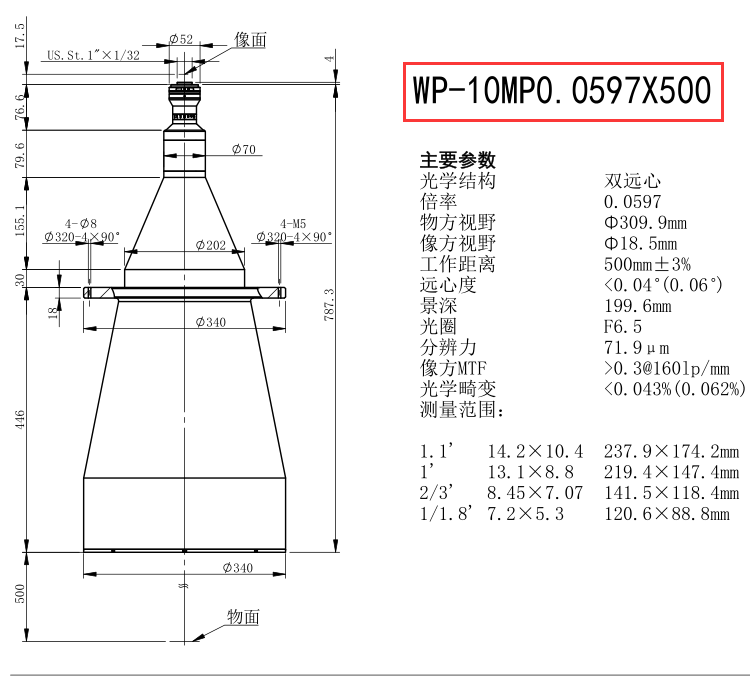

WP-10MP0.0597X500	0.0597	500		0.043	199.6	71.9	214.41x160.8	237.86x174.2

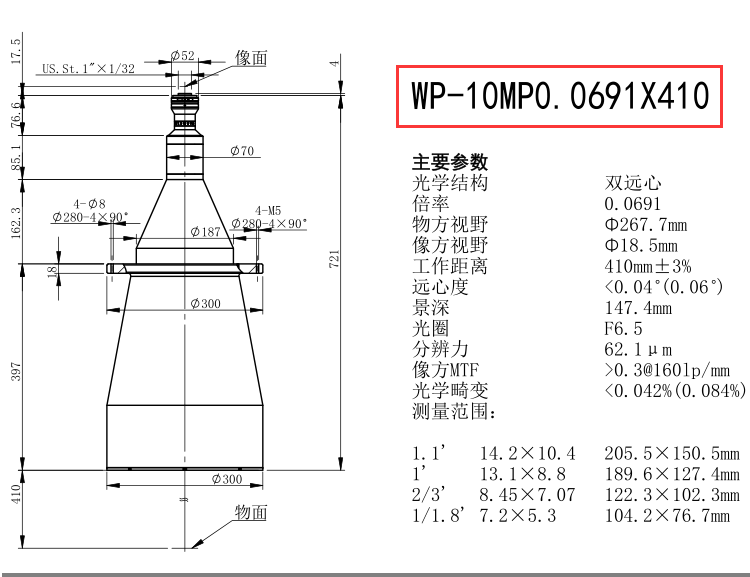

WP-10MP0.0691X410	0.0691	410		0.042	147.4	62.1	185.24x138.9	205.5x150.51

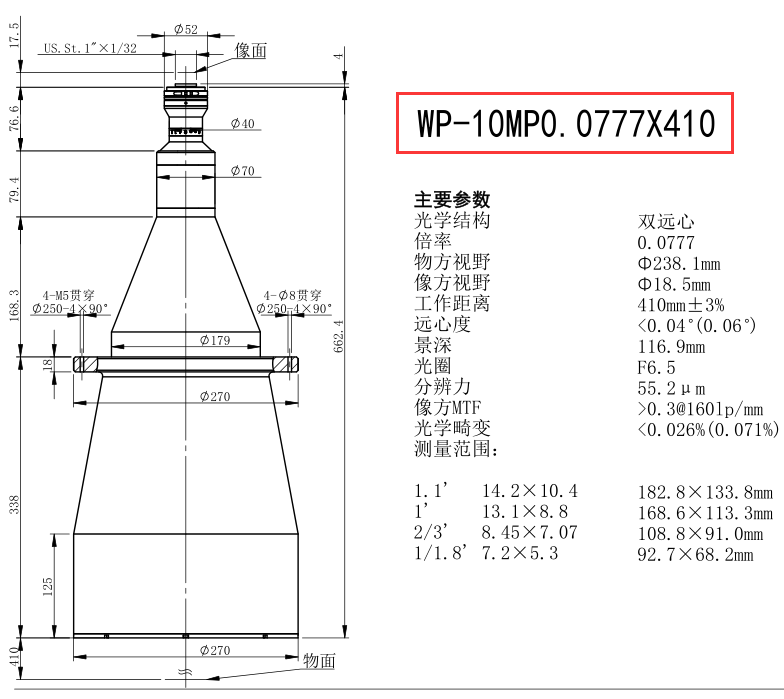

WP-10MP0.0777X410	0.0777	410		0.026	116.9	55.2	164.74x123.5	182.75x133.8

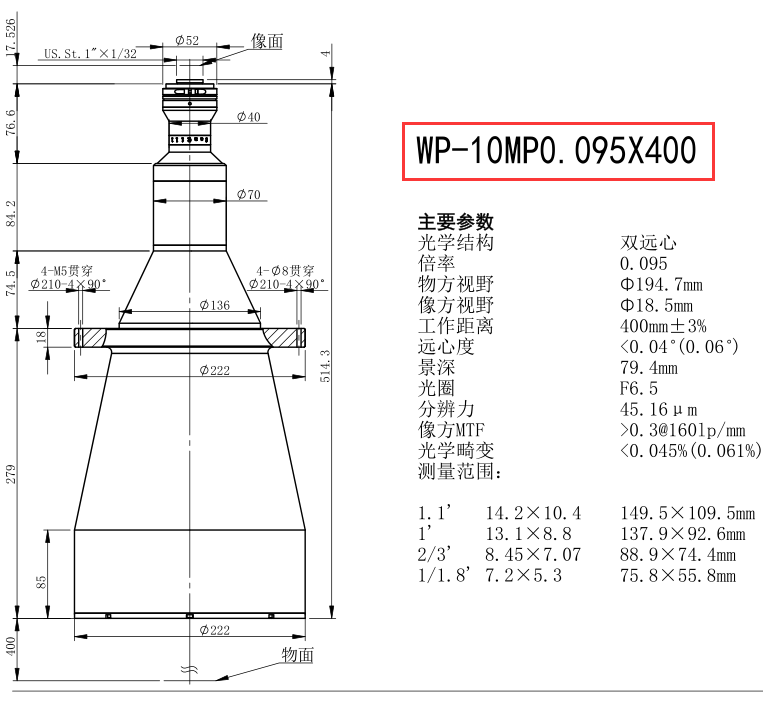

WP-10MP0.095X400	0.095	400		0.045	79.4	45.16	134.74x101.0	149.47x109.5

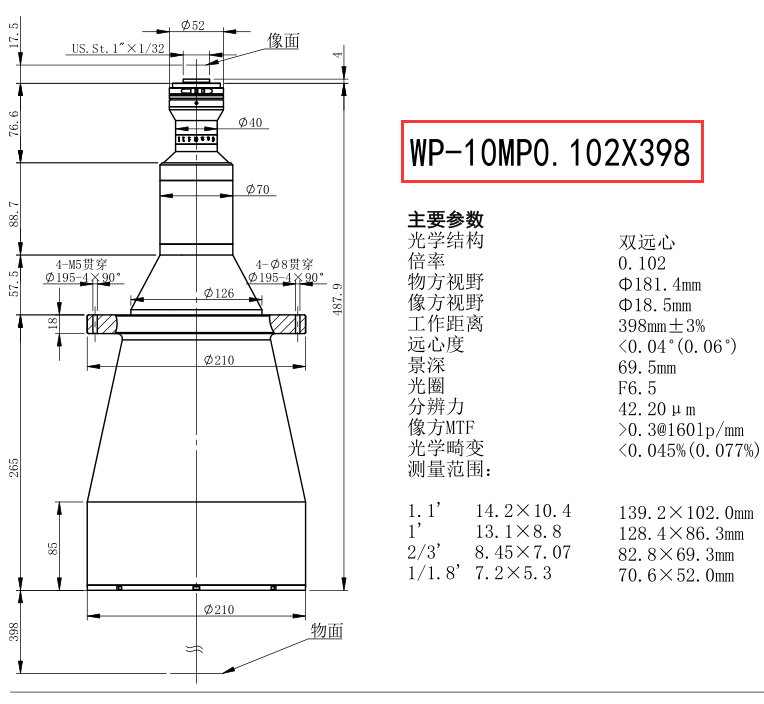

WP-10MP0.102X398	0.102	398		0.045	69.5	42.20	125.49x94.12	139.22x101.9

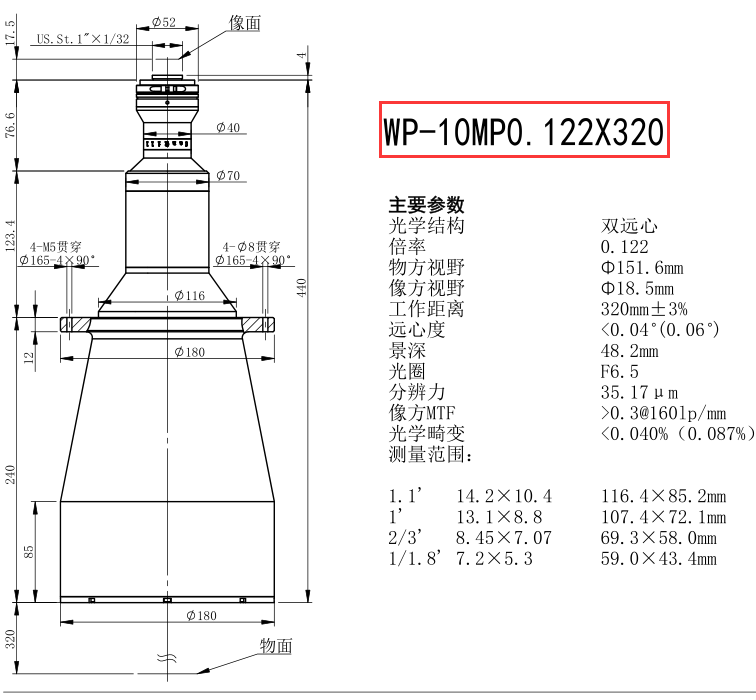

WP-10MP0.122X320	0.122	320		0.040	48.2	35.17	104.92x78.69	116.39x85.25

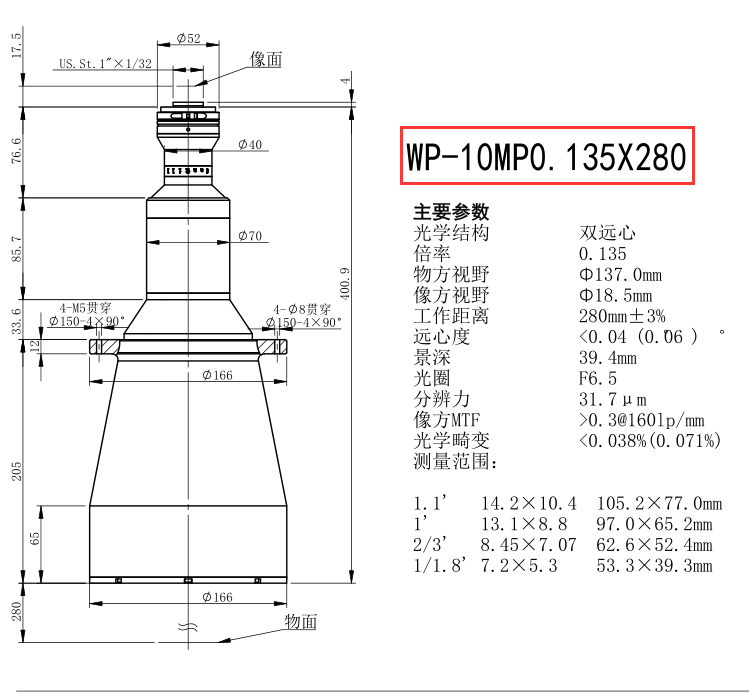

WP-10MP0.135X280	0.135	280		0.038	39.4	31.73	94.81x71.11	105.19x77.04

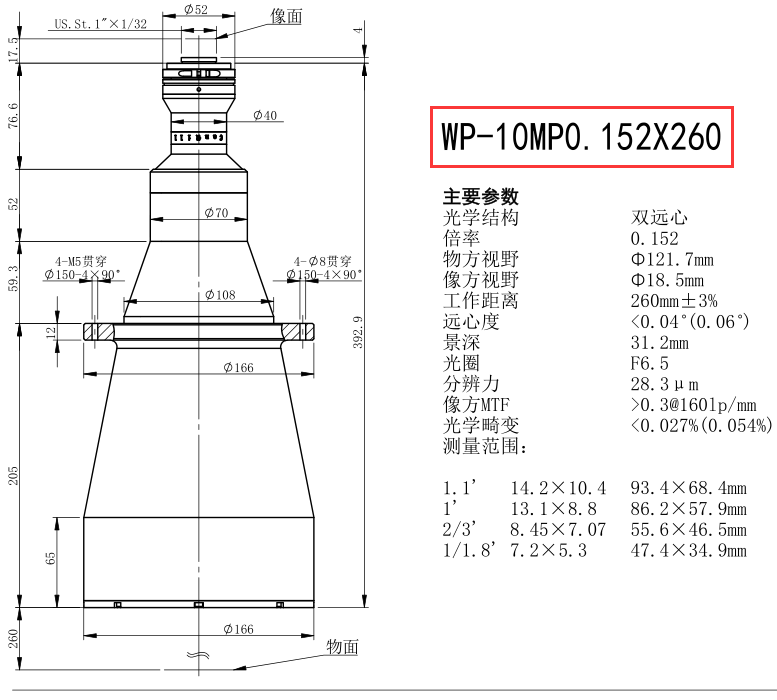

WP-10MP0.152X260	0.152	260		0.027	31.2	28.3	84.21x63.16	93.42x68.42

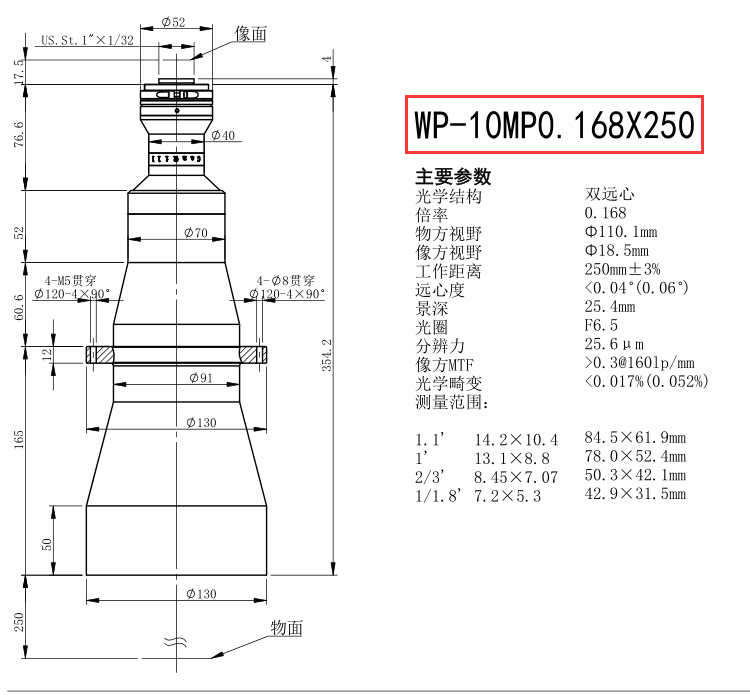

WP-10MP0.168X250	0.168	250		0.017	25.4	25.6	76.19x57.14	84.52x61.9

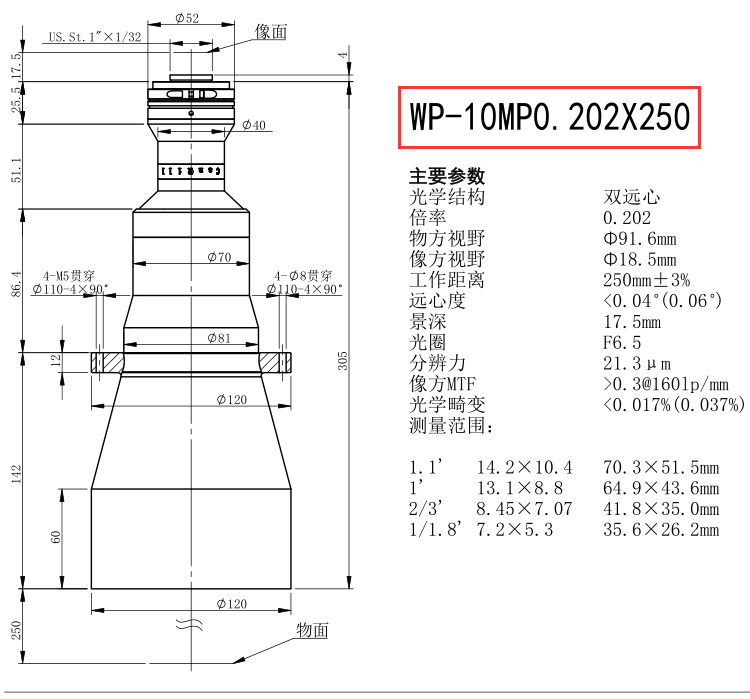

WP-10MP0.202X250	0.202	250		0.017	17.5	21.3	63.37x47.52	70.3x51.49

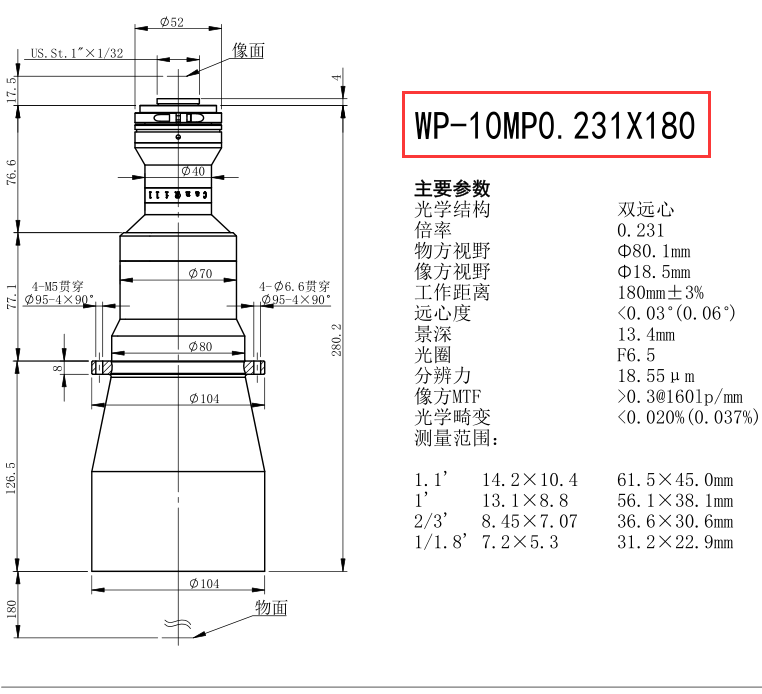

WP-10MP0.231X180	0.231	180		0.020	13.4	18.55	55.41x41.56	61.47x45.02

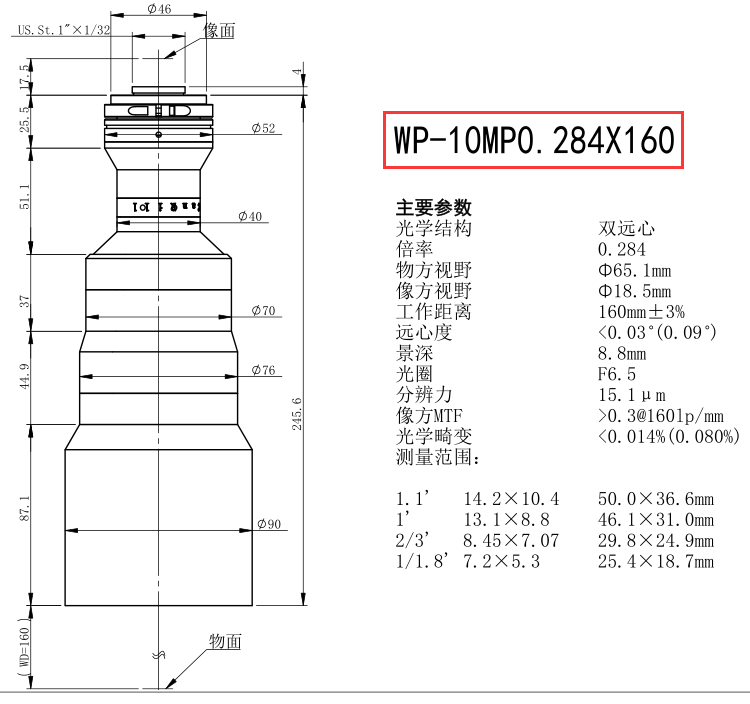

WP-10MP0.284X160	0.284	160		0.014	8.8	15.10	45.07x33.8	50x36.62

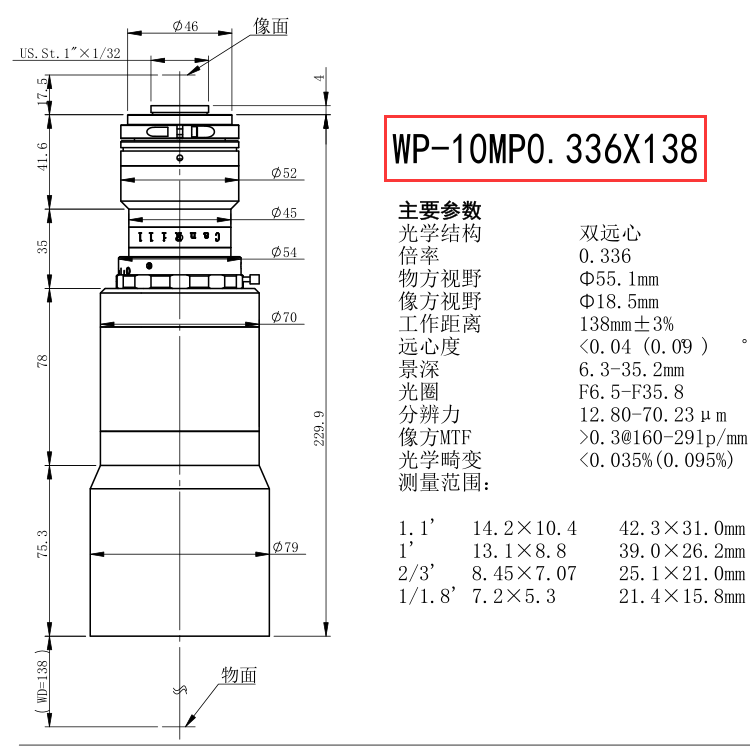

WP-10MP0.336X138	0.336	138		0.035	6.3-35.2	13-70.23	38.1x28.57	42.26x30.95

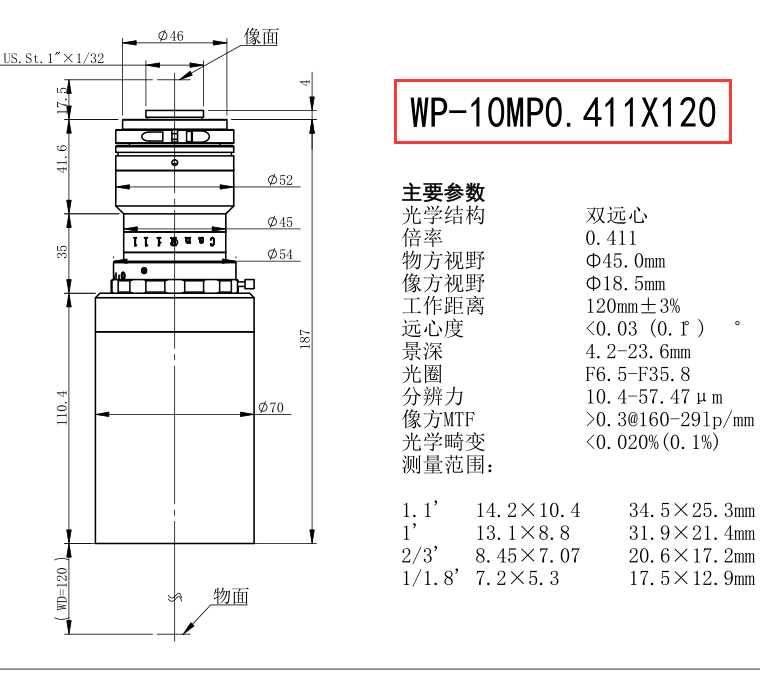

WP-10MP0.411X120	0.411	120		0.020	4.2-23.6	10-57.5	31.14x23.36	34.55x25.3

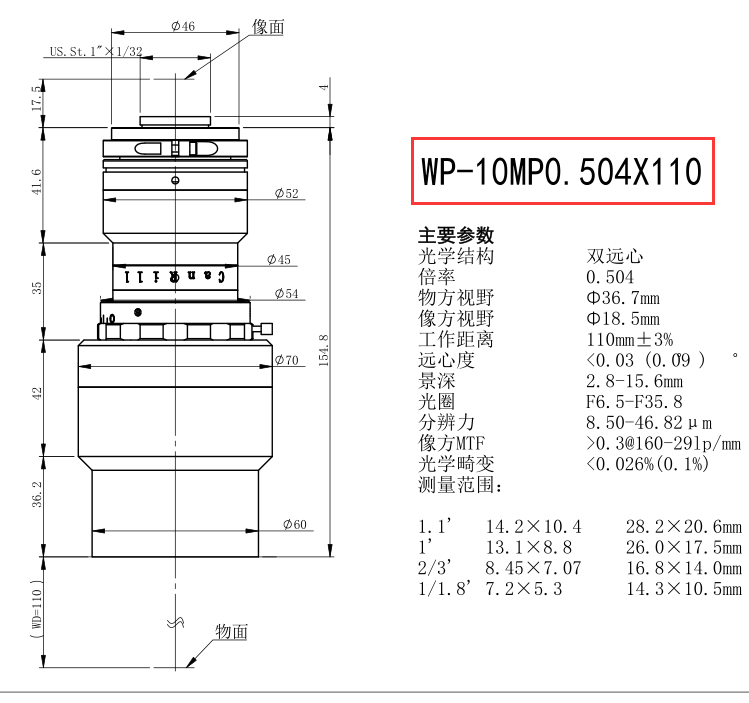

WP-10MP0.504X110	0.504	110		0.026	2.8-15.6	8.5-46.8	25.4x19.05	28.17x20.63

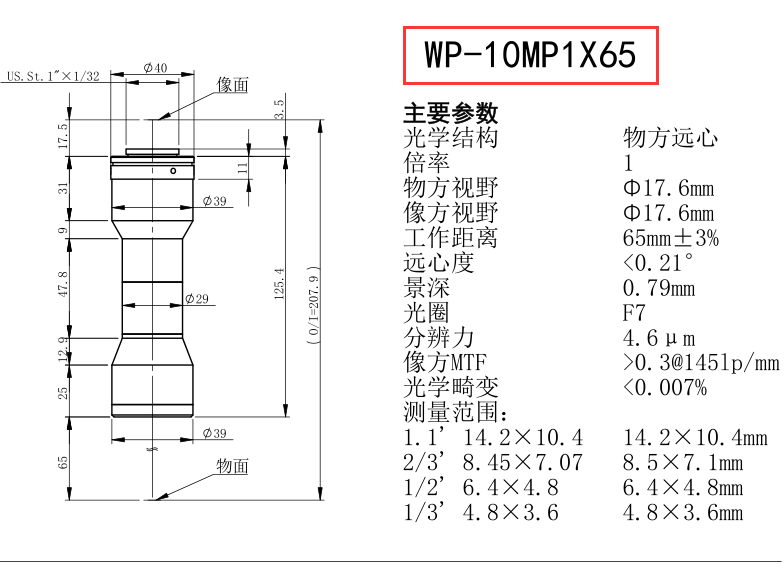

WP-10MP1X65	1	65	0.007		0.79	4.6	12.8x9.6	14.2x10.4

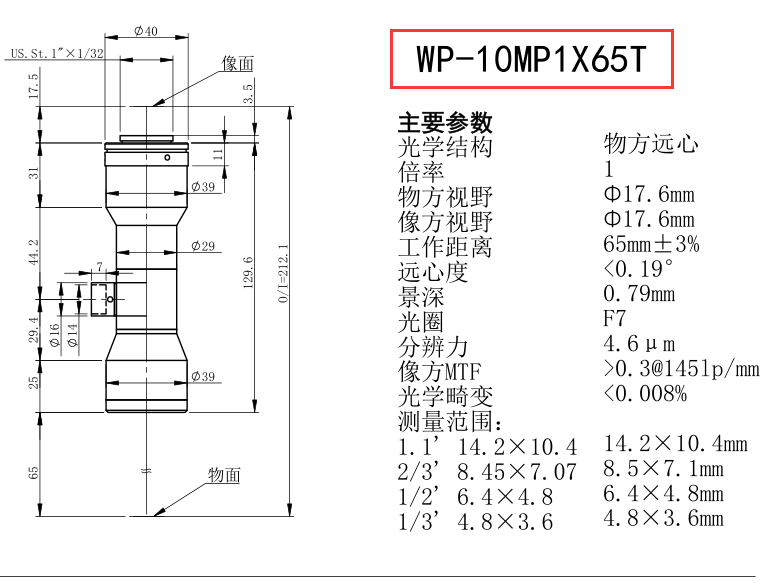

WP-10MP1X65T同轴	1	65	0.008		0.79	4.6	12.8x9.6	14.2x10.4

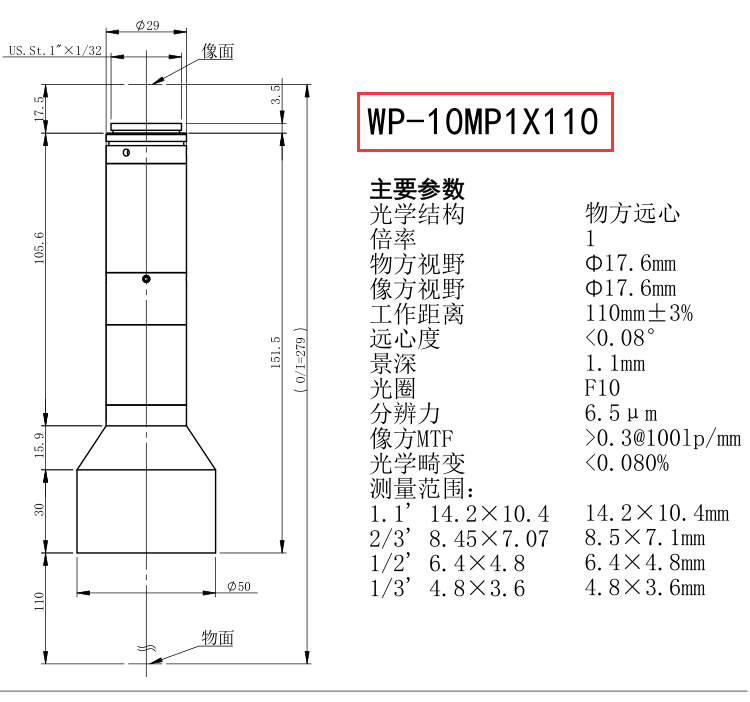

WP-10MP1X110	1	65	0.080		1.1	6.5	12.8x9.6	14.2x10.4
WP-10MP1X110T同轴	1	110	0.080		1.1	65	12.8x9.6	14.2x10.4

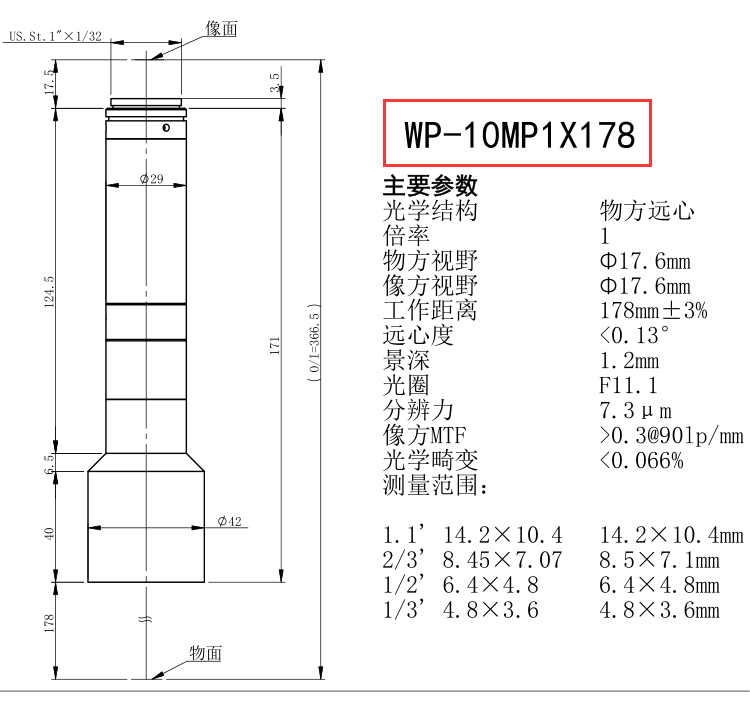

WP-10MP1X178	1	110	0.066		1.2	7.3	12.8x9.6	14.2x10.4

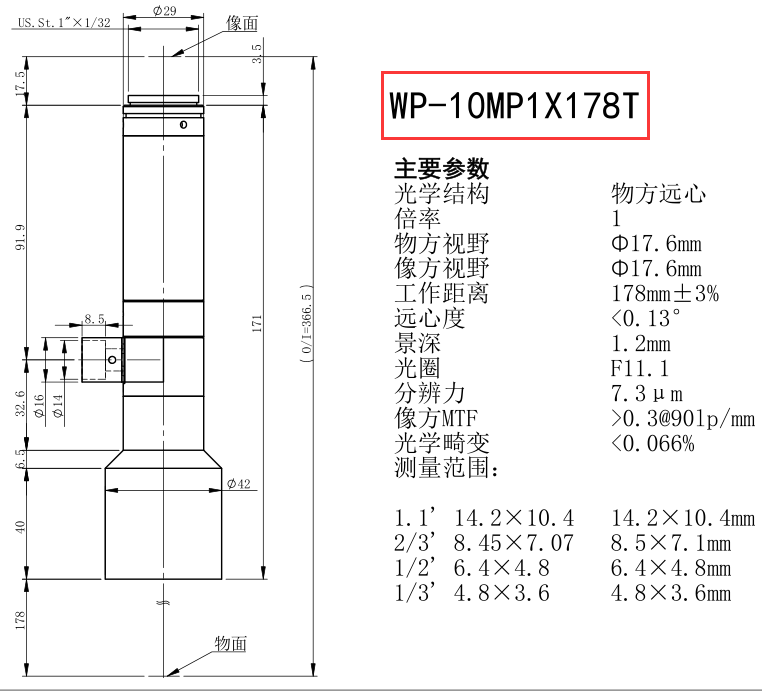

WP-10MP1X178T同轴	1	178	0.066		1.2	7.3	12.8x9.6	14.2x10.4
WP-10MP1.5X110	1.5	178	0.082		0.57	5.1	8.53x6.4	9.47x6.93
WP-10MP1.5X110T同轴	1.5	110	0.082		0.57	5.1	8.53x6.4	9.47x6.93

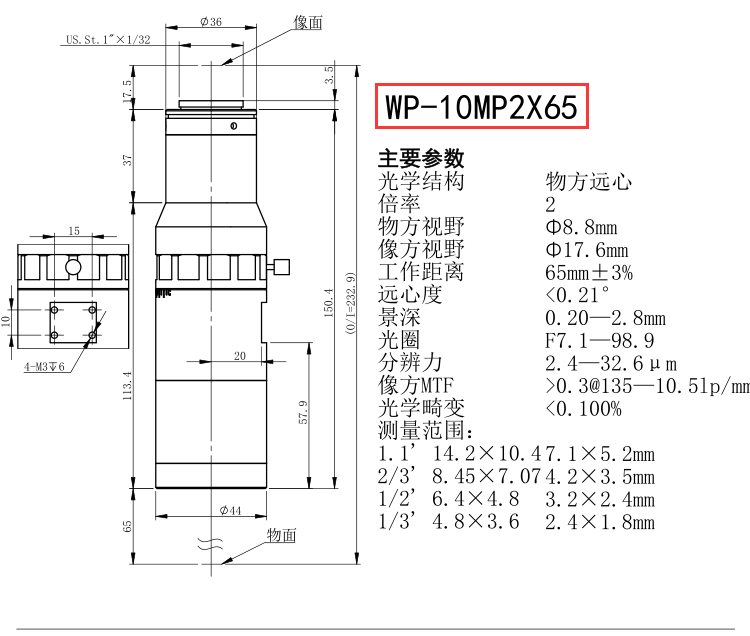

WP-10MP2X65	2	110	0.100		0.20-2.8	2.4-32.6	6.4x4.8	7.1x5.2

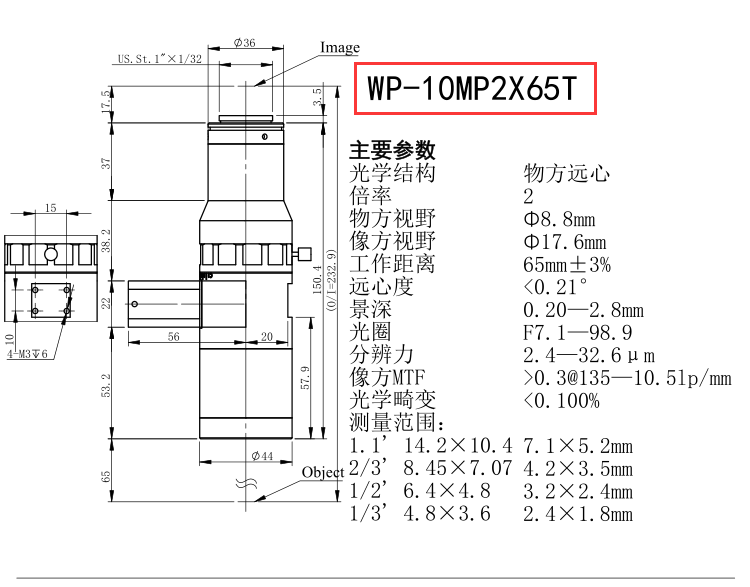

WP-10MP2X65T同轴	2	65	0.100		0.20-2.8	2.4-32.6	6.4x4.8	7.1x5.2

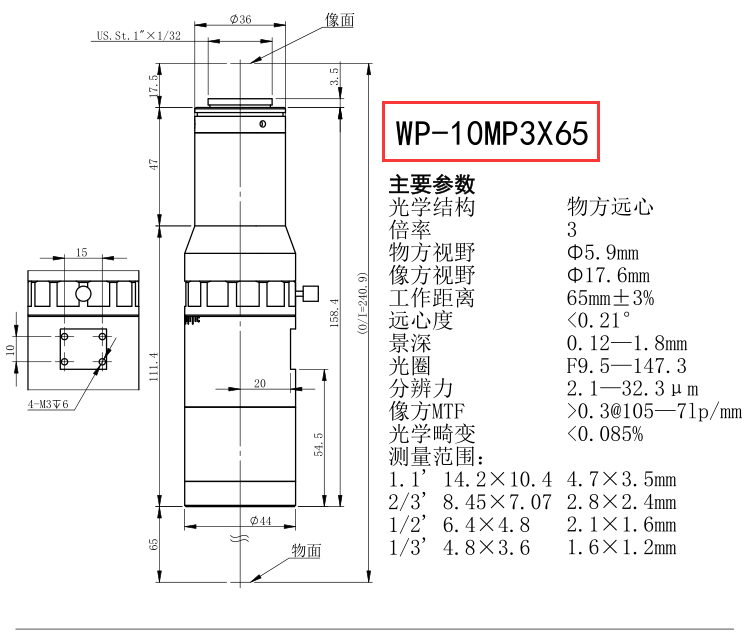

WP-10MP3X65	3	65	0.085		0.12-1.8	2.1-32.3	4.27x3.2	4.73x3.47

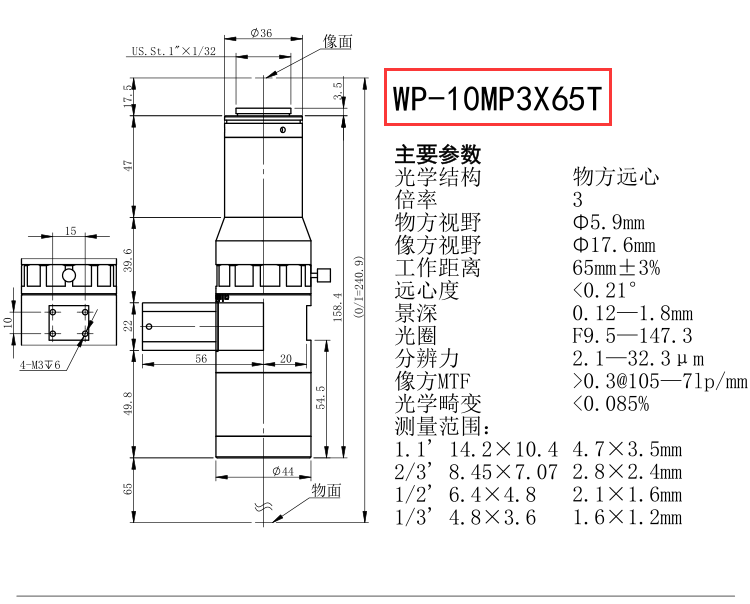

WP-10MP3X65T同轴	3	65	0.085		0.12-1.8	2.1-32.3	4.27x3.2	4.73x3.47

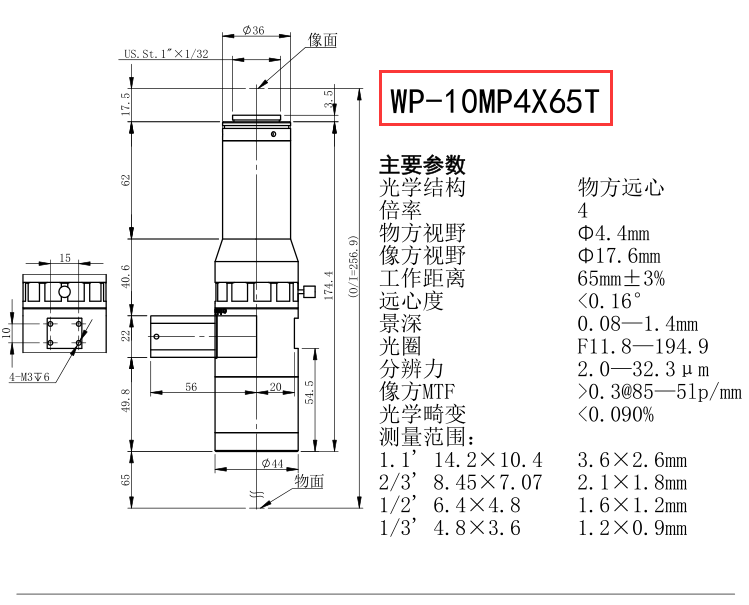

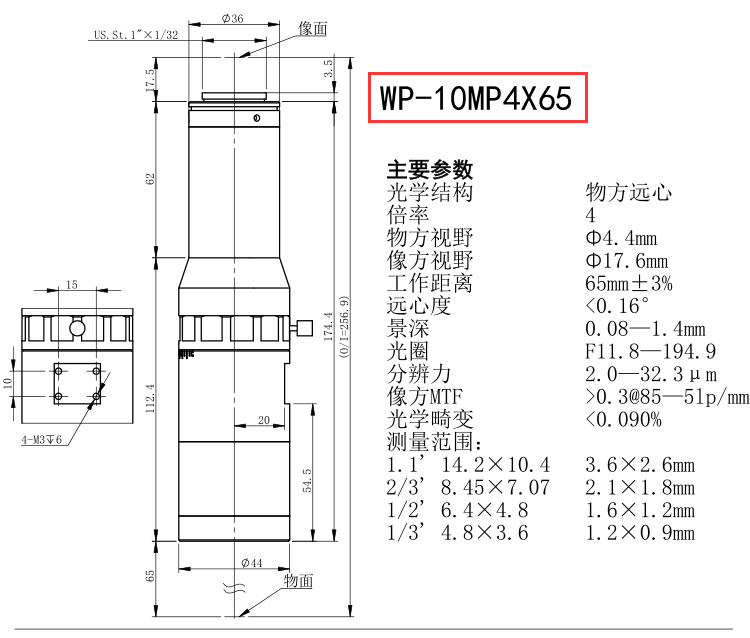

WP-10MP4X65/T同轴	4	65	0.090		0.08-1.4	2.0-32.3	3.2x2.4	3.55x2.6

（WP-10MP0.0475X700/WP-10MP0.0529X540/WP-10MP0.0597X500/WP-10MP0.0691X410/WP-10MP0.0777X410/WP-10MP0.095X400/WP-10MP0.102X398/WP-10MP0.122X320/WP-10MP0.135X280/WP-10MP0.152X260/WP-10MP0.168X250/WP-10MP0.202X250/WP-10MP0.231X180/WP-10MP0.284X160/WP-10MP0.336X138/WP-10MP0.411X120/WP-10MP0.504X110/WP-10MP1X65/WP-10MP1X65T/WP-10MP1X110/WP-10MP1X110T/WP-10MP1X178/WP-10MP1X178T/WP-10MP1.5X110/WP-10MP1.5X110T/WP-10MP2X65/WP-10MP2X65T/WP-10MP3X65/WP-10MP3X65T/WP-10MP4X65/T最大支持1.1英寸大靶面双侧工业远心镜头C口）

详细产品尺寸图及其他参数，请联系我们或在下载中心的产品手册下载！
