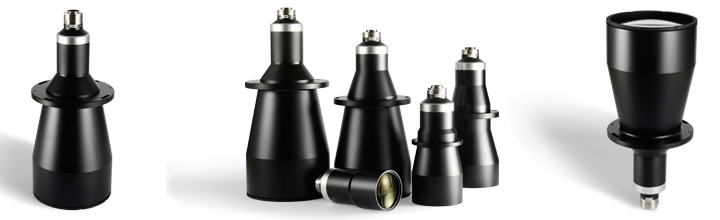

大视场4/3"靶面双侧远心镜头工业C口(WP-12M)

规格参数

产品型号 (双侧远心设计) 标准C接口	放大倍率 (X)	工作距离 (mm)	光学畸变 (%)	景深 (mm)	光圈	分辨力 (μm)	工业相机芯片尺寸对应的 FOV视野范围（mm x mm）
产品型号 (双侧远心设计) 标准C接口	放大倍率 (X)	工作距离 (mm)	光学畸变 (%)	景深 (mm)	光圈	分辨力 (μm)	1.1英寸 14.2x10.4	*2k10**μm	4/3英寸 18×13.5

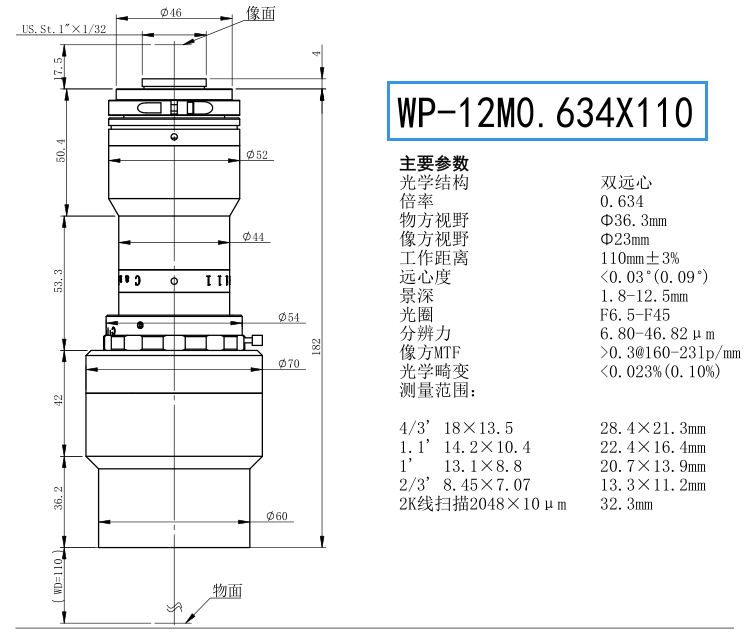

WP-12M0.634X110	0.634	110	0.023	1.8-12.5	F6.5-45	6.8-46.82	22.4x16.4	32.3	28.39x21.29

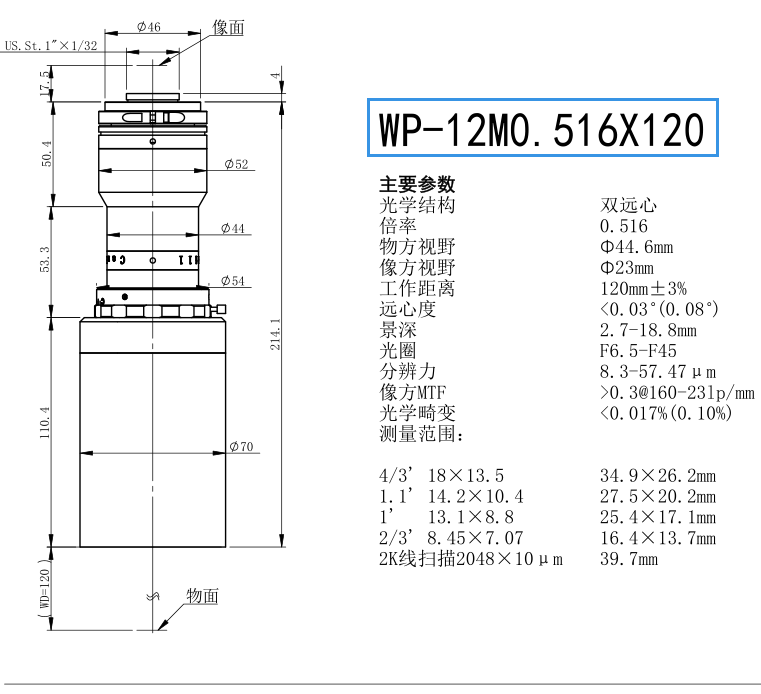

WP-12M0.516X120	0.516	120	0.017	2.7-18.8	F6.5-45	8.3-57.47	27.52x20.16	39.69	34.88x26.16

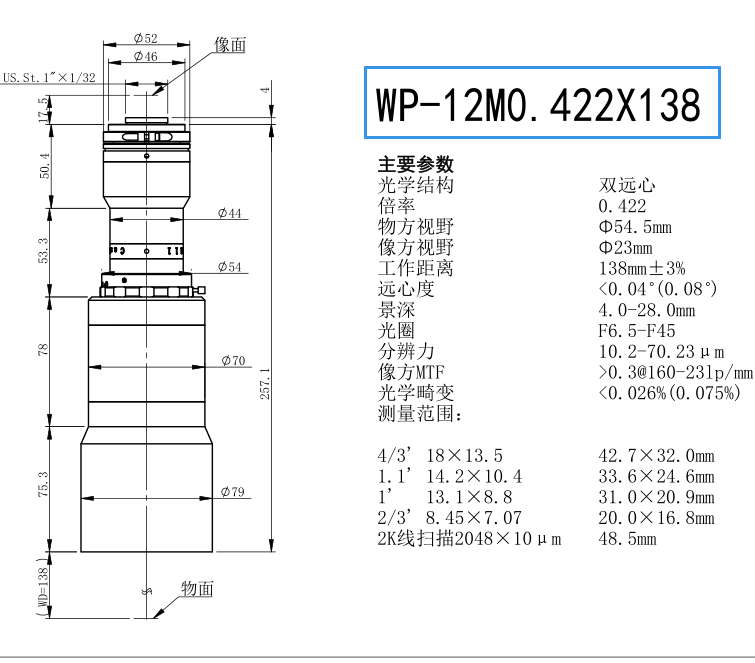

WP-12M0.422X138	0.422	138	0.026	4-28	F6.5-45	10.2-70.2	33.65x24.64	48.53	42.65x31.99
WP-12M0.357X160	0.357	160	0.013	5.6-39.2	F8	12-83.11	39.78x29.13	57.37	50.42x37.82
WP-12M0.29X180	0.29	180	0.013	10.5	F8	18.18	48.97x35.86	70.62	62.07x46.55

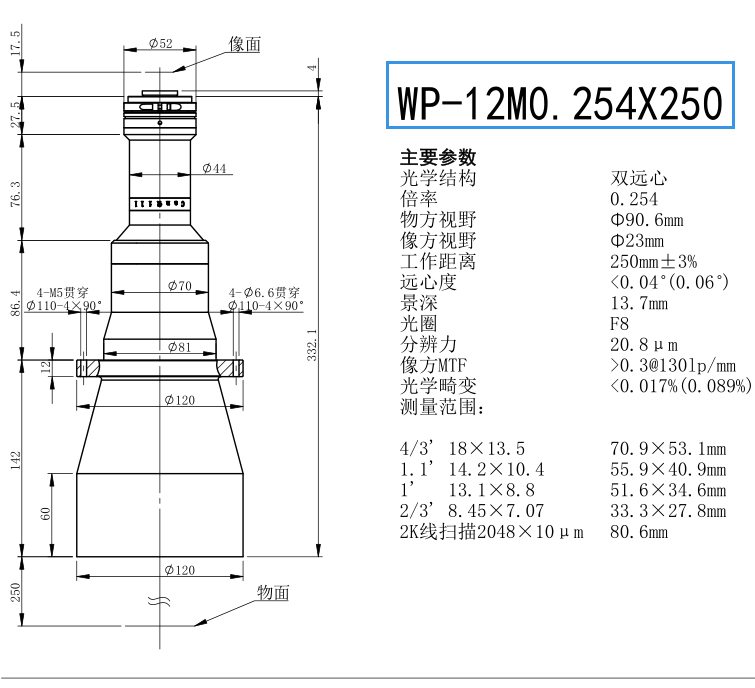

WP-12M0.254X250	0.254	250	0.017	13.7	F8	20.8	55.91x40.94	80.63	70.87x53.15

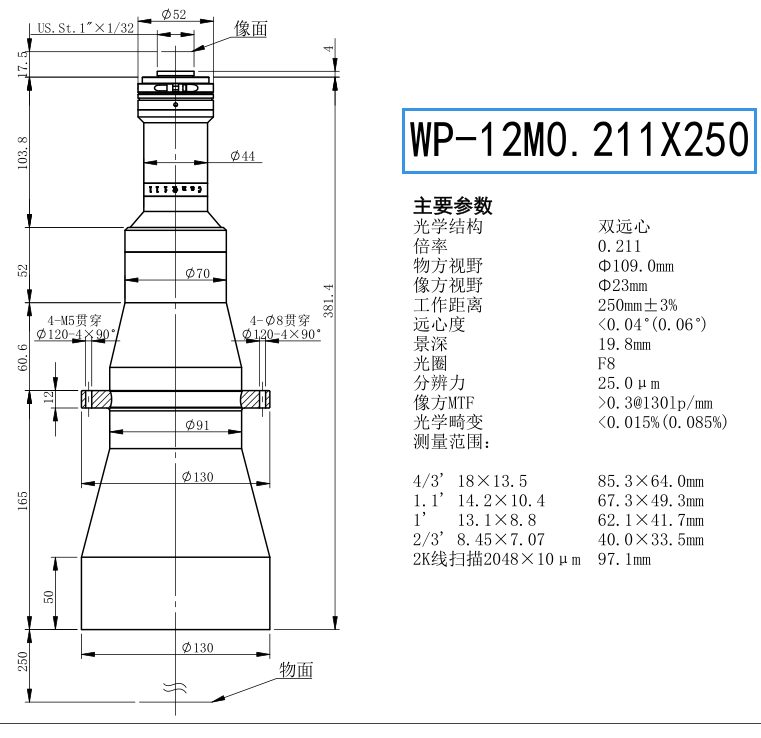

WP-12M0.211X250	0.211	250	0.015	19.8	F8	25.0	67.3x49.29	97.06	85.31x63.98

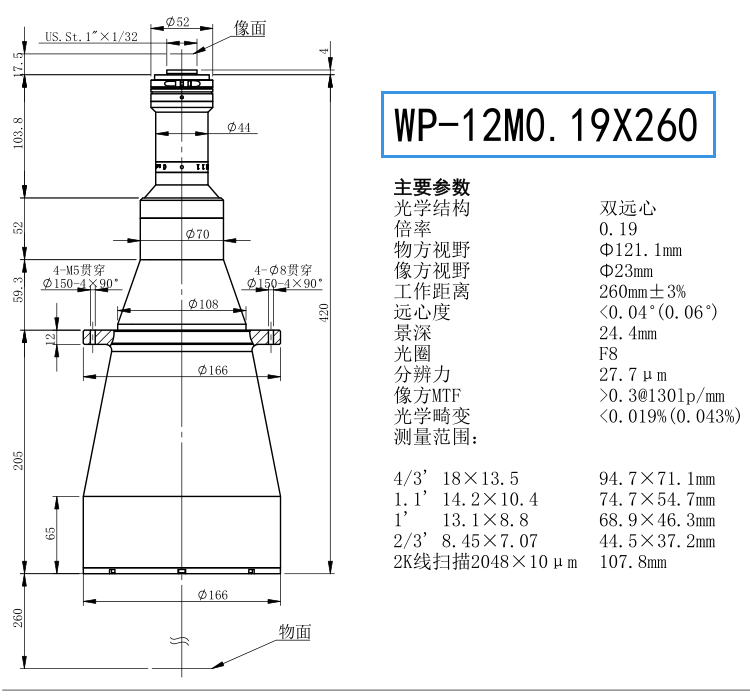

WP-12M0.19X260	0.19	260	0.019	24.4	F8	27.7	74.74x54.74	107.79	94.74x71.05

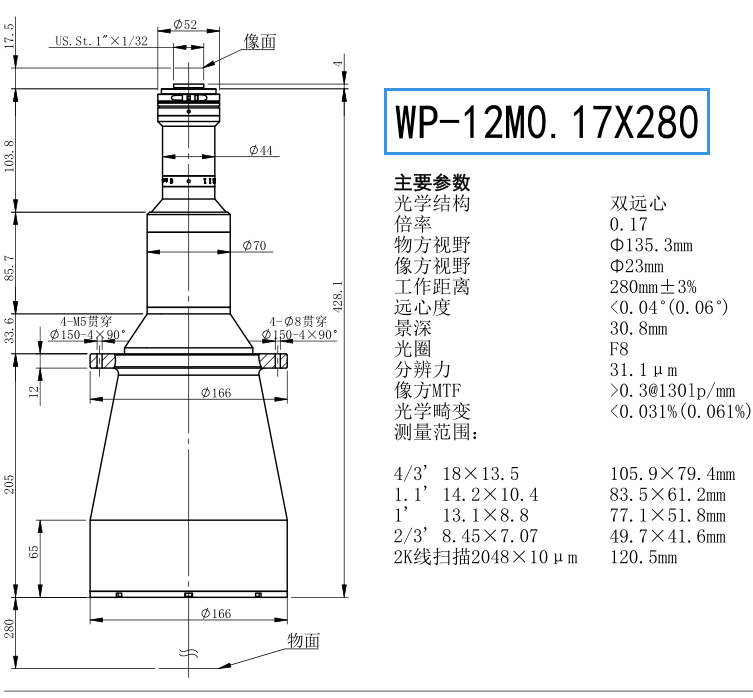

WP-12M0.17X280	0.17	280	0.031	30.8	F8	31.1	83.53x61.18	120.47	105.88x79.41

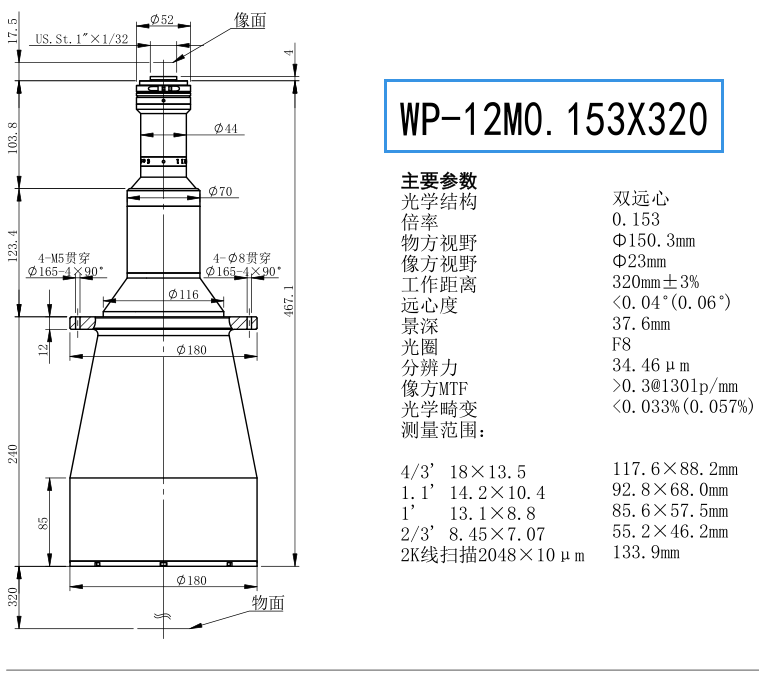

WP-12M0.153X320	0.153	320	0.033	37.6	F8	34.46	92.81x67.97	133.86	117.65x88.2

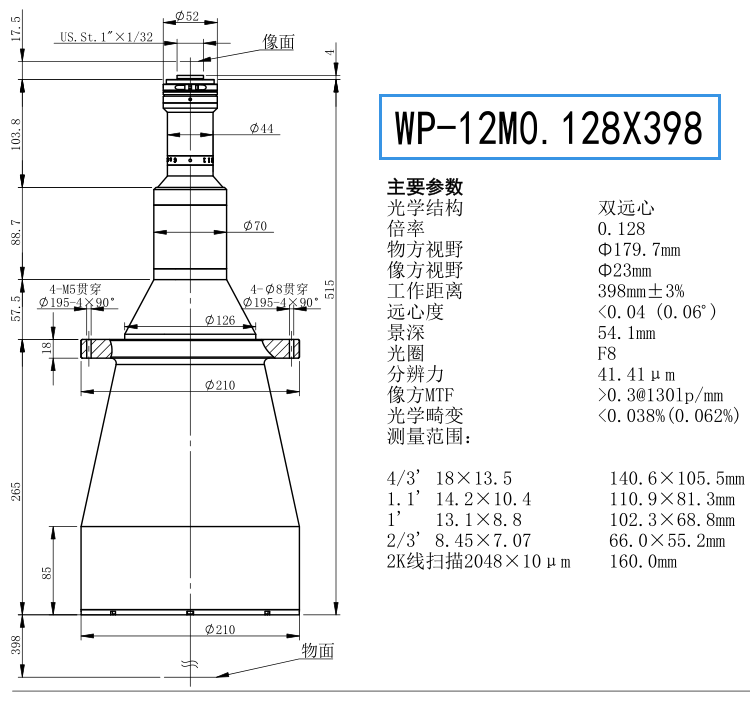

WP-12M0.128X398	0.128	398	0.038	54.1	F8	41.41	110.94x81.25	160	140.6x105.4

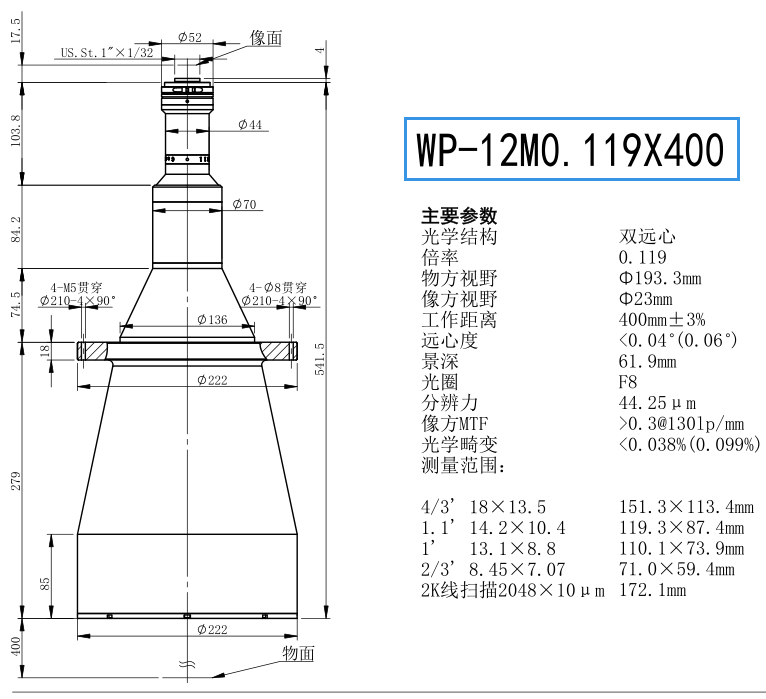

WP-12M0.119X400	0.119	400	0.038	61.9	F8	44.25	119.33x87.39	172.1	151.2x113.4

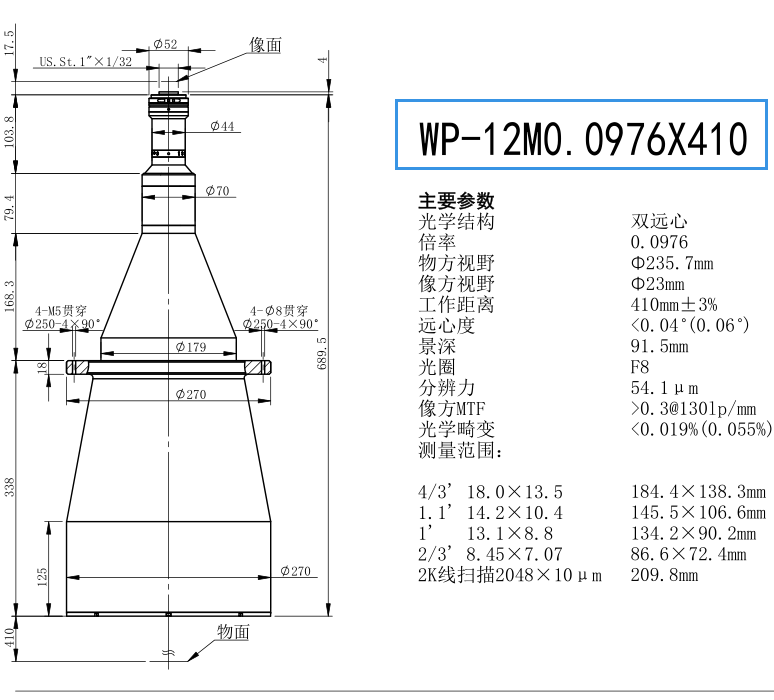

WP-12M0.0976X410	0.0976	410	0.019	91.5	F8	54.10	145.49x106.56	209.84	184.4x138.3

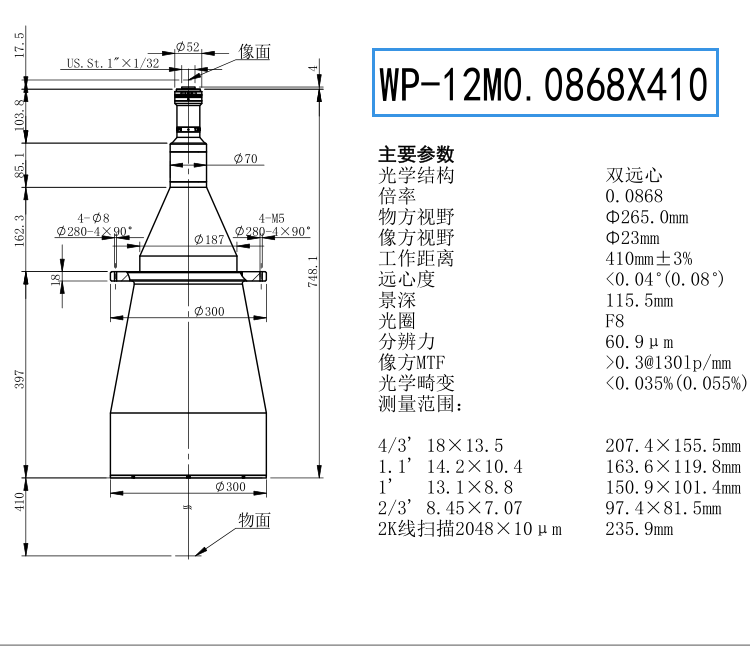

WP-12M0.0868X410	0.0868	410	0.035	115.5	F8	60.9	163.59x119.82	235.94	207.3x155.5

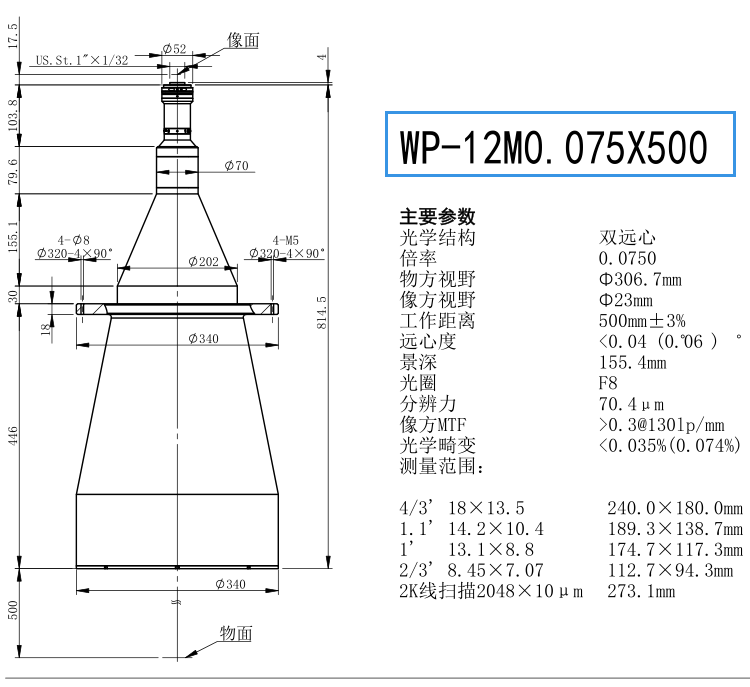

WP-12M0.075X500	0.075	500	0.035	155.4	F8	70.4	189.33x138.67	273.07	240x180

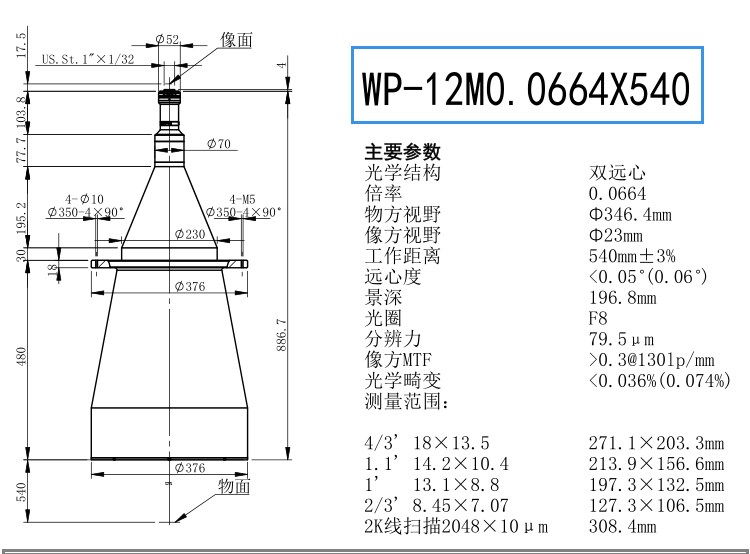

WP-12M0.0664X540	0.0644	540	0.036	196.8	F8	79.5	213.68x156.63	308.43	271.1x203.3

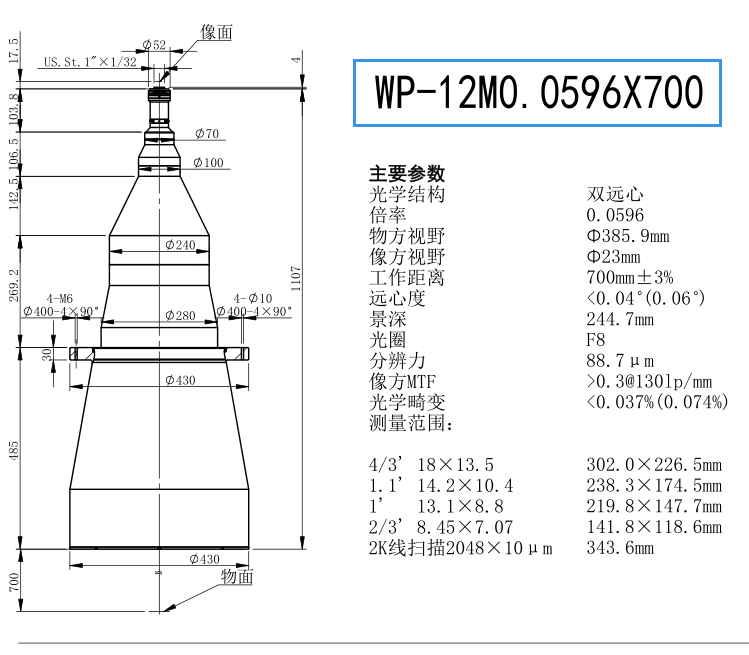

WP-12M0.0596X700	0.0596	700	0.037	244.7	F8	88.7	238.26x174.5	343.62	302.0x226.5
