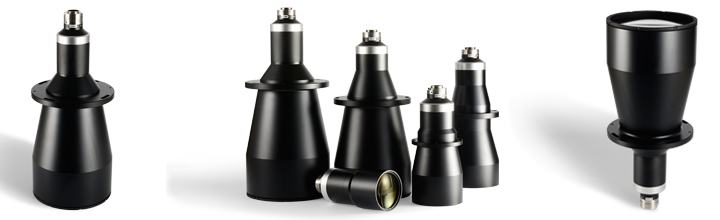

大面阵1"靶面双侧远心工业镜头C口(WP-10M系列)

规格参数

产品型号 (双侧远心镜头) 相机接口：C接口	放大倍率（X）	工作距离 (mm)	景深 (mm)	光圈	分辨力 (μm)	工业相机芯片尺寸对应的 *FOV视野范围(mm mm)**
产品型号 (双侧远心镜头) 相机接口：C接口	放大倍率（X）	工作距离 (mm)	景深 (mm)	光圈	分辨力 (μm)	2/3英寸 8.45×7.07	1英寸 12.8×9.6	1英寸 13.1×8.8

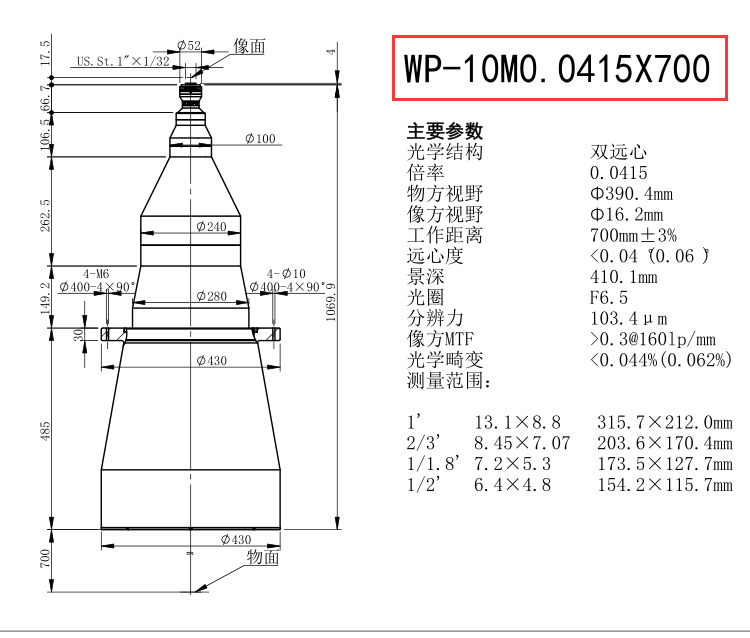

WP-10M0.0415X700	0.0415	700	410.1	F6.5	103.4	203.6*170.3	308.4*231.3	315.7*212

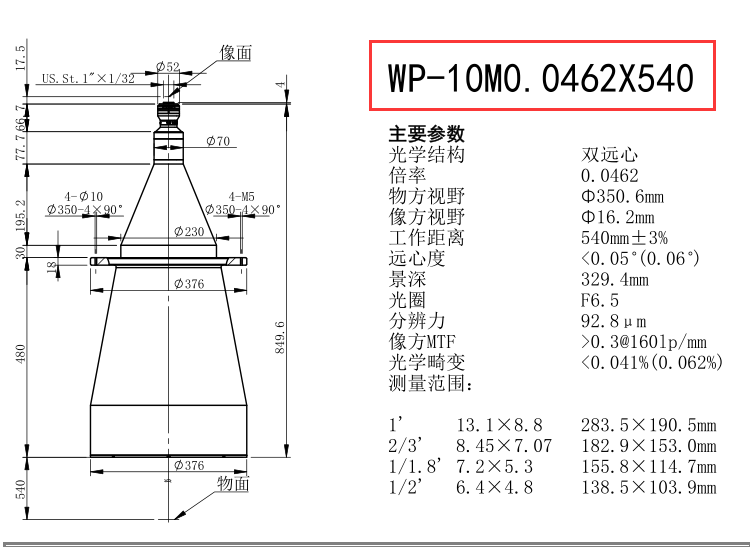

WP-10M0.0462X540	0.0462	540	329.4	F6.5	92.8	182.9*153.03	277.1*207.8	283.5*190.5
WP-10M0.0522X500	0.0522	500	261.0	F6.5	82.2	161.88*135.44	245.2*183.9	251*168.6

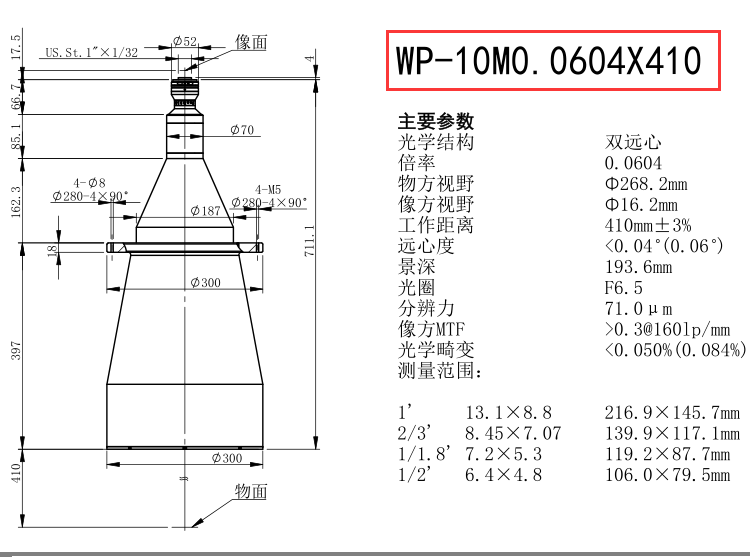

WP-10M0.0604X410	0.0604	410	193.6	F6.5	71.0	139.9*117.0	211.9*158.9	216.9*145.7

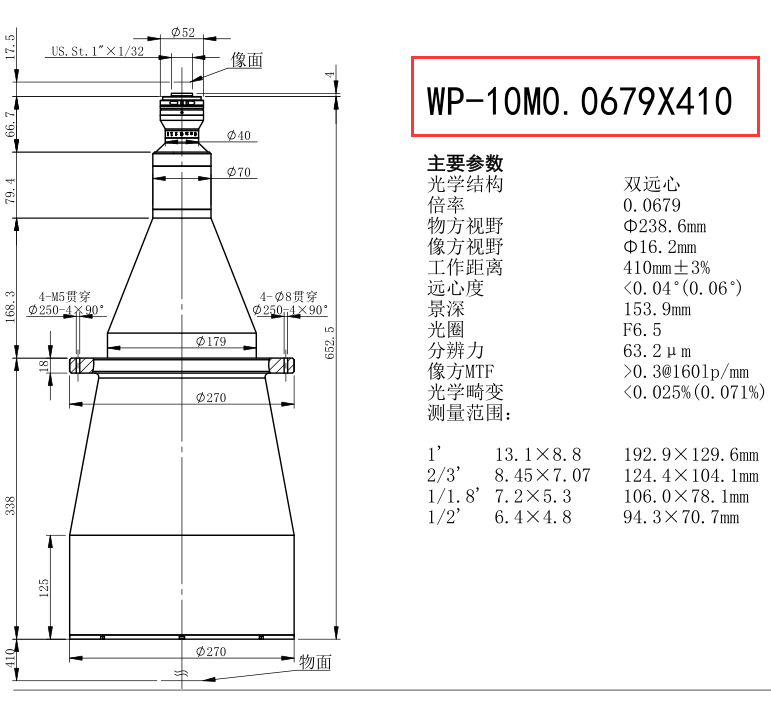

WP-10M0.0679X410	0.0679	410	153.9	F6.5	63.2	124.45*104	188.5*141.4	192.9*129.6

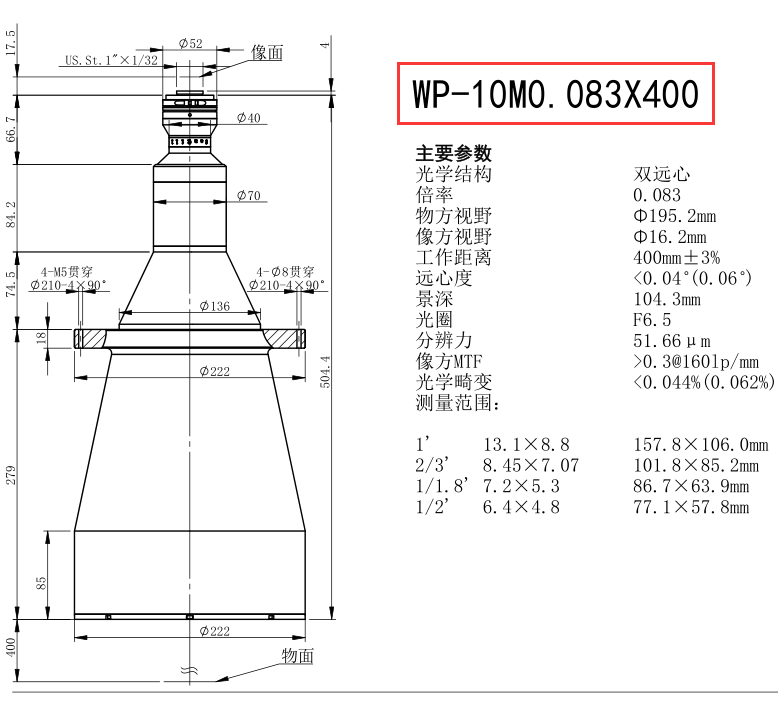

WP-10M0.083X400	0.083	400	104.3	F6.5	51.66	101.8*85.18	154.2*115.7	157.83*106

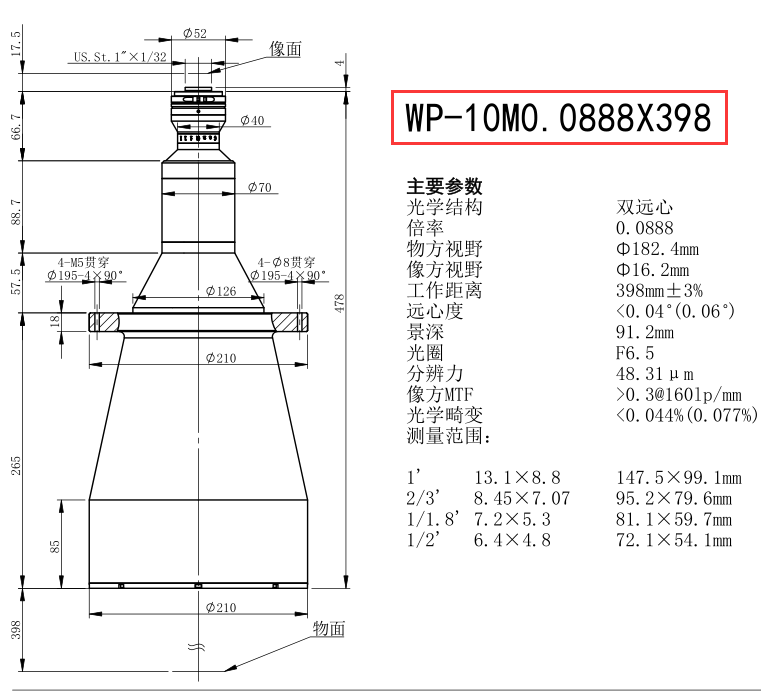

WP-10M0.0888X398	0.0888	398	91.2	F6.5	48.31	95.16*79.62	144.1*108.1	147.52*99.1

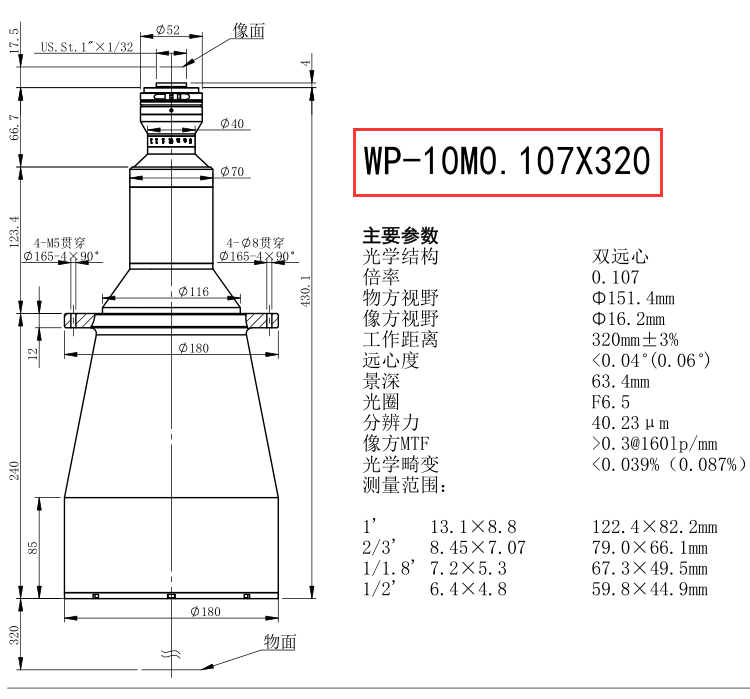

WP-10M0.107X320	0.107	320	63.4	F6.5	40.23	78.97*66.07	119.63*89.7	122.43*82.2

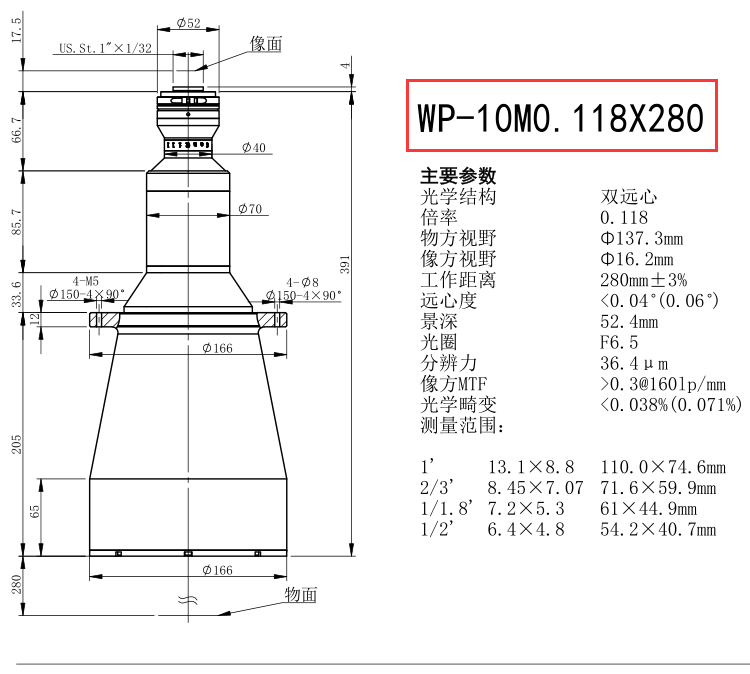

WP-10M0.118X280	0.118	280	52.4	F6.5	36.4	71.61*59.92	108.5*81.36	111.02*74.6

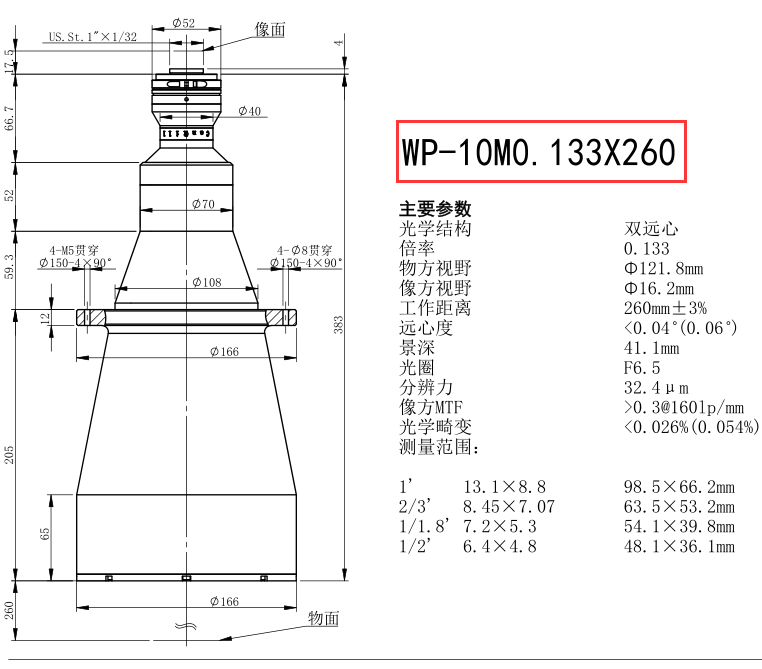

WP-10M0.133X260	0.133	260	41.1	F6.5	32.4	63.53*53.16	96.24*72.18	98.5*66.17

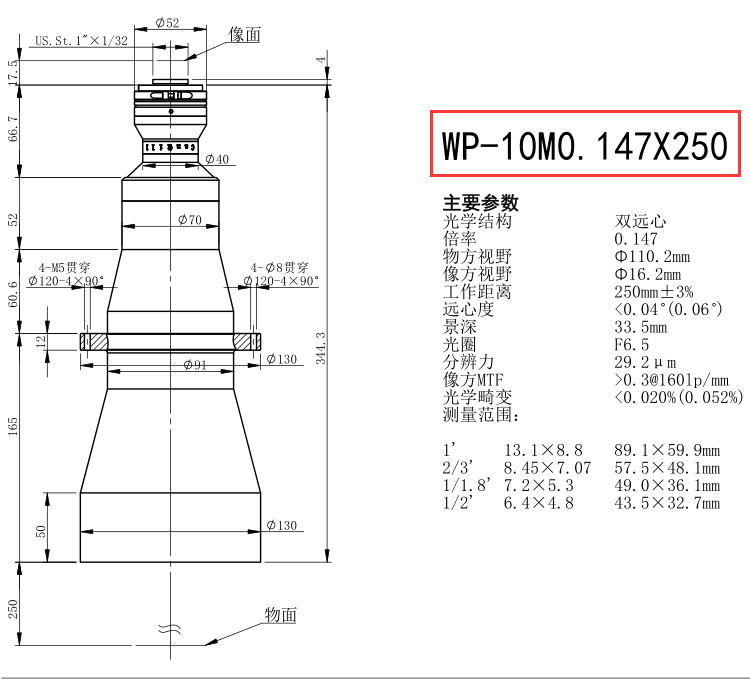

WP-10M0.147X250	0.147	250	33.5	F6.5	29.2	57.48*48.1	87.07*65.31	89.12*59.86

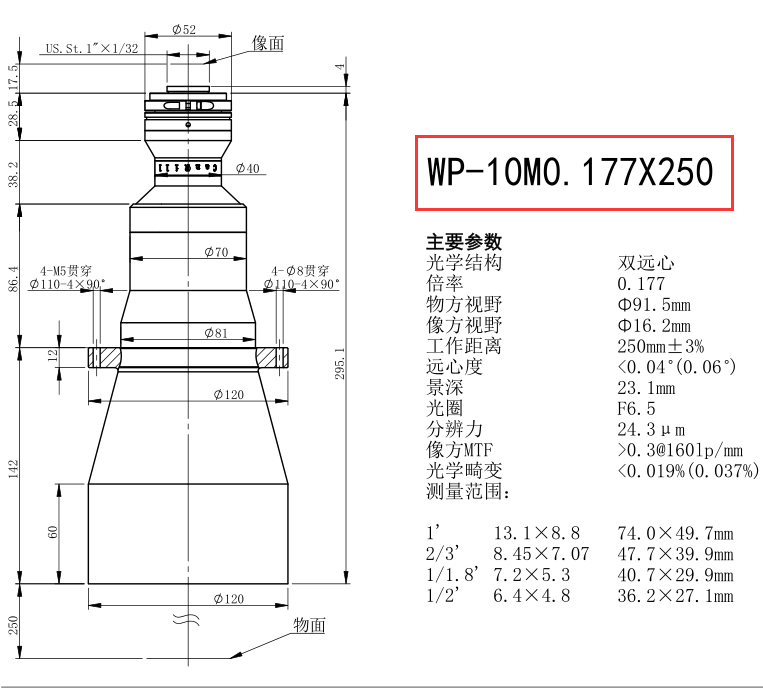

WP-10M0.177X250	0.177	250	23.1	F6.5	24.3	47.74*39.94	72.32*54.24	74.01*49.72

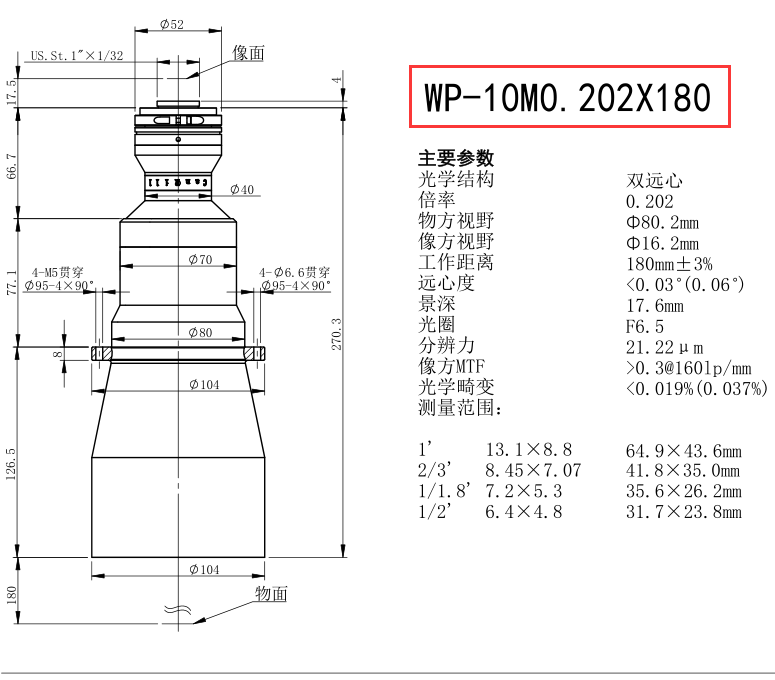

WP-10M0.202X180	0.202	180	17.6	F6.5	21.22	41.83*35	63.37*47.52	64.85*43.56

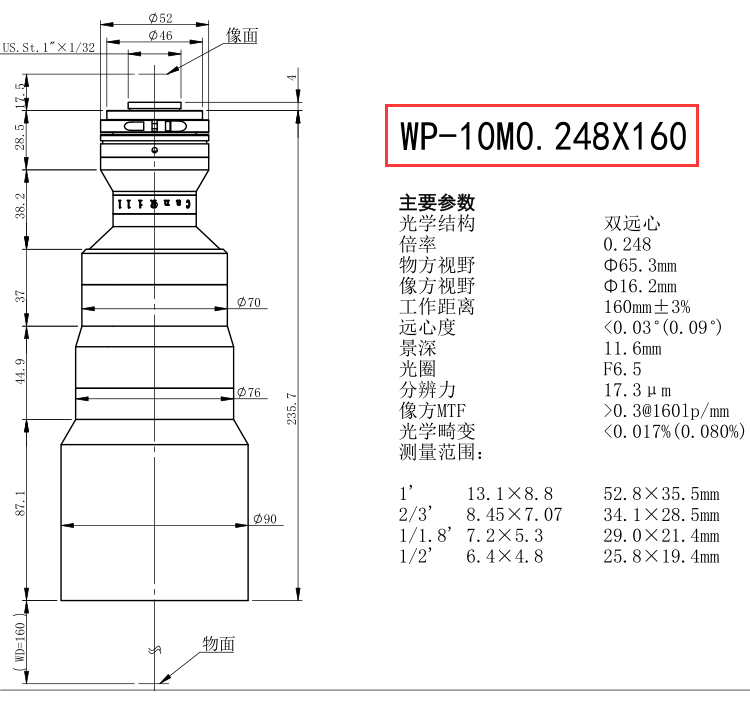

WP-10M0.248X160	0.248	160	11.6	F6.5	17.3	34.07*28.51	51.61*38.71	52.82*35.48

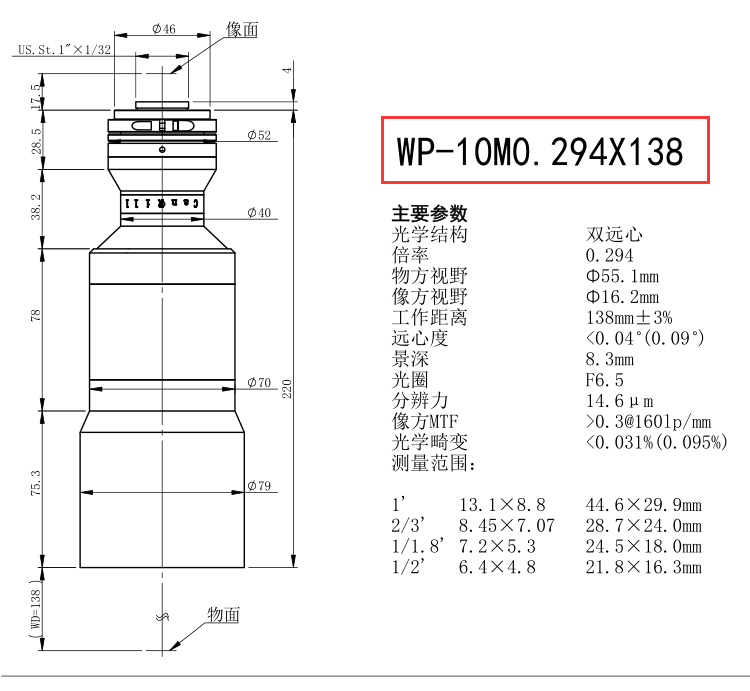

WP-10M0.294X138	0.294	138	8.3	F6.5	14.6	28.74*24.05	43.54*32.65	44.56*29.93

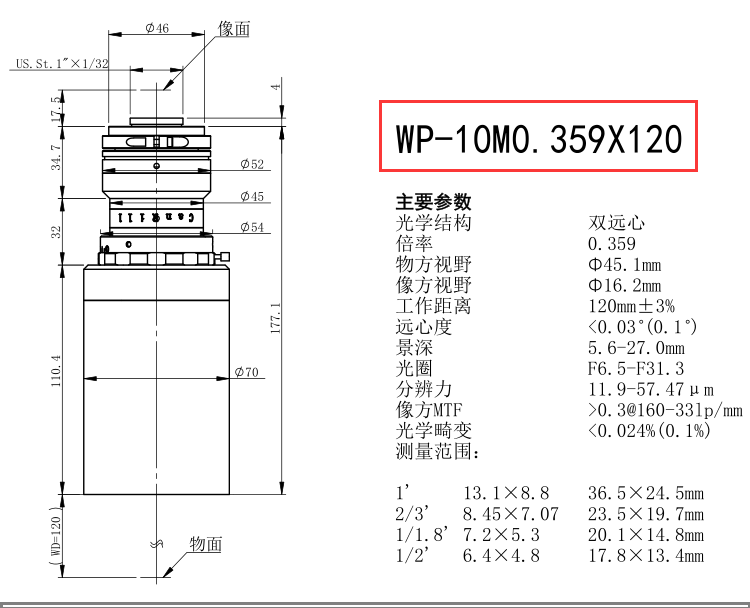

WP-10M0.359X120	0.359	120	5.6-27	6.5-31	12-57	23.54*19.69	35.65*26.74	36.49*24.51

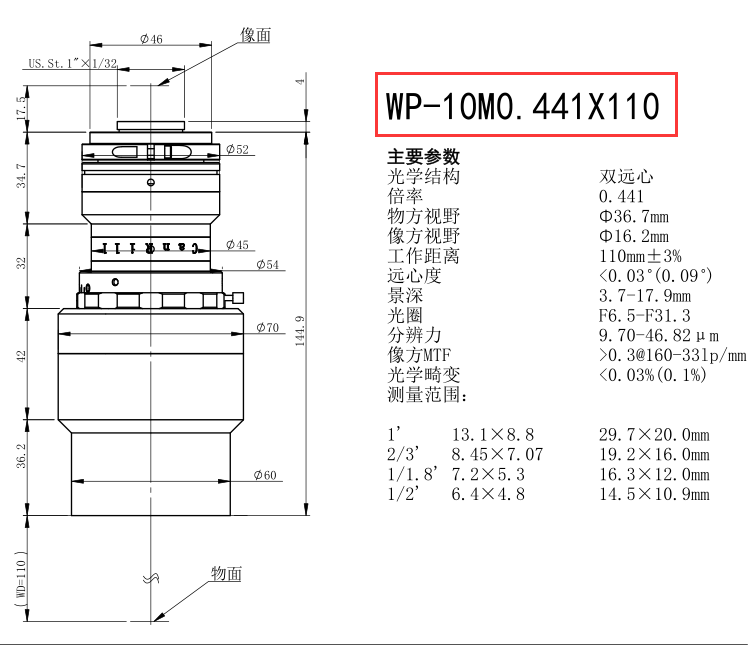

WP-10M0.441X110	0.441	110	3.7-18	6.5-31	9.7-47	19.16*16.03	29.02*21.77	29.71*19.95

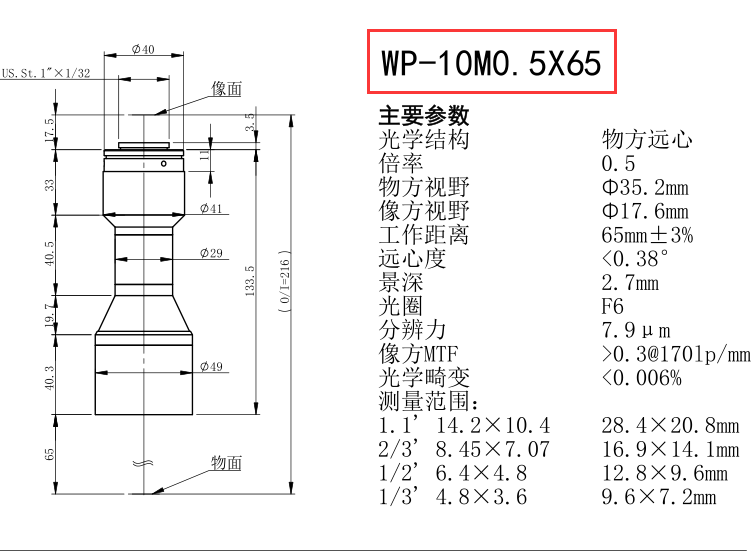

WP-10M0.5X65	0.5	65	2.7	F6	7.9	16.9*14.14	25.6*19.2	26.2*17.6

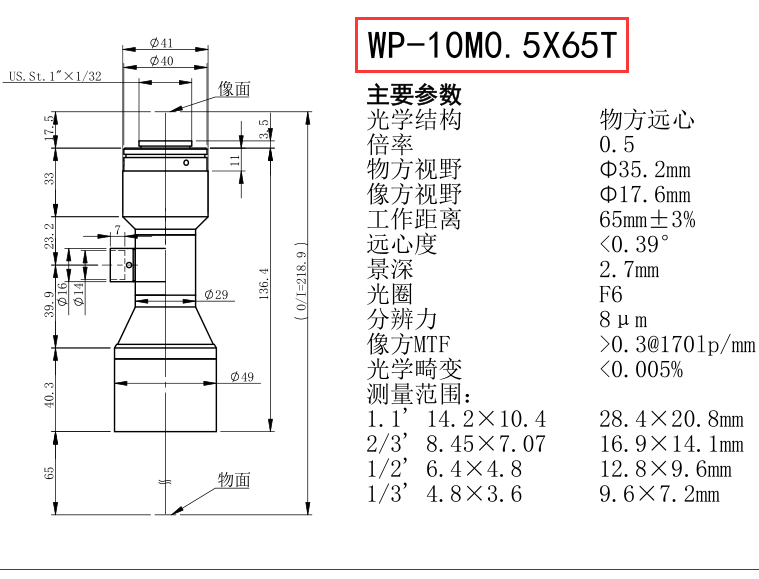

WP-10M0.5X65T同轴	0.5	65	2.7	F6	8	16.9*14.14	25.6*19.2	26.2*17.6

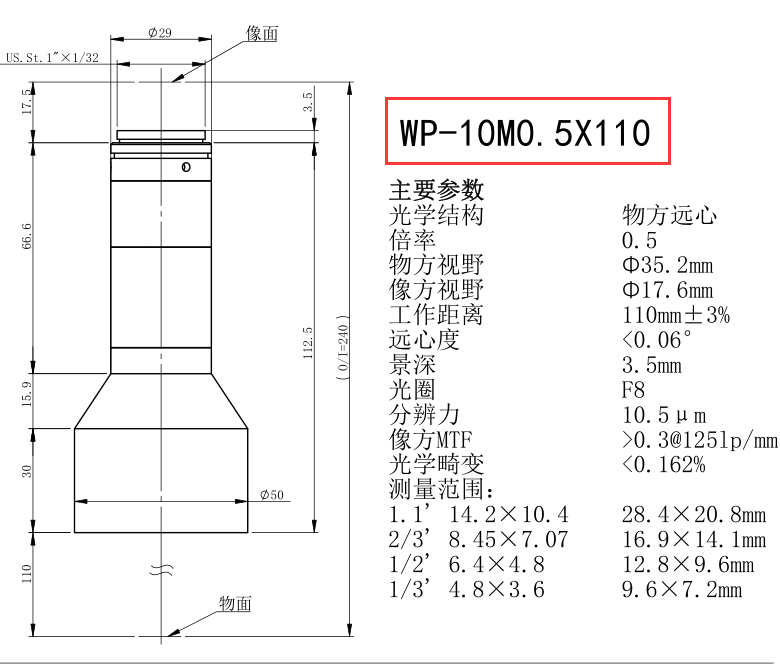

WP-10M0.5X110	0.5	110	3.5	F8	10.5	16.9*14.14	25.6*19.2	26.2*17.6

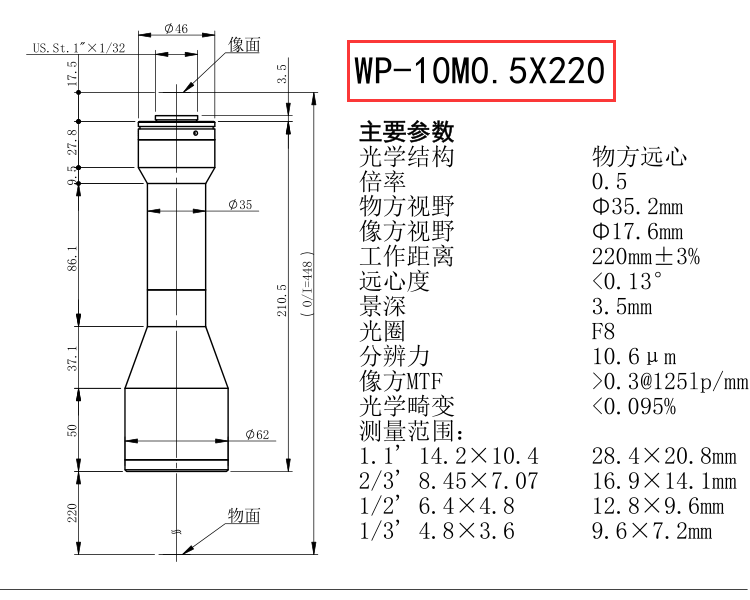

WP-10M0.5X220	0.5	220	3.5	F8	10.6	16.9*14.14	25.6*19.2	26.2*17.6

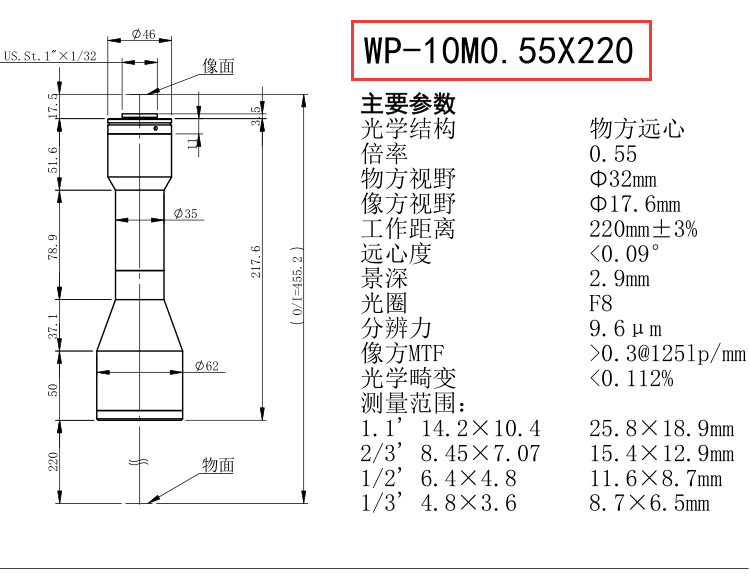

WP-10M0.55X220	0.55	220	2.9	F8	9.6	15.36*12.85	23.3*17.45	23.82*16

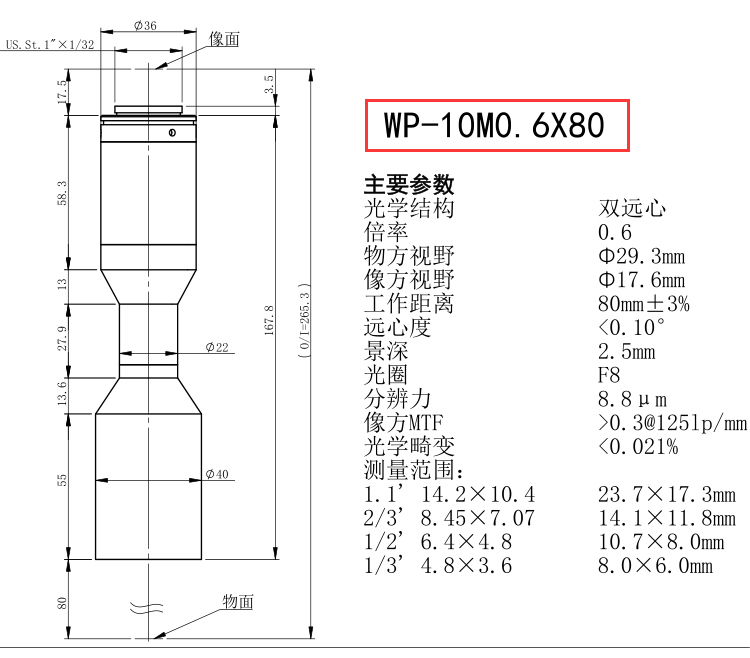

WP-10M0.6X80	0.6	80	2.5	F8	8.8	14.08*11.78	21.33*16	21.83*14.67

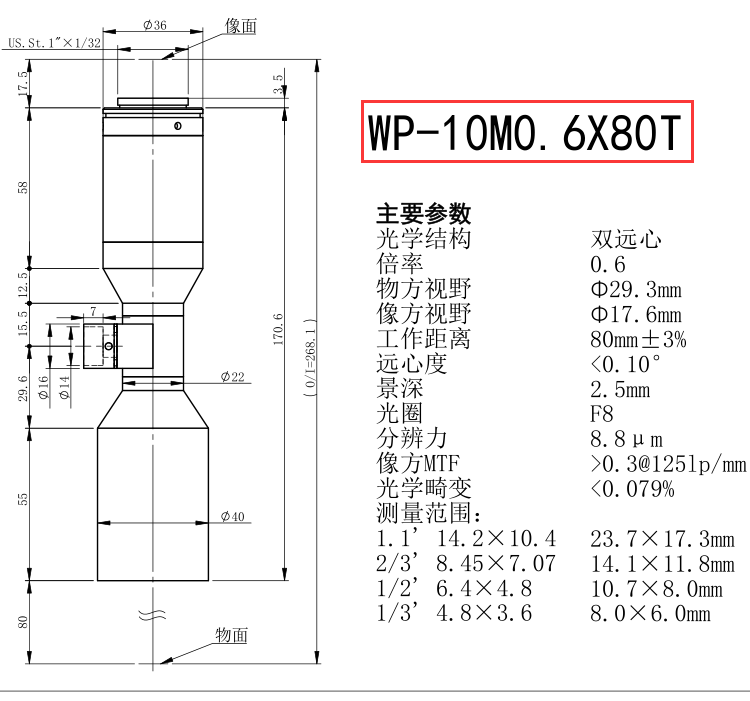

WP-10M0.6X80T同轴	0.6	80	2.5	F8	8.8	14.08*11.78	21.33*16	21.83*14.67

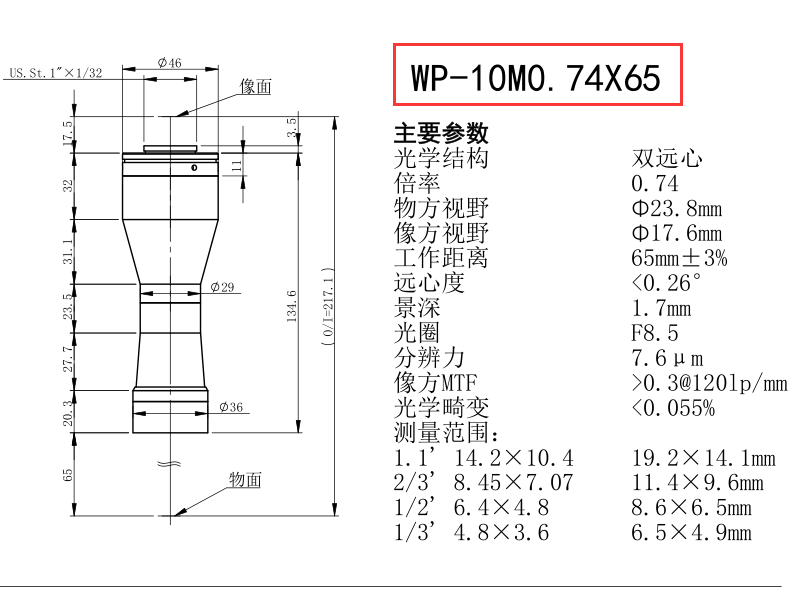

WP-10M0.74X65	0.74	65	1.7	F8.5	7.6	11.42*9.55	17.3*12.97	17.7*11.89
WP-10M0.74X65T同轴	0.74	65	1.7	F8.5	7.6	11.42*9.55	17.3*12.97	17.7*11.89

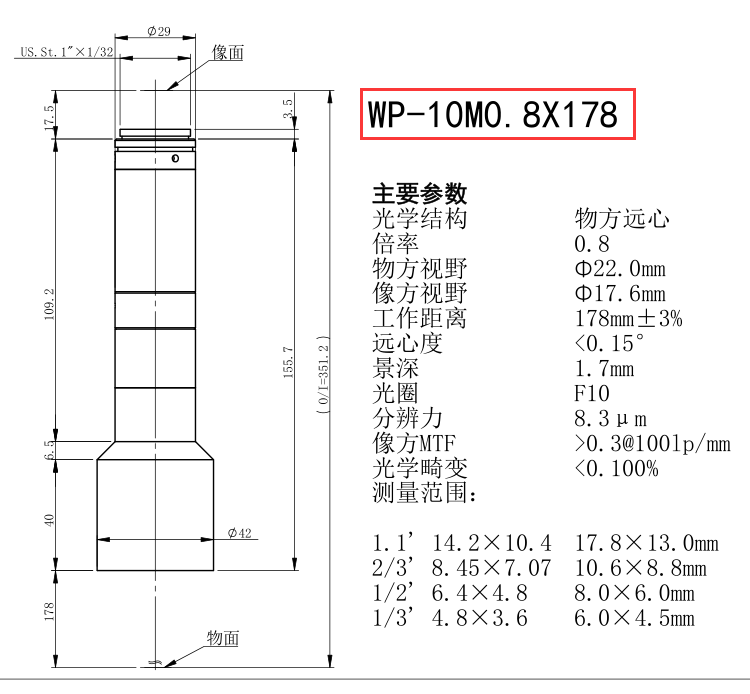

WP-10M0.8X178	0.8	178	1.7	F10	8.3	10.56*8.84	16*12	16.38*11

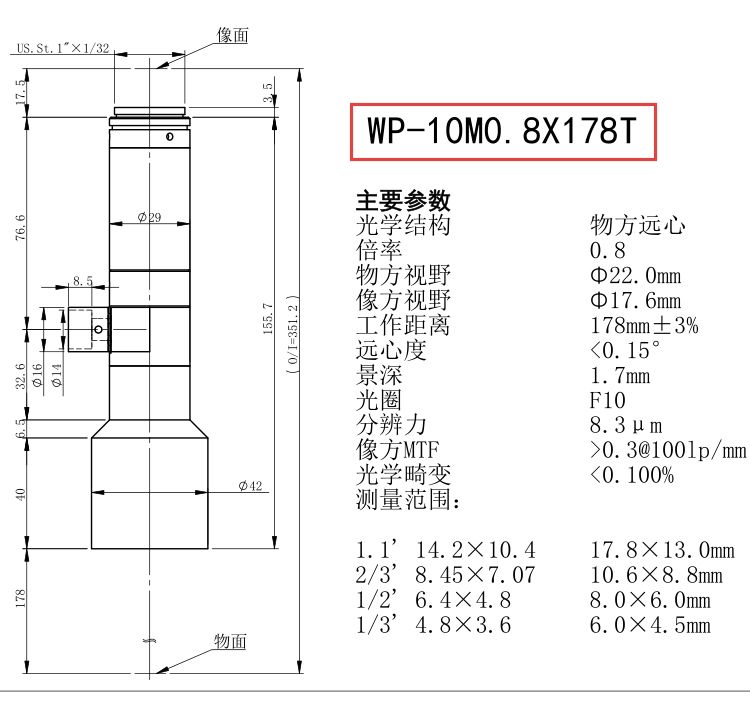

WP-10M0.8X178T同轴	0.8	178	1.7	F10	8.3	10.56*8.84	16*12	16.38*11

（WP-10M0.0415X700/WP-10M0.0462X540/WP-10M0.0522X500/WP-10M0.0604X410/WP-10M0.0679X410/WP-10M0.083X400/WP/10M0.0888X398/WP-10M0.107X320/WP-10M0.118X280/WP-10M0.133X260/WP-10M0.147X250/WP-10M0.177X250/WP-10M0.202X180/WP-10M0.248X160/WP-10M0.294X138/WP-10M0.359X120/WP-10M0.441X110/WP-10M0.5X65/WP-10M0.5X65T同轴/WP-10M0.5X110/WP-10M0.5X220/WP-10M0.55X220/WP-10M0.6X80/WP-10M0.6X80T同轴/WP-10M0.74X65/WP-10M0.74X65T同轴/WP-10M0.8X178/WP-10M0.8X178T同轴大面阵1英寸靶面双侧工业远心镜头）

详细产品尺寸图及其他参数，请联系我们或在下载中心的产品手册自行下载！
