大视场2/3"靶面双侧远心工业镜头C口WP-5M系列

规格参数

镜头型号（双侧远心）标准C口	倍率（X）	工作距离 (mm)	景深 (mm)	光圈	分辨力 (μm)	工业相机芯片尺寸对应的 *FOV视野范围（mm mm）**
镜头型号（双侧远心）标准C口	倍率（X）	工作距离 (mm)	景深 (mm)	光圈	分辨力 (μm)	1/2英寸 6.4*4.8	1/1.8英寸 *7.25.3**	2/3英寸 8.45*7.07
WP-5M0.0282X700	0.0282	700	1028	F8	187.50	226.95*170	255.32*187.9	299.65*250.7
WP-5M0.03X540	0.0315	540	817.6	F8	167.8	203.17*152.4	228.57*168.3	268.25*224
WP-5M0.0355X500	0.0355	500	666.1	F8	148.7	180.28*135.2	202.82*149.3	238.03*199
WP-5M0.04X410	0.0411	410	484.6	F8	128.5	155.72*116.8	175.18*129	205.6*172

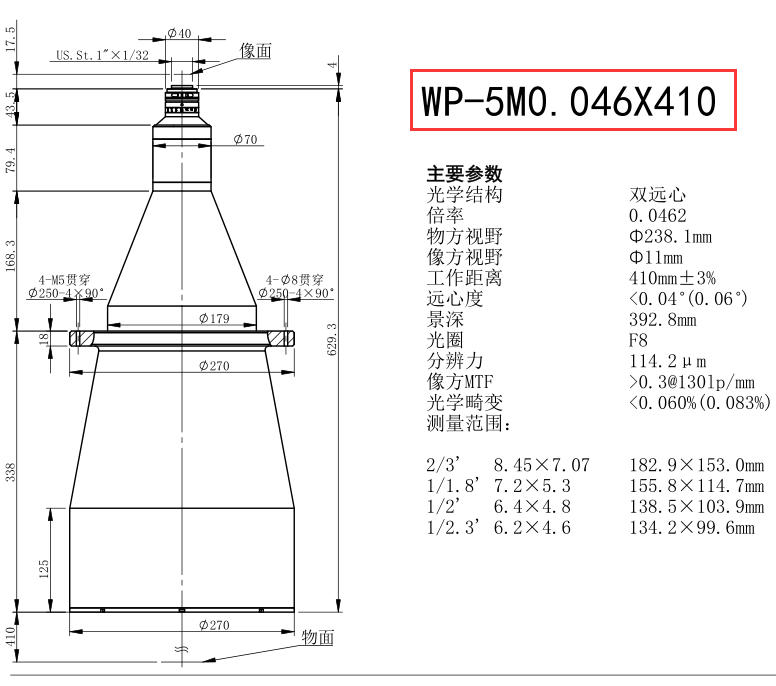

WP-5M0.046X410	0.0462	410	392.8	F8	114.2	138.53*104	155.84*115	182.9*153.
WP-5M0.056X400	0.0565	400	273.0	F8	93.46	113.27*85	127.43*93.81	149.56*125

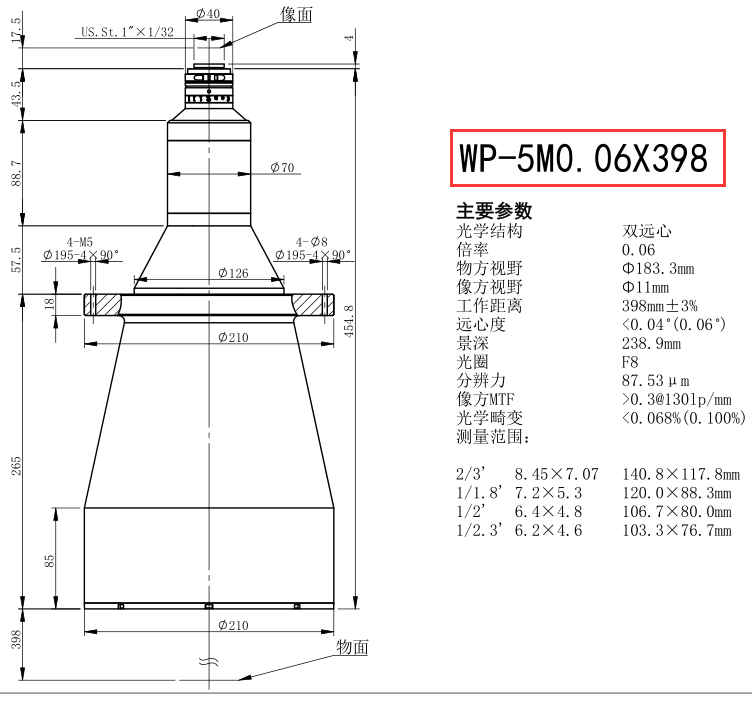

WP-5M0.06X398	0.06	398	238.9	F8	87.53	106.67*80	120*88.33	140.83*118
WP-5M0.072X320	0.0725	320	166.7	F8	72.78	88.28*66.21	99.31*73.1	116.55*97.5
WP-5M0.08X280	0.08	280	136.2	F8	66.00	80*60	90*66.25	105.63*88.4
WP-5M0.09X260	0.09	260	108.1	F8	58.6	71.11*53.33	80*58.89	93.89*78.56
WP-5M0.1X250	0.1	250	88.2	F8	52.9	64*48	72*53	84.5*70.7
WP-5M0.12X250	0.12	250	60.9	F8	44.0	53.33*40	60*44.17	70.42*58.92
WP-5M0.138X180	0.138	180	46.5	F8	38.39	46.38*34.78	52.17*38.41	61.23*51.23
WP-5M0.14X178	0.14	178	45.3	F8	37.7	45.7*34.3	51.4*37.8	60.4*50.5

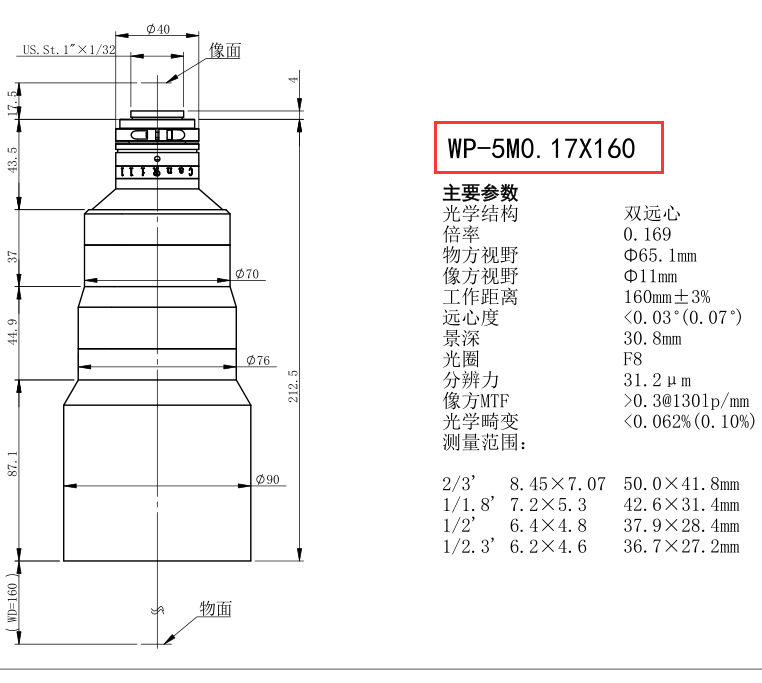

WP-5M0.17X160	0.169	160	30.8	F8	31.2	37.87*28.4	42.6*31.36	50*41.83

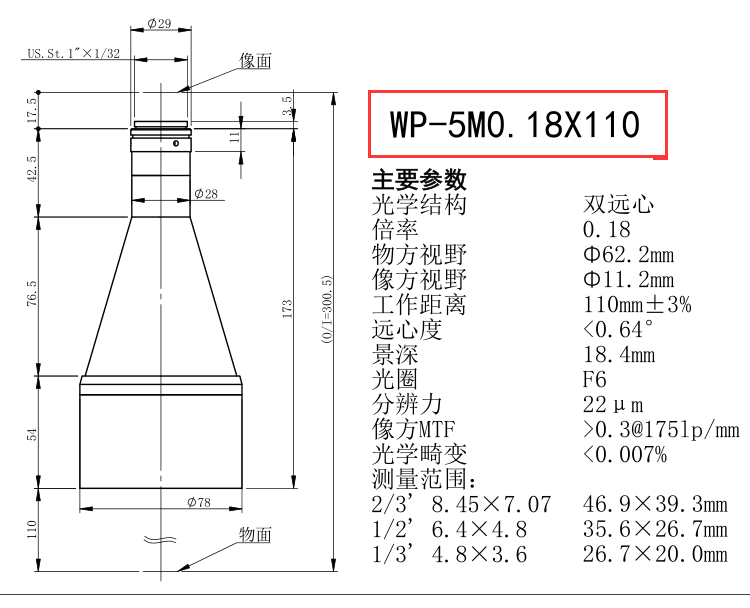

WP-5M0.18X110	0.18	110	18.4	F6	22	35.6*26.7	40*29.44	46.9*39.3
WP-5M0.18X178	0.18	178	27.7	F8	29.3	35.6*26.7	40*29.44	46.9*39.3
WP-5M0.2X138	0.2	138	22.0	F8	26.40	32*24	36*26.5	42.25*35.35

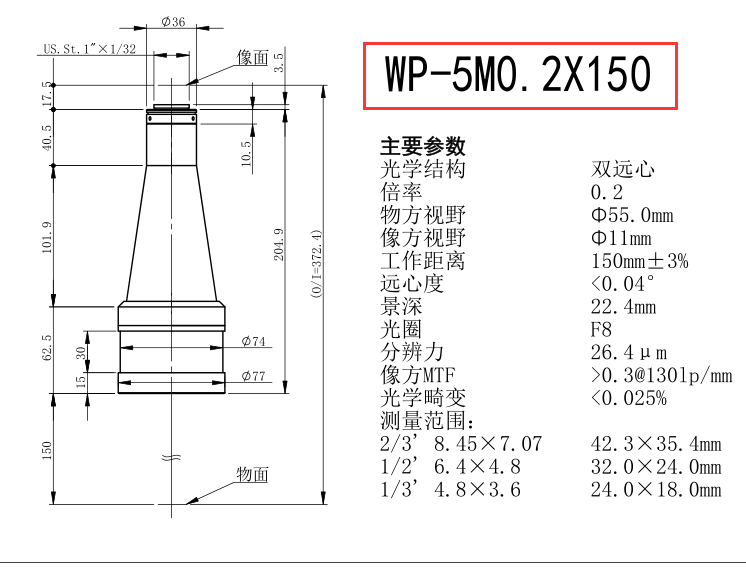

WP-5M0.2X150	0.2	150	22.4	F8	26.40	32*24	36*26.5	42.25*35.35

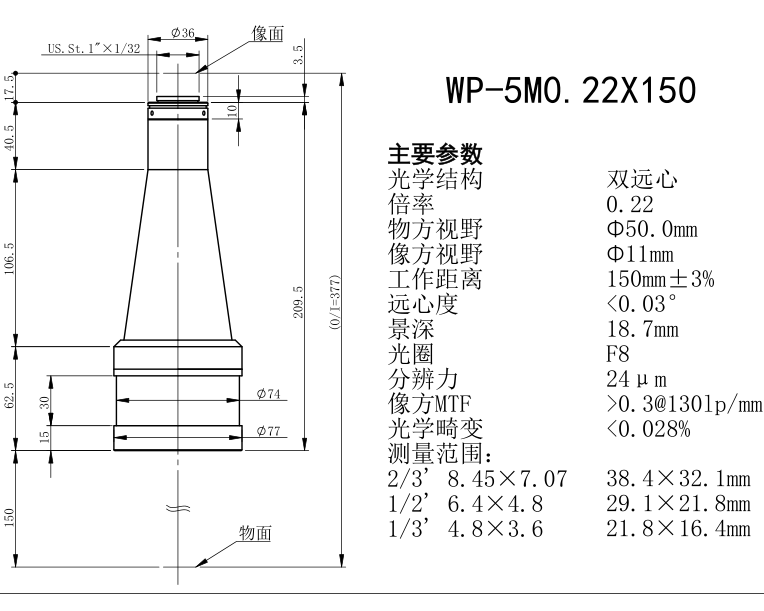

WP-5M0.22X150	0.22	150	18.7	F8	24	29.1*21.8	32.7*24.1	38.4*32.1

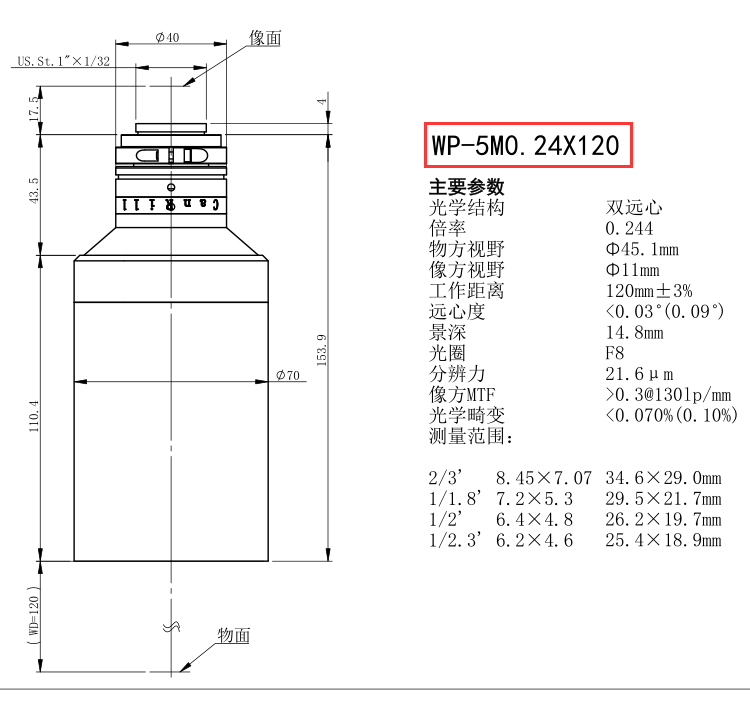

WP-5M0.24X120	0.244	120	14.8	F8	21.60	26.23*19.67	29.51*21.72	34.63*28.98

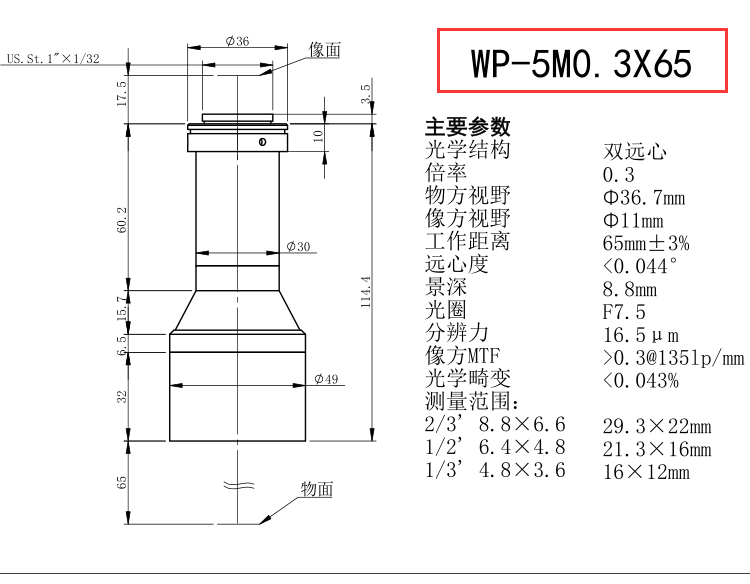

WP-5M0.3X65	0.3	65	8.8	F7.5	16.5	21.33*16	24*17.67	28.17*23.57
WP-5M0.3X110	0.3	110	9.1	F7.5	16.4	21.33*16	24*17.67	28.17*23.57

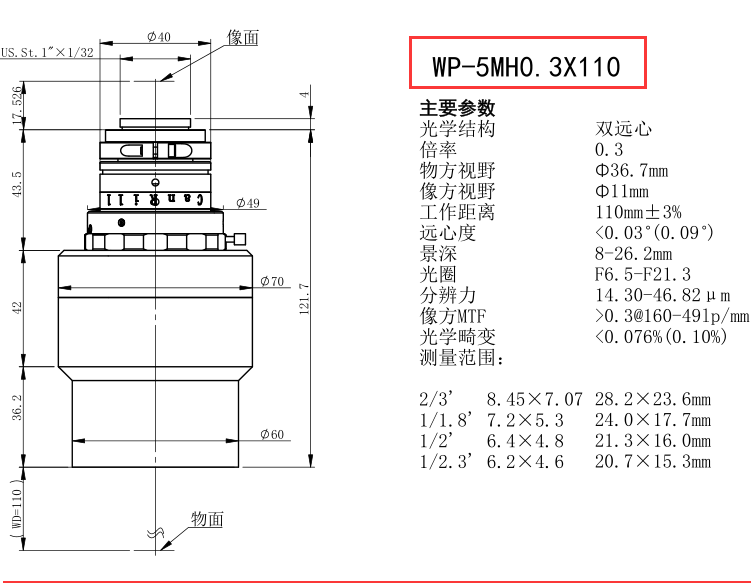

WP-5MH0.3X110	0.3	110	8-26.2	F6.5- F21.3	14.3- 46.82	21.33*16	24*17.67	28.17*23.57

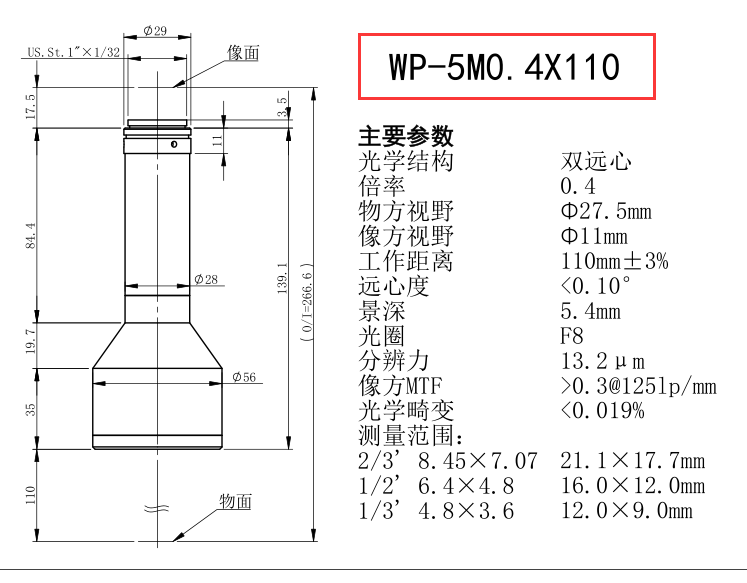

WP-5M0.4X110	0.4	110	5.4	F8	13.2	16*12	19*13.25	21.13*17.68

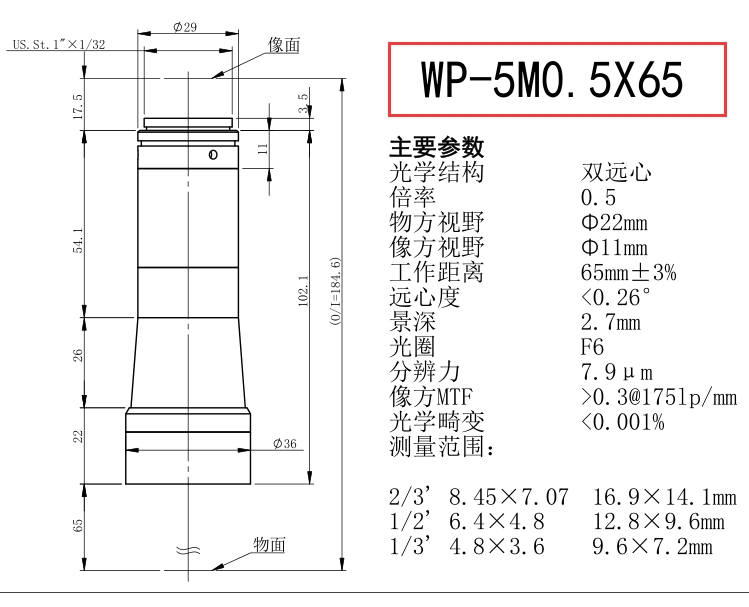

WP-5M0.5X65	0.5	65	2.7	F6	7.9	12.8*9.6	14.4*10.6	16.9*14.14

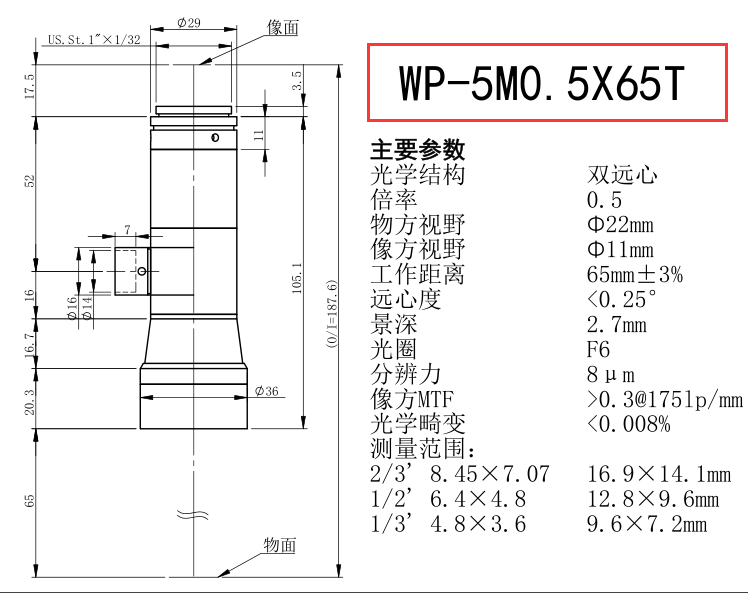

WP-5M0.5X65T同轴	0.5	65	2.7	F6	8	12.8*9.6	14.4*10.6	16.9*14.14
WP-5M0.5X178	0.5	178	3.1	F7	9.2	12.8*9.6	14.4*10.6	16.9*14.14
WP-5M0.5X178T同轴	0.5	178	3.1	F7	9.3	12.8*9.6	14.4*10.6	16.9*14.14

（WP-5M0.0282X700/WP-5M0.03X540/WP-5M0.0355X500/WP-5M0.04X410/WP-5M0.046X410/WP-5M0.056X400/WP-5M0.06X398/WP-5M0.072X320/WP-5M0.08X280/WP-5M0.09X260/WP-5M0.1X250/WP-5M0.12X250/WP-5M0.138X180/WP-5M0.14X178/WP-5M0.17X160/WP-5M0.18X110/WP-5M0.18X178/WP-5M0.2X138/WP-5M0.2X150/WP-5M0.22X150/WP-5M0.24X120/WP-5M0.3X65/WP-5M0.3X110/WP-5MH0.3X110/WP-5M0.4X110/WP-5M0.5X65/WP-5M0.5X65T同轴/WP-5M0.5X178/WP-5M0.5X178T同轴大视野双侧远心镜头）

详细产品尺寸图及其他参数，请联系我们或在下载中心的产品手册自行下载！
